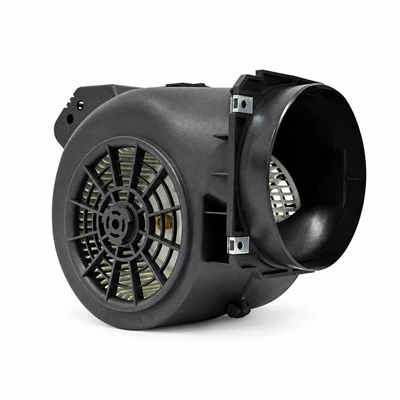

Name: China Blauberg DC-F146B-EC-V7 146mm EC Dual Inlet Centrifugal Blower Manufacturers Suppliers Factory - Blauberg
Brand: Blauberg Motoren
SKU: 315466901

Suzhou Blauberg Motoren Technology Co., Ltd. is one of the leading manufacturers and suppliers of blauberg dc-f146b-ec-v7 146mm ec dual inlet centrifugal blower in China. Welcome to buy bulk high quality customized products made in China here and get quotation from our factory. For price consultation, contact us.

Basic Info

Model	DC-F146B-EC-V7	Product Type	EC Dual Inlet Centrifugal Blower
Phase	1~	Rated Voltage	115 VAC
Voltage Range	92–138 VAC	Frequency	50/60 Hz
Nominal Speed	2850 RPM	Max. Input Power	175 W
Max. Input Current	2.6 A	Sound Level	69 dB(A)
Ambient Temperature	-25 to +60 °C	Certification	CCC, CE, RoHS
Protection	IP55	Insulation Class	Class B

Technical Description

Dimensions	229.5 × 277.3 × 229 mm	Weight	2 kg
Motor Model	EC072AC115V115W	Motor Size	72 mm
Impeller	Plastic, 59 blades	Airflow Direction	All around
Rotation	Clockwise, viewed toward rotor	Housing / Rotor	Stretched housing / blue powder-coated rotor
Mounting Position	Any position	Operating Mode	S1 continuous duty
Bearing	Ball bearing	Cable Length	500 ±20 mm
Humidity	Operation 5%–90% RH; storage 5%–95% RH	Storage Temperature	-40 to +80 °C
Electrical Safety	1800 VAC/50 Hz for 1 s; leakage ≤10 mA; touch current ≤3.5 mA	Control	0–10 VDC / PWM
Motor Protection	Locked rotor, thermal, over/undervoltage, overcurrent and soft start	Screw Strength	Class 8.8

Product Application

1	Charging Column	9	Equipment Cooling Project
2	Kitchen Smoke Exhaust System	10	Ventilation Unit Project
3	FFU Project	11	AHU Project
4	Computer Room Cooling	12	Air Purifier Project
5	Rail Transit Air-Conditioning	13	Heat Exchanger Project
6	Electrical Appliances	14	Telecom Container Project
7	FanGrid Project	15	Data Center Cooling Project
8	Ventilation Equipment Project	16	Industrial Cooling System

Air Performance

DC-F146B-EC-V7 Air Performance

Overall Dimensions

DC-F146B-EC-V7 Overall Dimensions

Electrical Connection

DC-F146B-EC-V7 Electrical Connection

Line	Conn.	Designation	Colour	Function / Assignment
Power Line		PE	Green/Yellow	Protective earth
Power Line	U1	L	Brown	Mains power supply, live conductor
Power Line	U2	N	Blue	Mains power supply, neutral conductor
Control Line	U4	+10 V	Red	Fixed 10 VDC output, ±5%, max. 10 mA; external device supply; SELV
Control Line	U5	Speed Control	Yellow	0–10 V/PWM input; maximum PWM amplitude 10 V; SELV
Control Line	U6	Signal Feedback	White	Tach output, 2 pulses/revolution; customisable or convertible to RD signal; SELV
Control Line	U7	GND	Blue	Reference ground for control interface; SELV

Speed Control Settings

Control Method	Operating Condition
Full speed	Short the red (+10 V) and yellow (speed-control) conductors.
0–10 VDC	Motor starts above 1.0 V and stops below 0.5 V.
PWM	Frequency 1–10 kHz; recommended amplitude 10 V ±5%. Motor starts above 10% duty and stops below 5% duty.
Potentiometer	A 10 kΩ potentiometer is recommended.

Note

1	Connect the power and control conductors strictly according to the wiring diagram.
2	Do not connect the white signal conductor directly to the red conductor or to an external DC power supply.
3	If the blower does not start, check the speed-control input and prevent injury from an unexpected start; do not touch the impeller or rotor while energised.
4	Startup may take several seconds. Do not touch the impeller or rotor while energised or operating at low speed.
5	Persons lacking appropriate physical, sensory or mental capability or experience must use the blower only under responsible supervision. Keep children away.
6	A damaged power cable must be replaced by the manufacturer.
7	The motor must not be operated alone without an impeller or load.
8	For storage after unpacking, repack the product and keep it at -40 to +80 °C, RH ≤95%, in a clean ventilated area free of corrosive gases and at least 15 cm above the floor.
9	Read this technical specification carefully before use.
