Name: China 160mm Dc Blower Impeller Centrifugal Fan forward Curved for Air Handling Units Manufacturers Suppliers Factory - Blauberg Motoren
Brand: Blauberg Motoren
SKU: 304983008

160mm Dc Blower Impeller Centrifugal Fan forward Curved for Air Handling Units

Certificate:UL,CE,ROHS,CCC,ISO;
Supply Ability: 400,000 pcs per year;
MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.
HS Code:8414593000

Send Inquiry

MOQ:100 pcs· Standard lead time:15-25 days· Engineering sample.7-10 datys

Suzhou Blauberg Motoren Technology Co., Ltd. is one of the leading manufacturers and suppliers of 160mm dc blower impeller centrifugal fan forward curved for air handling units in China. Welcome to buy bulk high quality customized products made in China here and get quotation from our factory. For price consultation, contact us.

Basic Info

Model No.	SN-F160B-EC-01	Flow Direction	Centrifugal
Pressure	MediumPressure	Remote Control	Without Remote Control
Usage	For Experiment,for Air Conditioner,for Manufacture	Fan Type	DC Single Inlet Blower
Package	Pallet	Package Size	110110110cm
Trademark	Blauberg	Origin	China
HS Code	8414593000	Production Capacity	50000/year

Technical Description

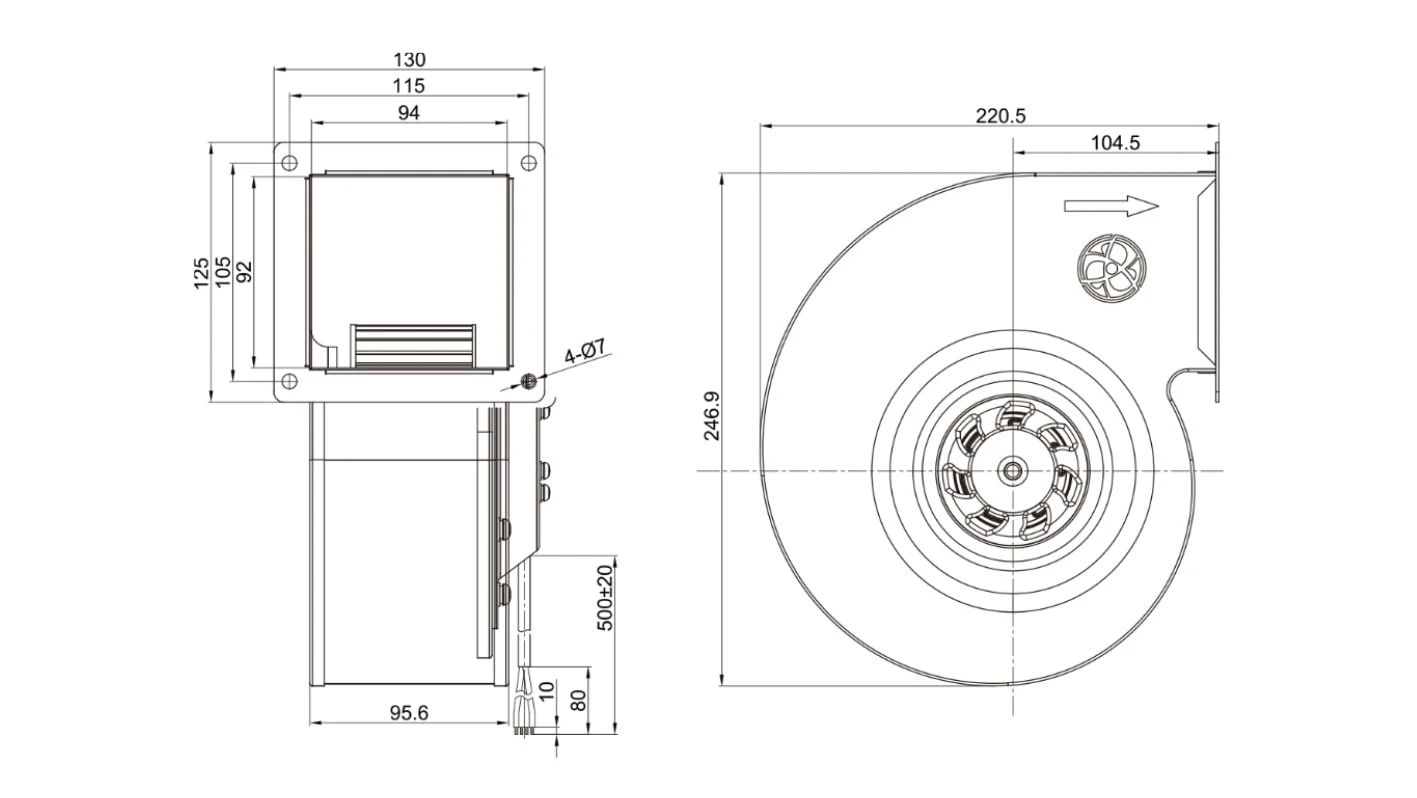

Dimension:	246.9220.5130 mm	Mode of operation:	S1
Materials Impeller:	Metal	Bearing:	ball bearings
Materials Housing:	Steet steel	Motor protection:	self-resetting TOP wired internally
Direction of rotation :	clockwise,seen on rotor	Air Flow:	364.91 CFM/ 620M³/H
Number of Blades:	38	Static Pressure:	3.77 inH2O / 940 Pa
Speed Control:	0-10V DC/PWM	Life Expectance:	50,000 Hours(L10)
Operating Voltage:	310 VDC	Operating Humidity:	5%-90% RH
Type of protection:	IP55	Signal Output:	FG (Frequency Generator)
Insulation class:	B	Authentication:	UL,CE,ROHS,CCC,ISO

Product Application

1	Charging Column	9	Equipments Cooling Project
2	Kitchen smoke exhaust system	10	Ventilation Unit Project
3	FFU Project	11	AHU(Air Handing Unit)Project
4	Computer room cooling	12	Air Purifier Project
5	Air-conditioned fan for rail transit carriers	13	Heater Exchanger Project
6	Electrical appliances	14	Telecom Container Project
7	FanGrid Project	15	Data Center Cooling Project
8	Ventilation Equipments Project	16
