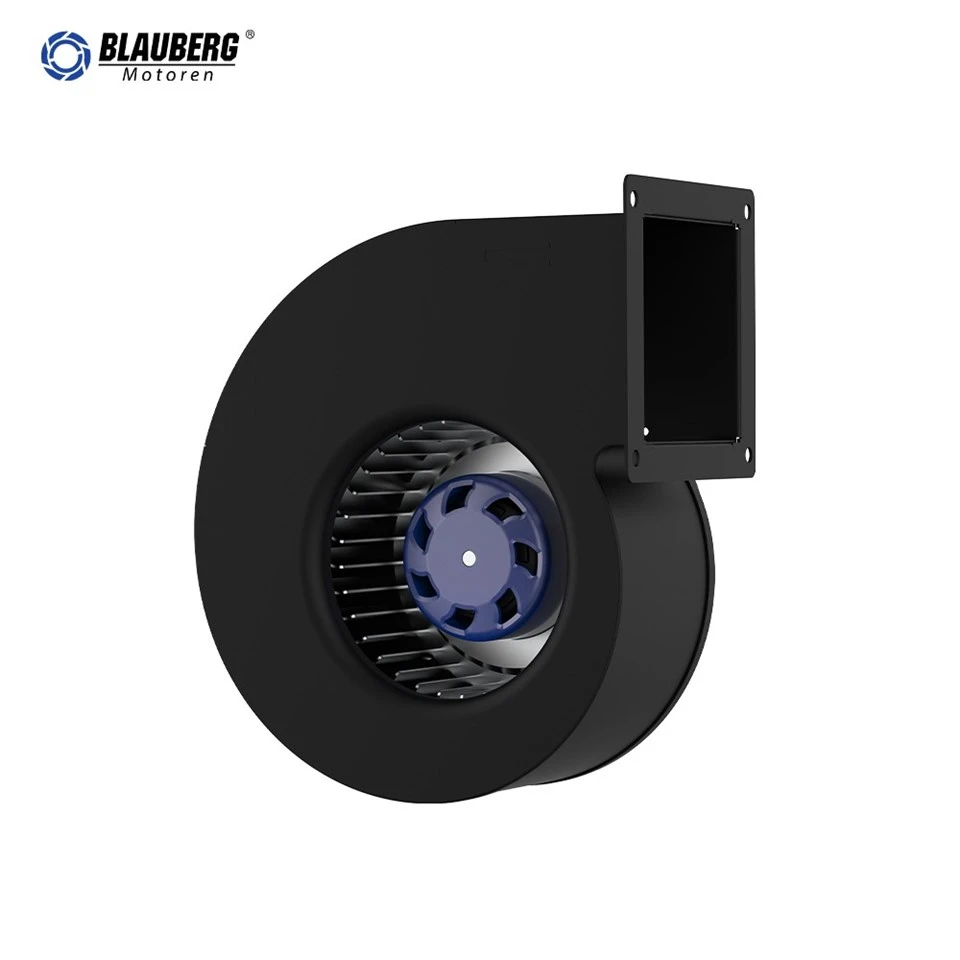

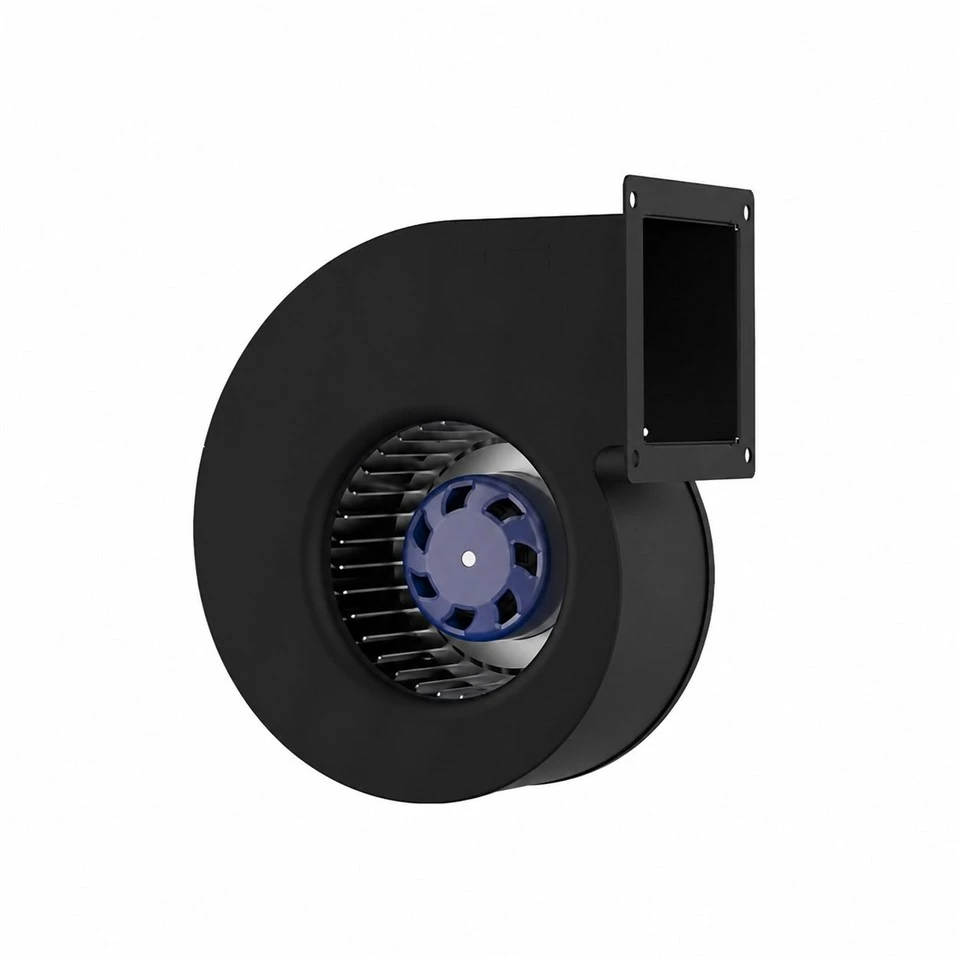

SC-F140B-EC-02 140mm EC Single Inlet Centrifugal Blower
The SC-F140B-EC-02 is a compact, high-efficiency EC single inlet centrifugal blower for ventilation, equipment cooling and air-handling applications. Its external-rotor EC motor supports 0-10 VDC/PWM speed control and tachometer feedback.
Basic Info
| Model | SC-F140B-EC-02 | Product Type | EC single inlet centrifugal blower |
| Motor | External-rotor EC motor | Impeller | Forward-curved metal impeller |
| Control | 0-10 VDC / PWM | Feedback | FG tachometer output, 2 pulses/revolution |
Rated Data
| Phase | 1~ | Rated Voltage | 115 VAC |
| Frequency | 50/60 Hz | Rated Speed | 2060+/-5% RPM |
| Max. Input Power | 115 W | Max. Input Current | 0.85 A |
| Sound Level | 75 dB(A) | Ambient Temperature | -25 deg C to +60 deg C |
Technical Description
| Fan Size (LxWxH) | 246.9x220.5x130 mm | Motor Size | 72 |
| Impeller Material | Metal | Rotation | Clockwise, viewed toward rotor |
| Rotor Surface Treatment | Plastic spraying | Degree of Protection | IP55 |
| Insulation Class | Class B | Operating Mode | S1 |
| Bearing | Ball bearing | Installation Position | Any |
| Transport / Storage Temperature | -40 deg C to +80 deg C | Cable Length | 500+/-20 mm |
| Operating Humidity | 5%-90% RH | Storage Humidity | 5%-95% RH |
| Control Input | 0-10 VDC / PWM, recommended PWM amplitude 10 VDC | Voltage Output | 10 VDC, max. 10 mA |
| Protection Functions | Locked-rotor, thermal, overvoltage, undervoltage and overcurrent protection; soft start | Conformity | CCC, CE, RoHS |
Product Application
| 1 | Charging Column | 9 | Equipment Cooling Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Ventilation Unit Project |
| 3 | FFU Project | 11 | AHU Project |
| 4 | Computer Room Cooling | 12 | Air Purifier Project |
| 5 | Rail Transit Air-Conditioning | 13 | Heat Exchanger Project |
| 6 | Electrical Appliances | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Cooling Project |
| 8 | Ventilation Equipment Project | 16 | Industrial Cooling System |

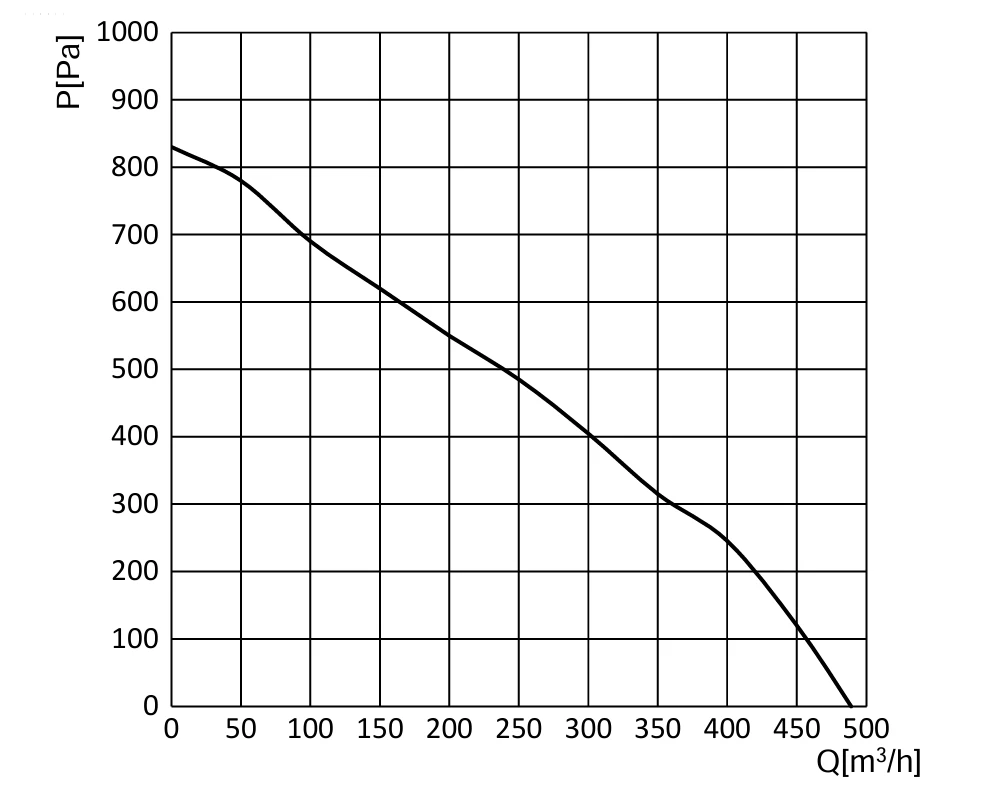

Air Performance
Air performance is measured according to AMCA 210 / GB/T 1236. Values are valid under the specified measuring conditions and may vary with installation conditions.

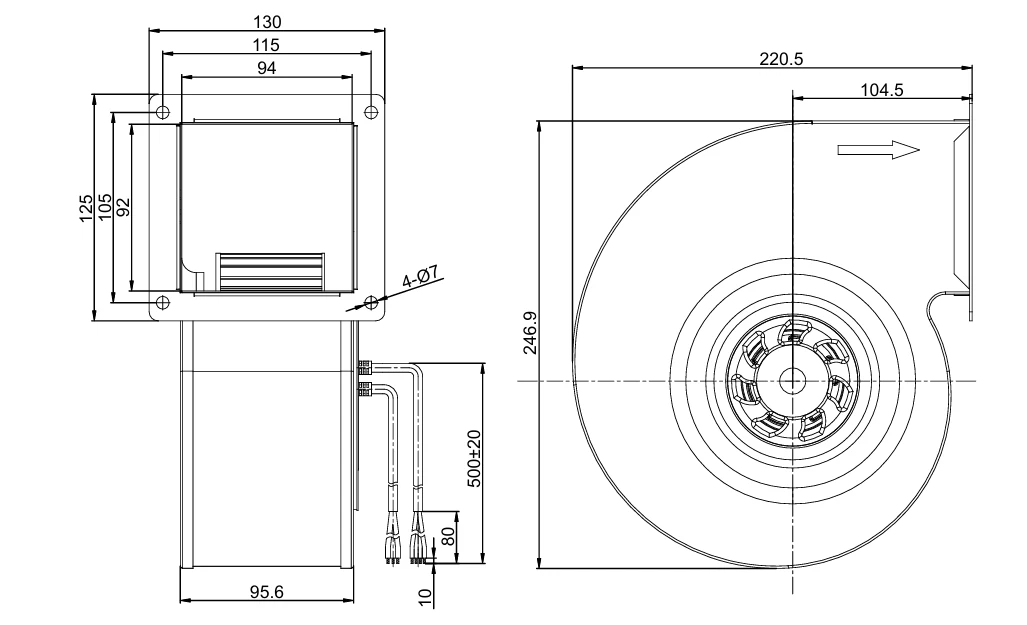

Overall Dimensions
| 1 | AC Cable PVC 3xAWG20 |
| 2 | DC Cable PVC 4xAWG24 |
Electrical Connection
| Line | Connection | Colour | Function / Assignment |
| Power | U1 / L | Brown | Live power supply |
| Power | U2 / N | Blue | Neutral power supply |
| Power | PE | Green / Yellow | Protective earth |
| Control | U4 / +10V | Red | 10 VDC output, max. 10 mA |
| Control | U5 / 0-10V/PWM | Yellow | Speed-control input |
| Control | U6 / FG | White | Tachometer output, 2 pulses/revolution |
| Control | U7 / GND | Blue | Reference ground |
