Basic Info

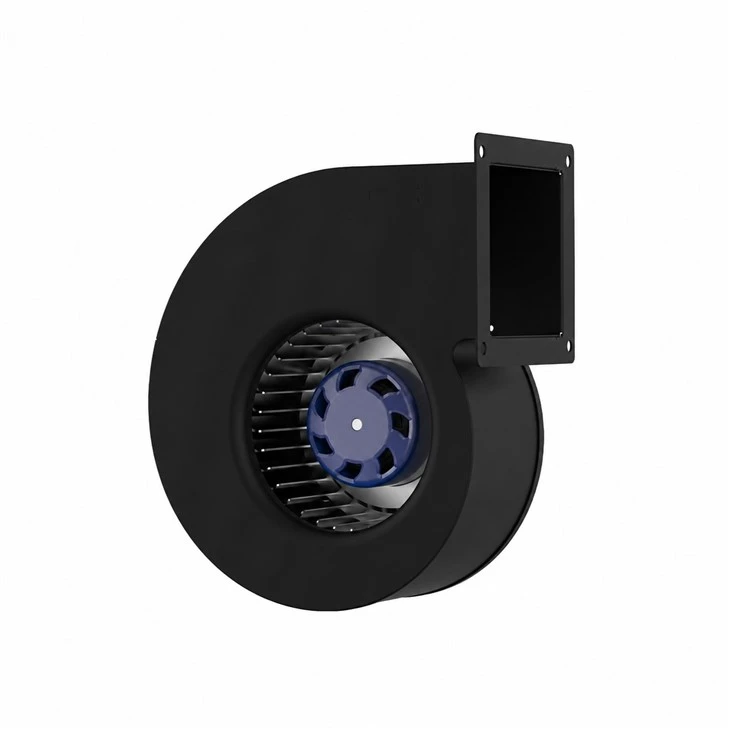

The Blauberg SD-F120B-EC-N02 is a compact 120 mm DC single inlet centrifugal blower designed for reliable airflow in ventilation, cooling and equipment applications. Its energy-efficient EC motor supports precise external speed control.
| Model | SD-F120B-EC-N02 | Rated Voltage | 24 VDC |
| Maximum Airflow | 380 m³/h | Maximum Static Pressure | 790 Pa |
| Overall Dimensions | 171.5 × 180 × 115 mm | Speed Control | 0–10 V / PWM |
| Motor Type | EC brushless motor | Speed Feedback | FG output |
Technical Description
This single inlet centrifugal blower combines a high-efficiency centrifugal impeller with a brushless EC motor for continuous-duty operation. It supports 0–10 V or PWM speed control and provides an FG speed-feedback signal for system monitoring.
| Motor Type | EC brushless motor | Degree of Protection | IP55 |
| Insulation Class | Class B | Duty Type | S1 continuous duty |
| Bearing Type | Ball bearing | Speed Control | 0–10 V / PWM |
| Speed Feedback | FG output | Lead Wire Length | 500 mm standard |
| Electrical Connection | Refer to connection drawing | Rated Voltage | 24 VDC |
| Maximum Airflow | 380 m³/h | Maximum Static Pressure | 790 Pa |
Product Application
| 1 | Charging Column | 9 | Equipment Cooling Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Ventilation Unit Project |
| 3 | FFU Project | 11 | AHU Project |
| 4 | Computer Room Cooling | 12 | Air Purifier Project |
| 5 | Rail Transit Air-Conditioning | 13 | Heat Exchanger Project |
| 6 | Electrical Appliances | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Cooling Project |
| 8 | Ventilation Equipment Project | 16 | Industrial Cooling System |
Air Performance

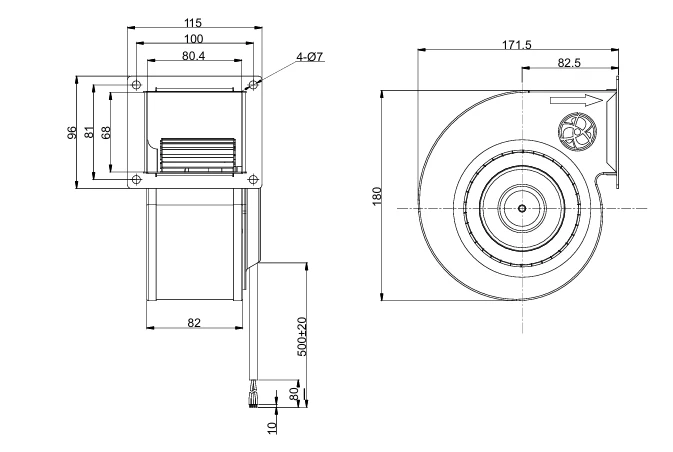

Overal Dimmensions
Electrical Connection
Download
SD-F120B-EC-N02 Technical Specification PDF
