Suzhou Blauberg Motoren Technology Co., Ltd. is one of the leading manufacturers and suppliers of blauberg sl-f140b-ec-00 140mm ec single inlet centrifugal blower in China. Welcome to buy bulk high quality customized products made in China here and get quotation from our factory. For price consultation, contact us.
Basic Info
| Model | SL-F140B-EC-00 | Product Type | EC Single Inlet Centrifugal Blower |
| Brand | Blauberg | Place of Origin | Germany |
| Certification | CCC, CE | Compliance | RoHS |
Rated Data
| Phase | 1~ | Rated Voltage | 230 VAC |
| Frequency | 50/60 Hz | Rated Speed | 1860 RPM |
| Maximum Input Power | 85 W | Maximum Input Current | 0.62 A |
| Sound Level | 72 dBA | Ambient Temperature | -25 to +60 deg C |
Technical Description
| Motor Type | External rotor EC motor | Duty | S1 |
| Protection Class | IP55 | Insulation Class | Class B |
| Bearing | Ball bearing | Impeller Material | Metal |
| Rotation | Clockwise, seen on rotor | Rotor Surface | Plastic spraying |
| Protection Functions | Locked rotor, thermal, under/overvoltage, overcurrent and soft start protection | ||
| Cable Length | 500+/-20 mm | Humidity | 5%-90% RH |
| Impeller Deviation | Axial and radial deviation <=0.5 mm | ||
| Overall Dimensions | 246.9 x 220.5 x 130 mm | ||
Product Application
| 1 | Charging Column | 9 | Equipment Cooling Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Ventilation Unit Project |
| 3 | FFU Project | 11 | AHU Project |
| 4 | Computer Room Cooling | 12 | Air Purifier Project |
| 5 | Rail Transit Air-Conditioning | 13 | Heat Exchanger Project |
| 6 | Electrical Appliances | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Cooling Project |
| 8 | Ventilation Equipment Project | 16 | Industrial Cooling System |

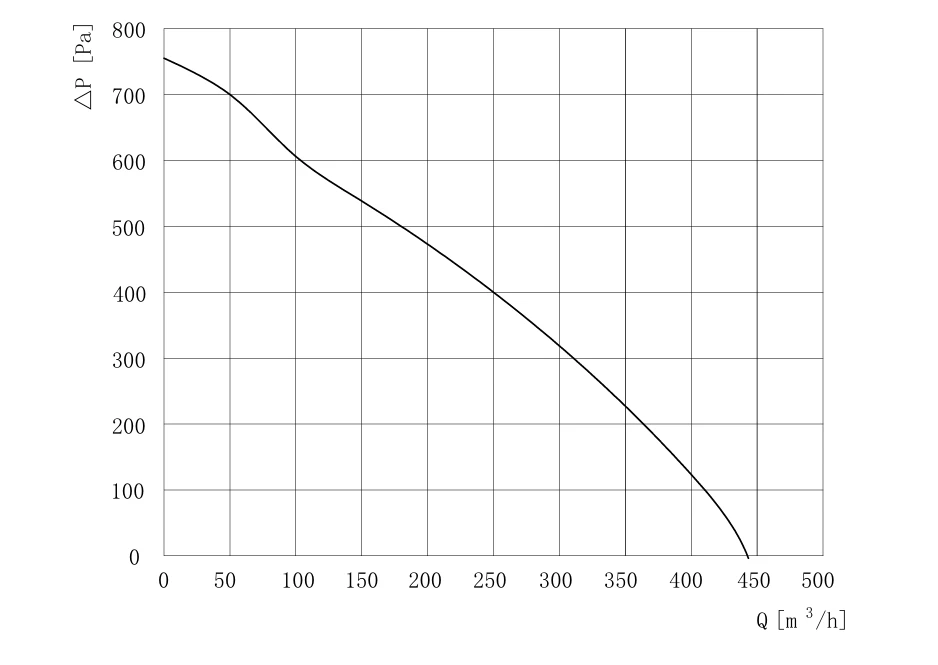

Air Performance
Overall Dimensions
Electrical Connection
| Terminal | Wire / Function | Description |
|---|---|---|
| PE | Green/Yellow | Protective Earth |
| U1 / L | Brown | Live |
| U2 / N | Blue | Neutral |
| U4 / +10V | Red | External output +10VDC |
| U5 / 0-10V PWM | Yellow | Speed control, maximum 10V |
| U6 / FG | White | Speed feedback, 2 pulses/revolution |
| U7 / GND | Blue | Signal ground |
Download
SL-F140B-EC-00 Product Specification.pdf
