Name: China 133mm 115V CE Approval EC Backward Curved Centrifugal Fan Manufacturers Suppliers Factory - Blauberg Motoren
Brand: Blauberg Motoren
SKU: 304633881

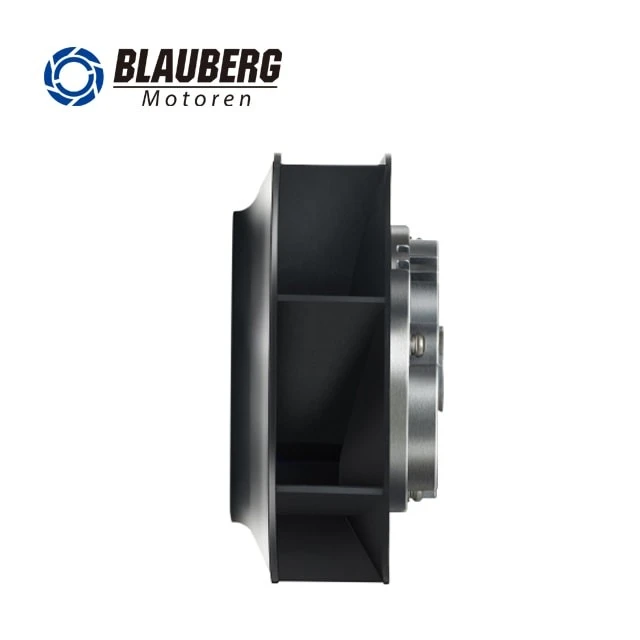

133mm 115V CE Approval EC Backward Curved Centrifugal Fan

BLAUBERG FOCUS ON CENTRIFUGAL FAN ONLY. Certificate:
UL,CE,ROHS,CCC,ISO; Supply Ability: 400,000 pcs per year;
MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.
HS Code:8414593000

Send Inquiry

MOQ:100 pcs· Standard lead time:15-25 days· Engineering sample.7-10 datys

Suzhou Blauberg Motoren Technology Co., Ltd. is one of the leading manufacturers and suppliers of 133mm 115v ce approval ec backward curved centrifugal fan in China. Welcome to buy bulk high quality customized products made in China here and get quotation from our factory. For price consultation, contact us.

Basic Info

Model No.	BC-B133B-EC-03	Flow Direction	Centrifugal
Pressure	Low Pressure	Remote Control	Without Remote Control
Usage	For Experiment,for Air Conditioner,for Manufacture	Fan Type	EC Backward Centrifugal Fan
Package	Pallet	Package Size	110110110cm
Trademark	Blauberg	Origin	China
HS Code	8414593000	Production Capacity	50000/year

Technical Description

Dimension:	13313364.8mm	Mode of operation:	S1
Materials Impeller:	PA6+GF	Bearing:	ball bearings
Materials Housing:	SPCC+S45C	Motor protection:	self-resetting TOP wired internally

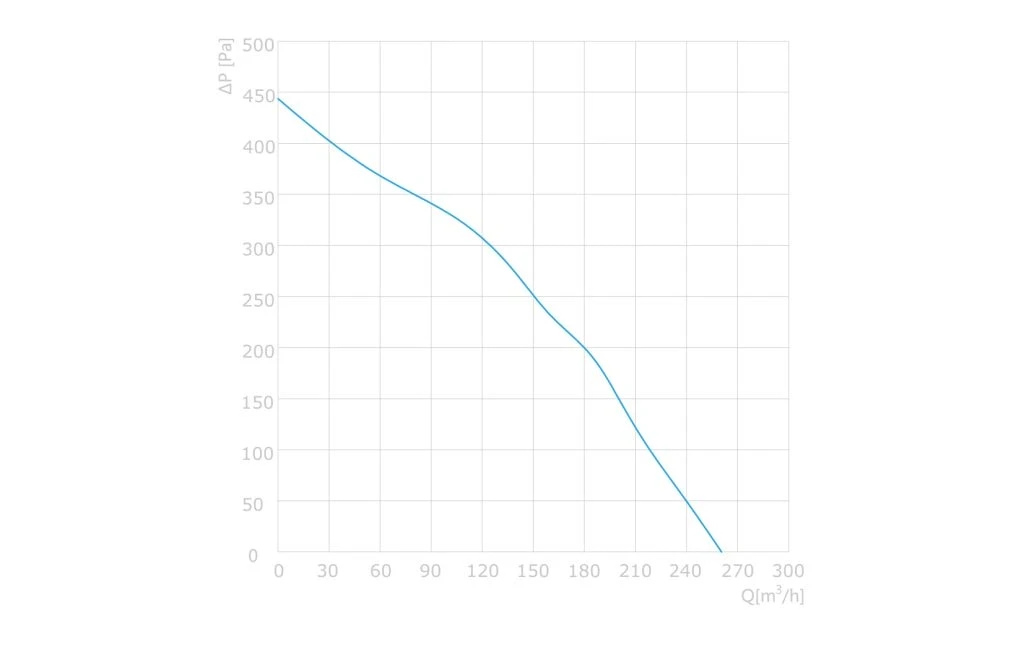

Direction of rotation :	clockwise,seen on rotor	Air Flow:	159.09CFM/ 255 M³/H
Number of Blades:	7	Static Pressure:	1.78 inH2O / 445 Pa
Speed Control:	0-10V DC/PWM	Life Expectance:	50,000 Hours(L10)
Operating Voltage:	115 VAC	Operating Humidity:	5%-90% RH
Type of protection:	IP55	Signal Output:	FG (Frequency Generator)
Insulation class:	B	Authentication:	UL,CE,ROHS,CCC,ISO

Product Application

1	Ventilation & Purification	7	Automobile Industry
2	Air Conditioning	8	Household Electric Appliances
3	Cold Storage and Cold Chain	9	Cloud Date Center
4	IT & Electronic Industry	10	Mechanical Equipment and Systems
5	Medical Industry	11	Energy-saving & Intelligent Retrofitting
6	Heating
