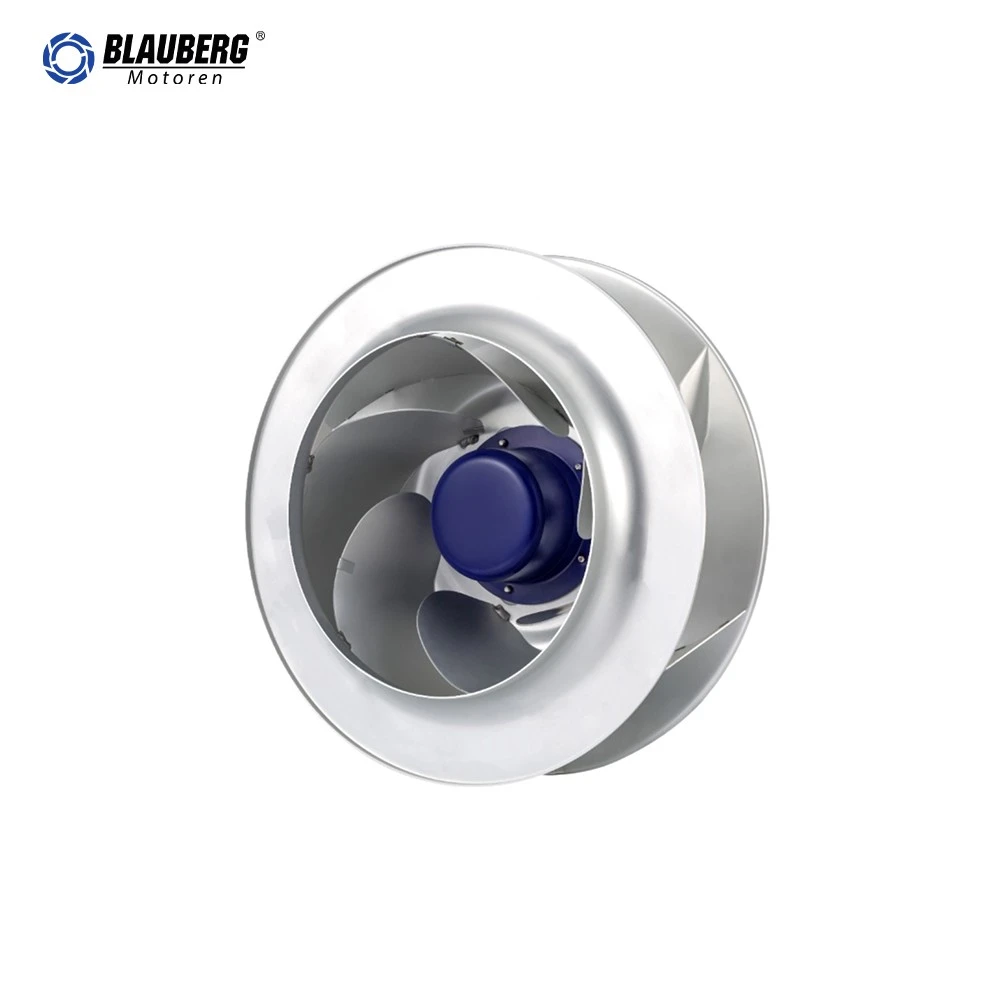

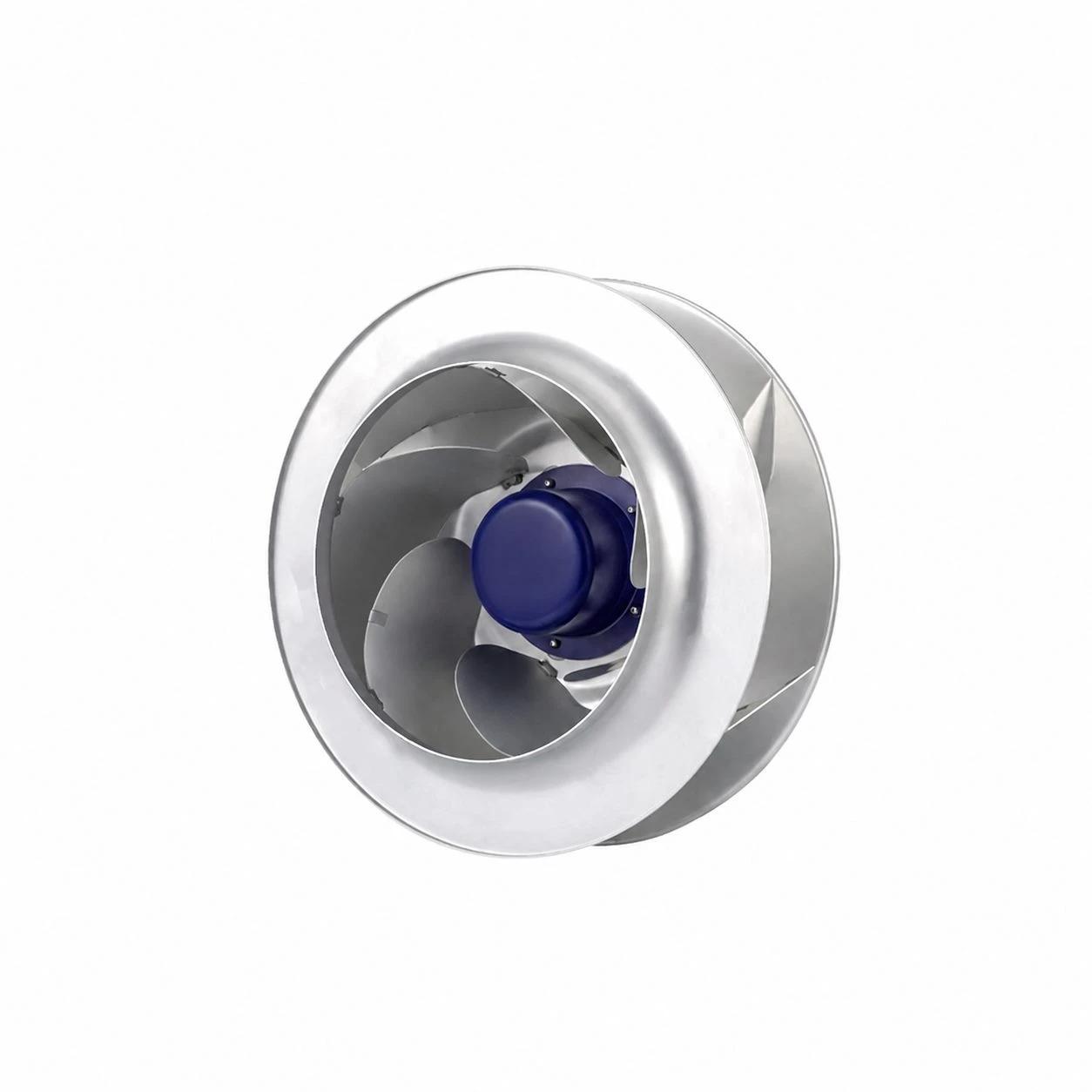

Basic Info
| Model | BC-B310C-EC-F05 | Fan Type | Backward Curved Centrifugal Fan |
| Nominal Diameter | 310 mm | Motor Type | External Rotor EC Motor |
| Phase | Single Phase | Rated Voltage | 115 VAC |
| Frequency | 50/60 Hz | Rated Speed | 2500 RPM |
| Maximum Input Power | 380 W | Maximum Input Current | 3.4 A |
| Sound Level | 82 dB(A) | Ambient Temperature | -25 to +60 °C |

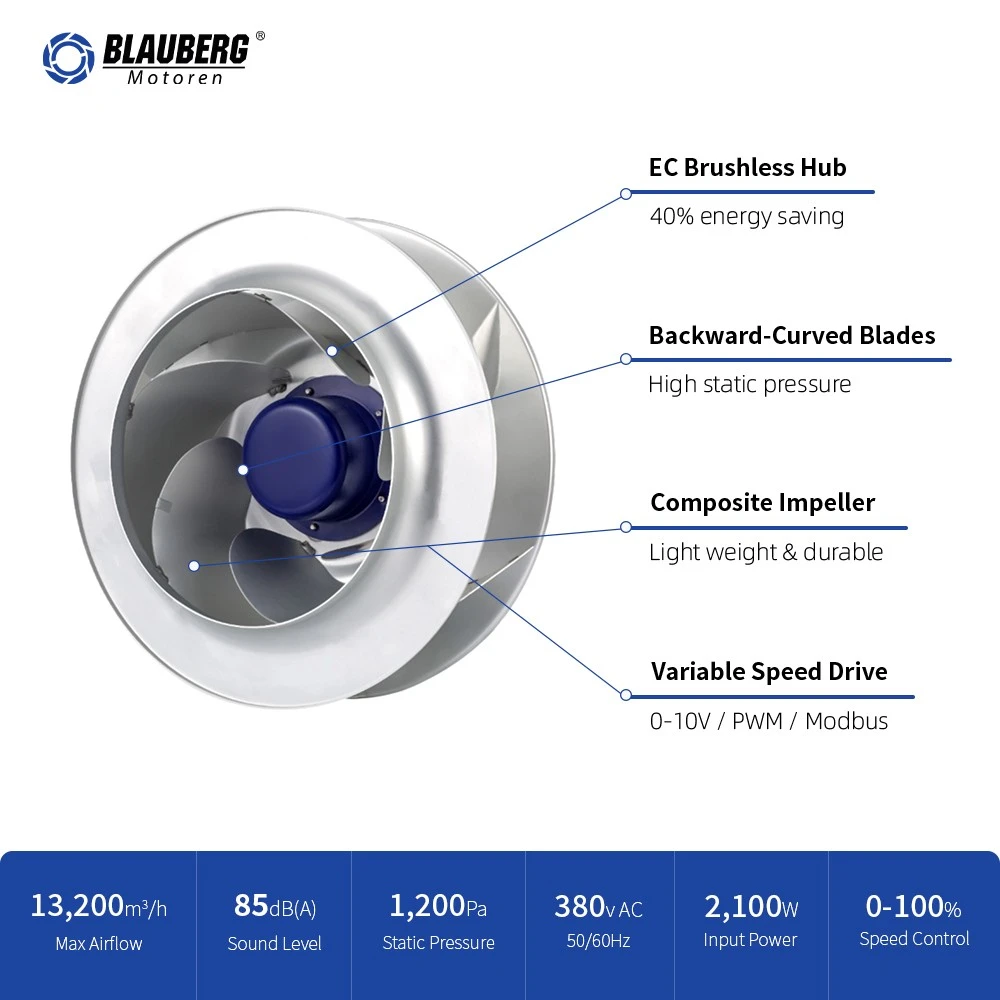

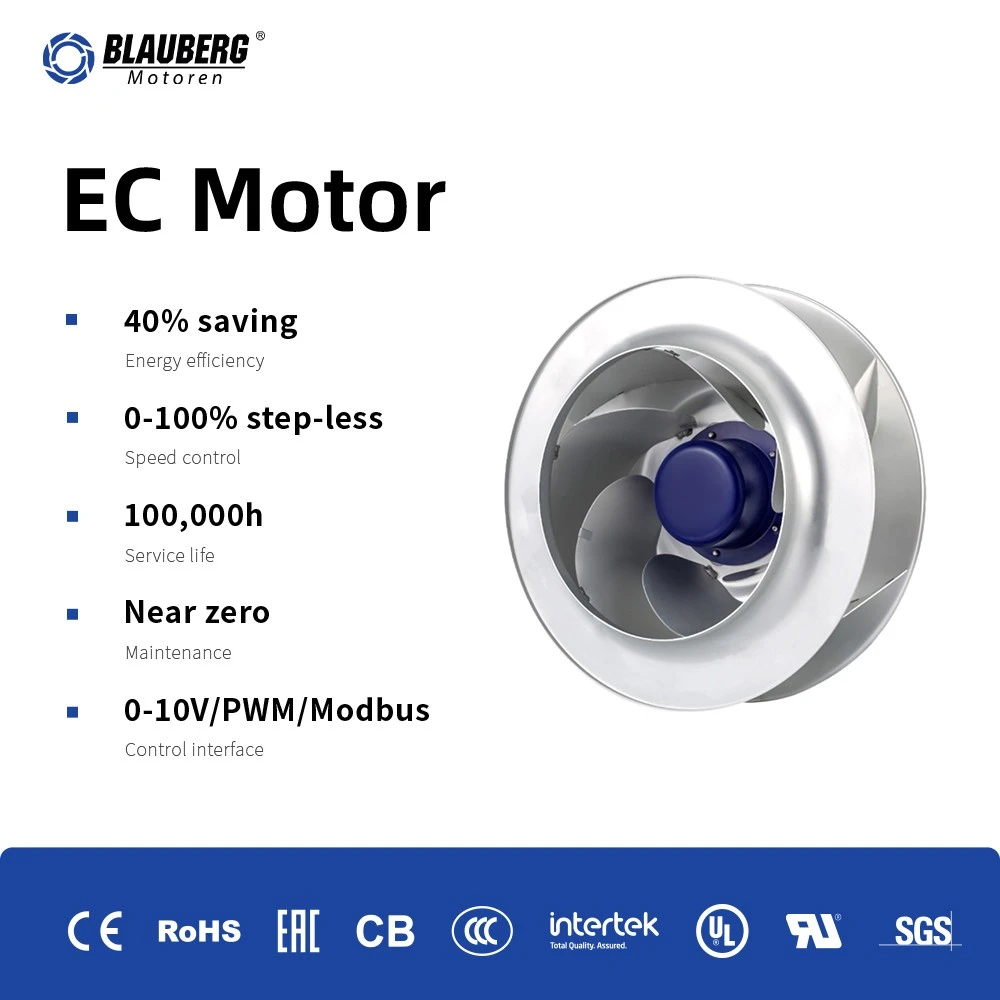

Technical Description
| Model | BC-B310C-EC-F05 | Dimensions | 316 × 316 × 167.2 mm |
| Motor | External rotor EC motor | Impeller Material | Metal |
| Number of Blades | 6 | Direction of Rotation | Clockwise viewed toward rotor |
| Airflow Direction | All around | Rotor Surface | Plastic spraying |
| Rotor Housing | Stretch | Degree of Protection | IP44 |
| Insulation Class | F | Operating Mode | S1 |
| Bearing | Ball bearing | Installation Position | Any |
| Cable Length | 500 ± 20 mm | Control | RS485 / 0–10 VDC / PWM |
| Speed Feedback | FG, 5 pulses per revolution | Certification | CCC, CE, RoHS |
| Release Date | 16 January 2024 | Weight | Not specified |
Product Application
| 1 | Charging Column | 9 | Equipment Cooling Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Ventilation Unit Project |
| 3 | FFU Project | 11 | AHU Project |
| 4 | Computer Room Cooling | 12 | Air Purifier Project |
| 5 | Rail Transit Air-Conditioning | 13 | Heat Exchanger Project |
| 6 | Electrical Appliances | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Cooling Project |
| 8 | Ventilation Equipment Project | 16 | Industrial Cooling System |

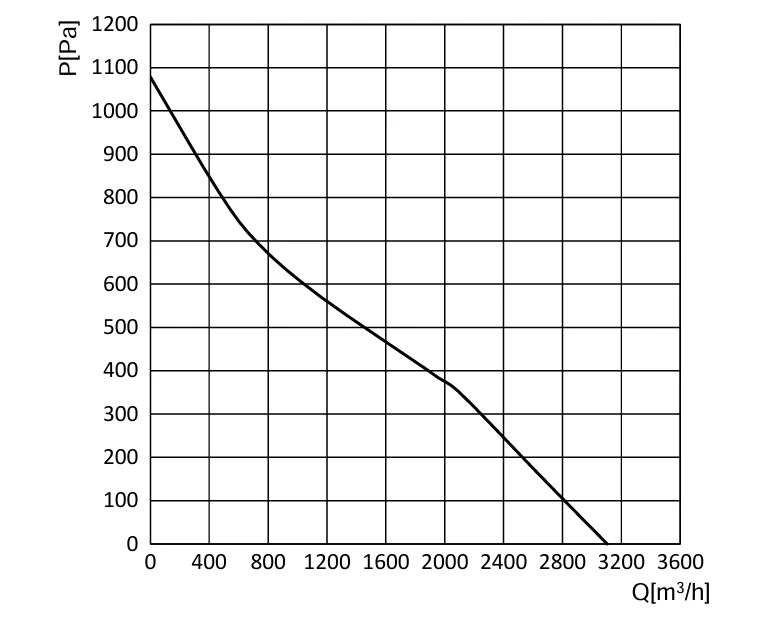

Air Performance

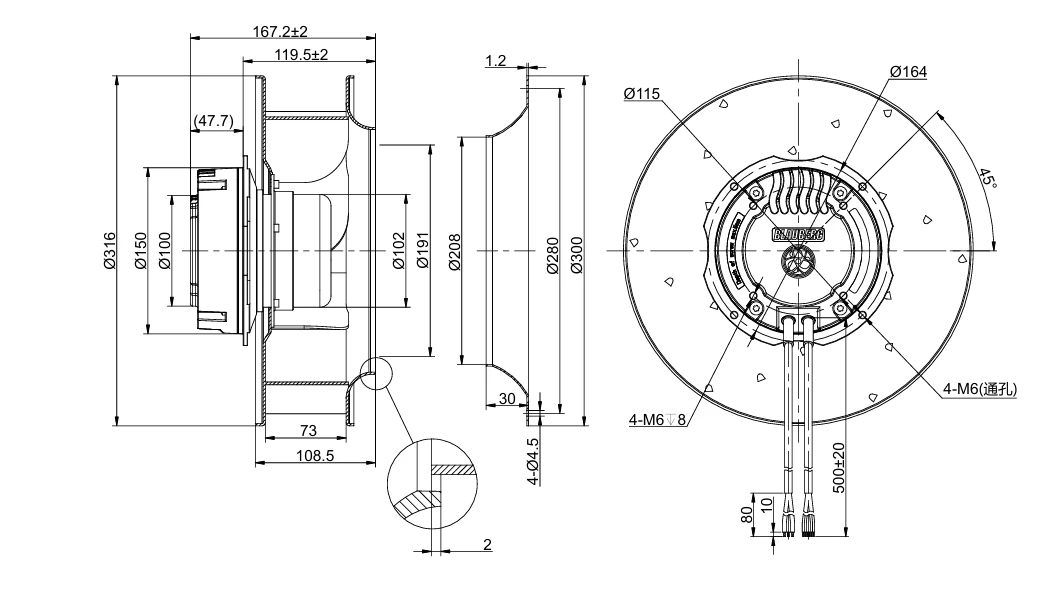

Overall Dimensions
Electrical Connection
| Line | Connection | Colour | Function | |
| Power Line | PE | Green Yellow | Protective Earth | |
| U1 | L | Brown | Live Wire | |
| U2 | N | Black | Neutral Wire | |
| Control Line | U3 | RSA | Brown | RS485 Port |
| U4 | RSB | Gray | RS485 Port | |
| U5 | Speed Control | Yellow | 0~10V & PWM Compatible Line (PWM Max. Value 10V) |
|
| U6 | Signal Feedback | White | RPM Output Signal Line 5 Pulses/Revolution |
|
| U7 | +10V | Red | External Output +10VDC | |
| U8 | GND | Blue | GND | |
The fan provides a speed output signal, output signal drawing see under annex. Vfg and pull up resistor are connected by customer. Vfg=(3–30)VDC, R≥1000×(Vfg)Ω.
Tacho Signal Output: IC, Rb1, Rb2, Rfg, Vce, Vfg, GND and Qa.
Download
Download BC-B310C-EC-F05 Product Specification
