Basic Info

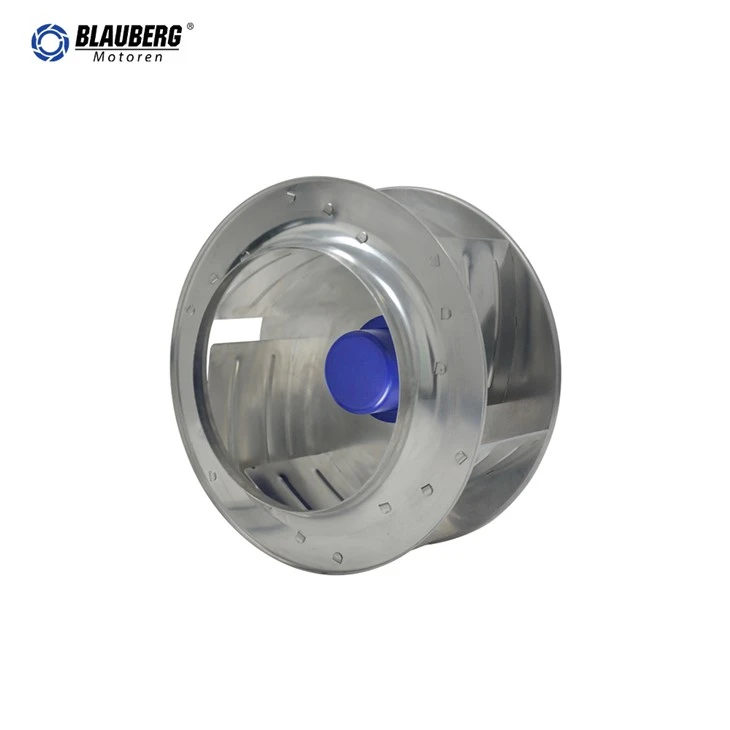

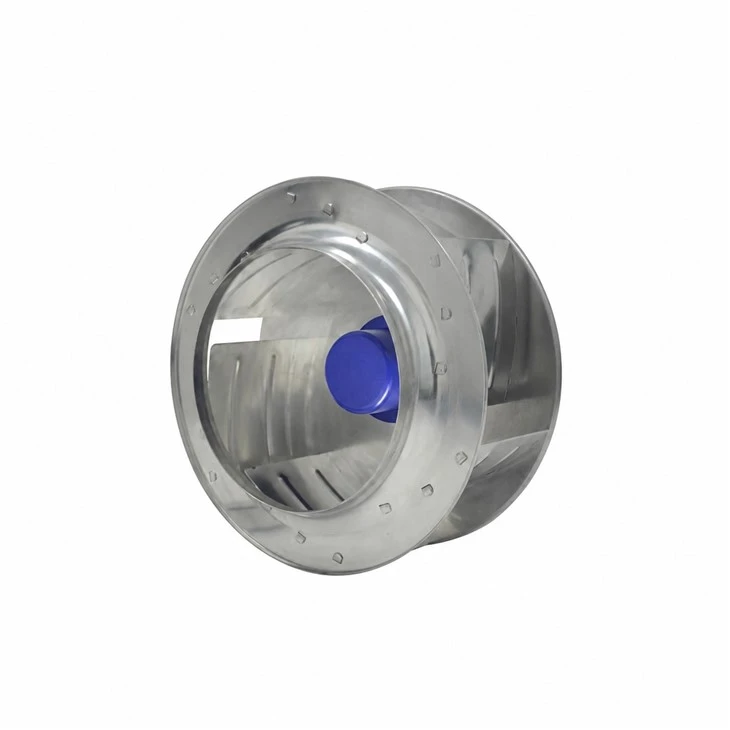

The Blauberg BE-B400H-EC-05 is a 400 mm DC backward centrifugal fan designed for efficient, controllable airflow in demanding ventilation and equipment-cooling systems.
| Model | BE-B400H-EC-05 | Rated Voltage | 48 VDC (36-57 VDC range) |
|---|---|---|---|
| Rated Speed | 1360 RPM | Input Power | 310 W |
| Input Current | 6.5 A | Sound Level | 76 dB(A) |
| Dimensions | 404 × 404 × 192.5 mm | Operating Temperature | -25 to +60 °C |
Technical Description

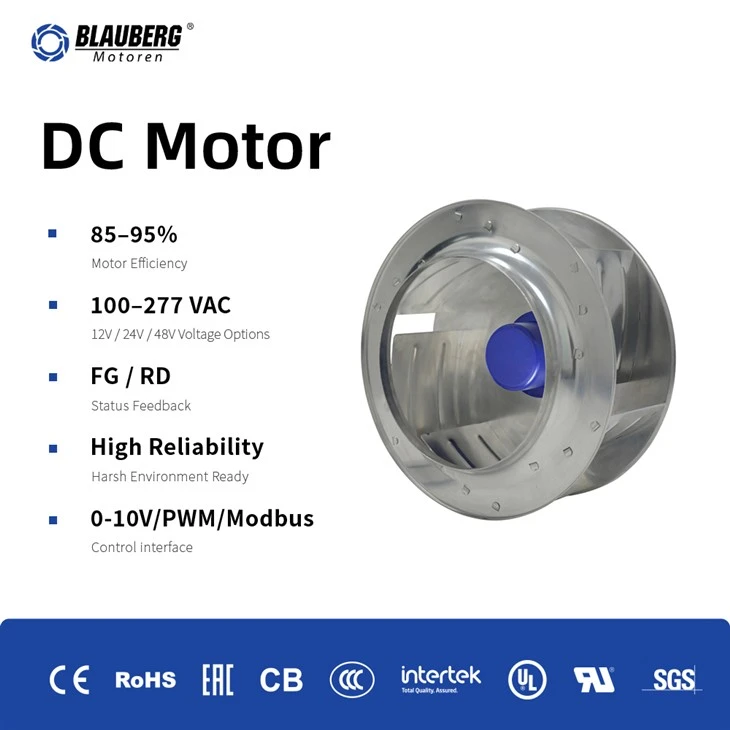

This backward-curved centrifugal fan combines a high-efficiency EC motor with 0-10 VDC or PWM speed control. Its aluminum alloy impeller with 6 blades rotates clockwise when viewed toward the rotor. Continuous-duty construction, ball bearings and IP44 protection support reliable industrial operation.
| Impeller Material | Aluminum alloy | Number of Blades | 6 |
|---|---|---|---|
| Rotation | Clockwise, viewed toward rotor | Protection Class | IP44 |
| Insulation Class | Class B | Duty | S1 continuous |
| Bearing | Ball bearing | Control | 0-10 VDC / PWM |
| Feedback | FG speed signal | Cable Length | 500 ±20 mm |
| Connection | 4-wire | Airflow / Static Pressure | Approx. 4300 m³/h / 690 Pa |
Product Application
Typical applications are listed below.
| 1 | Charging Column | 9 | Equipment Cooling Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Ventilation Unit Project |
| 3 | FFU Project | 11 | AHU Project |
| 4 | Computer Room Cooling | 12 | Air Purifier Project |
| 5 | Rail Transit Air-Conditioning | 13 | Heat Exchanger Project |
| 6 | Electrical Appliances | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Cooling Project |
| 8 | Ventilation Equipment Project | 16 | Industrial Cooling System |
Air Performance

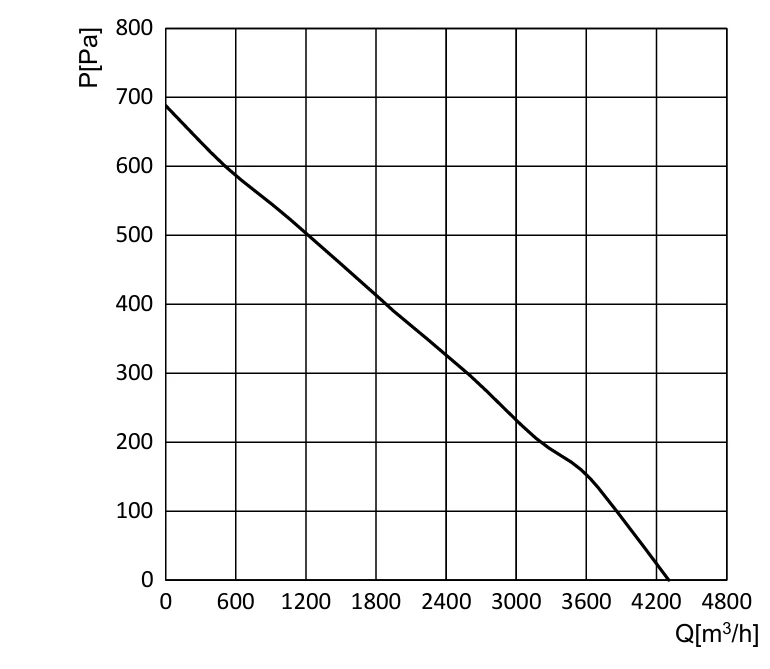

The performance curve shows a maximum airflow of approximately 4300 m³/h and a maximum static pressure of approximately 690 Pa. Actual operating points depend on system resistance.
Overal Dimmensions

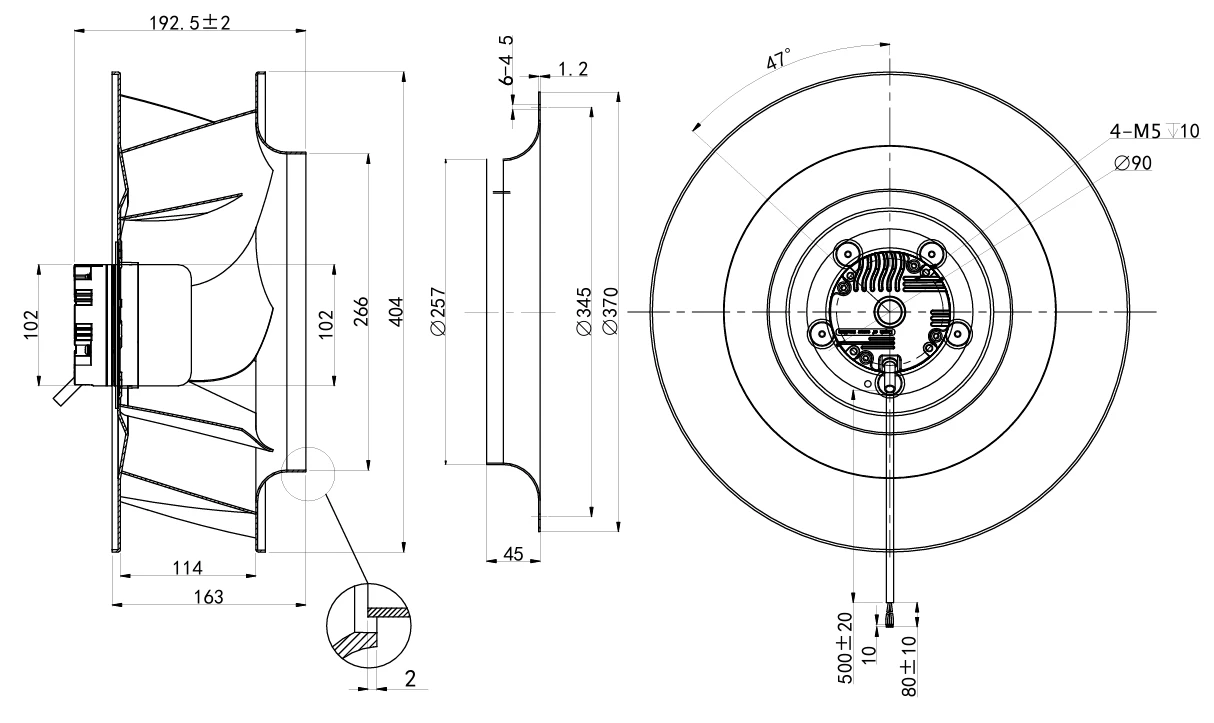

The fan envelope is approximately 404 × 404 × 192.5 mm. Refer to the drawing for mounting-hole locations, inlet geometry, cable routing and dimensional tolerances.
Electrical Connection
Four-wire connection: U1 positive supply, U2 GND, U3 0-10 VDC/PWM speed-control input and U4 FG speed-feedback output. Confirm polarity and the rated 48 VDC supply before energizing.
Download
Download BE-B400H-EC-05 Technical Specification PDF
