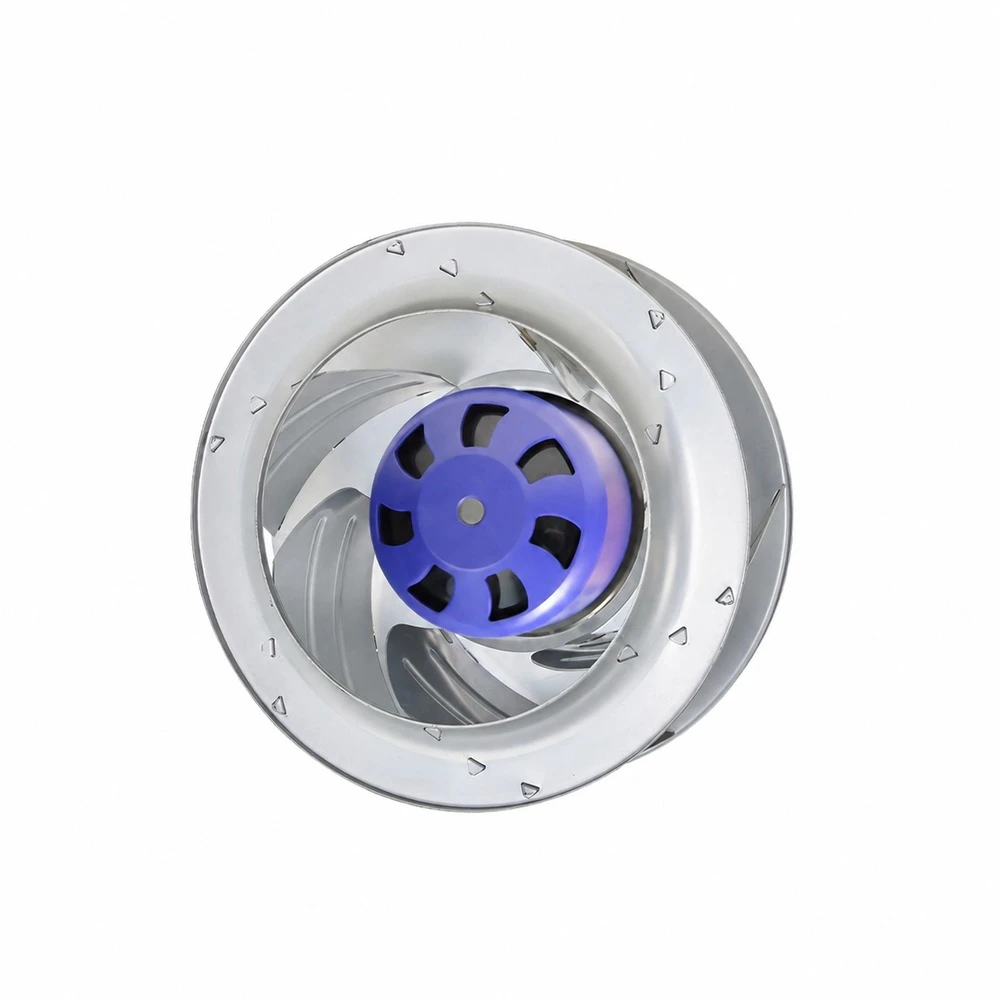

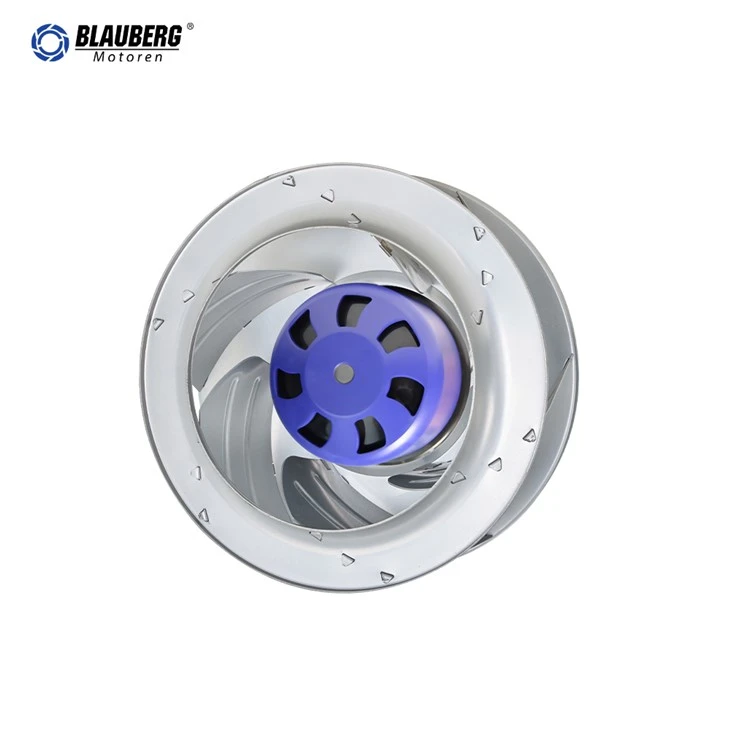

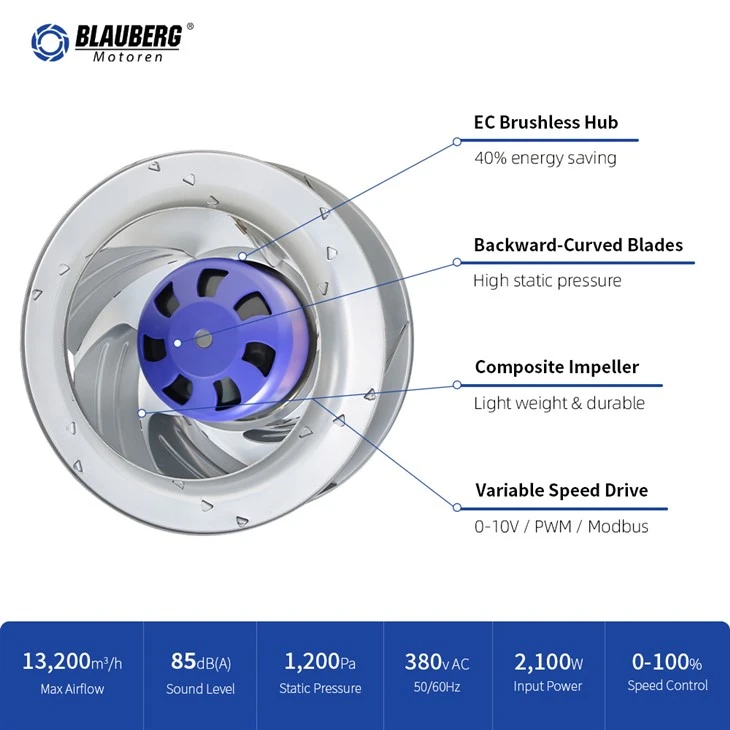

Basic Info
| Model | BL-B310C-EC-07 | Fan Type | Backward Curved Centrifugal Fan |
| Nominal Diameter | 310 mm | Motor Type | External Rotor EC Motor |
| Phase | Single Phase | Nominal Voltage | 230 VAC |
| Nominal Voltage Range | 184–276 VAC | Frequency | 50/60 Hz |
| Nominal Speed | 2050 ± 5% RPM | Maximum Input Power | 220 W |
| Maximum Input Current | 1.55 A | Sound Level | 78 dB(A) |
| Ambient Temperature | -25 to +60 °C | Data Condition | Free Air |
Technical Description
| Model | BL-B310C-EC-07 | Fan Size | 316 × 316 × 136 mm |
| Motor Size | 92 | Weight | 3.45 kg |
| Packaging | 54 pcs/pallet | Impeller Material | Aluminum alloy |
| Number of Blades | 6 | Airflow Direction | All around |
| Direction of Rotation | Clockwise viewed toward rotor | Rotor Surface | Plastic spraying (blue) |
| Rotor Housing | Stretch | Degree of Protection | IP55 |
| Insulation Class | B | Operating Mode | S1 |
| Bearing | Ball bearing | Installation Position | Any |
| Transport/Storage Temperature | -40 to +80 °C | Operating Humidity | 5%–90% RH |
| Storage Humidity | 5%–95% RH | Cable Length | 500 ± 20 mm; stackable in 500 mm increments |
| Control Features | 10 VDC output; 0–10 VDC / PWM | Motor Protection | Locked rotor, thermal, over/under-voltage and overcurrent protection; soft start |
| Dielectric Strength | 1800 VAC / 50 Hz, 1 s; leakage ≤10 mA; no breakdown flashover | Touch Current | ≤3.5 mA according to IEC 60990 |
| Conformity | CCC, CE, RoHS | Release Date | 14 December 2024 |
Product Application
| 1 | Charging Column | 9 | Equipment Cooling Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Ventilation Unit Project |
| 3 | FFU Project | 11 | AHU Project |
| 4 | Computer Room Cooling | 12 | Air Purifier Project |
| 5 | Rail Transit Air-Conditioning | 13 | Heat Exchanger Project |
| 6 | Electrical Appliances | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Cooling Project |
| 8 | Ventilation Equipment Project | 16 | Industrial Cooling System |

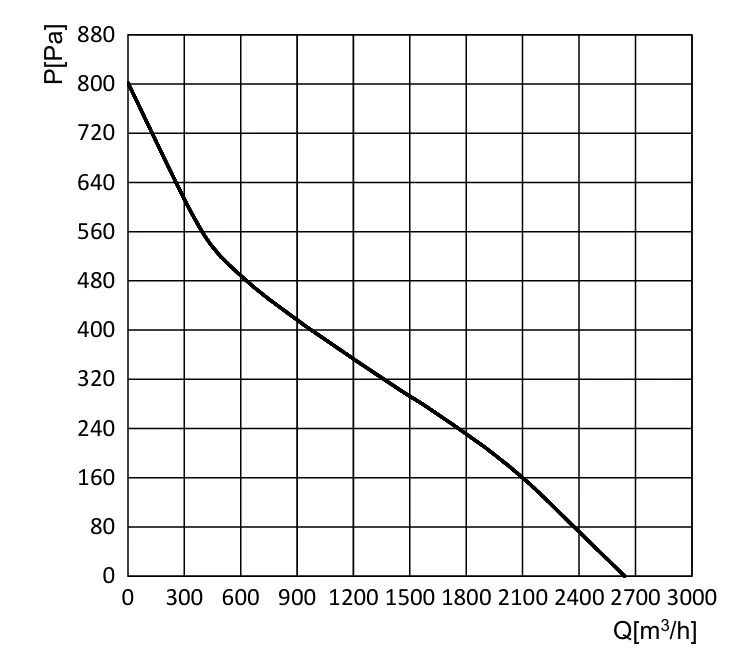

Air Performance

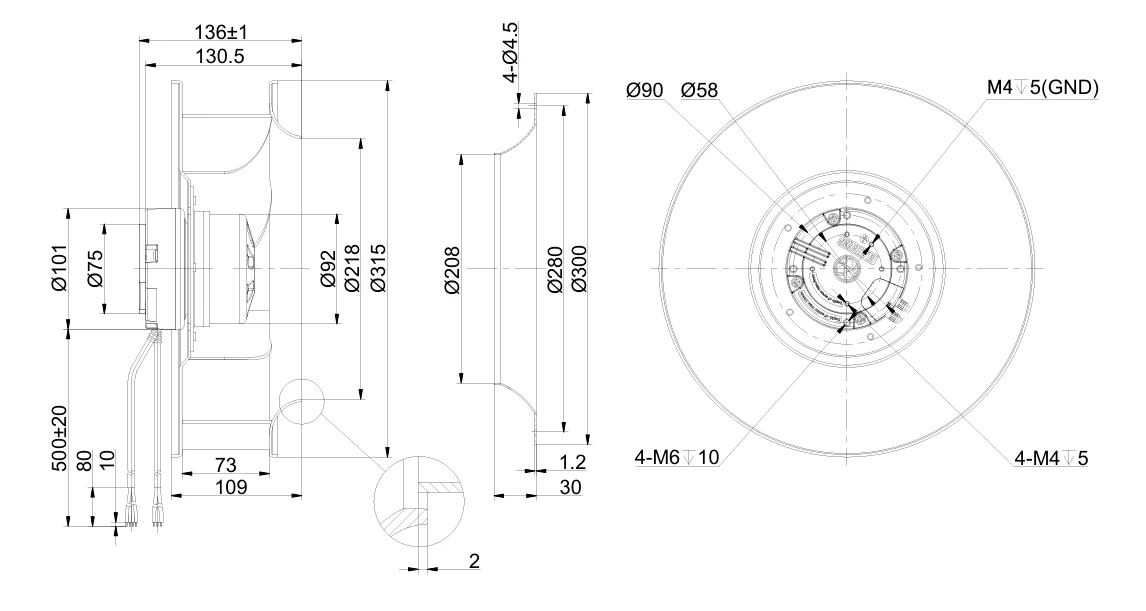

Overall Dimensions
Accessory part: inlet ring. M4 screw maximum screw-in depth: 5 mm. M6 screw maximum screw-in depth: 10 mm. AC cable: PVC 3 × AWG20. DC cable: PVC 4 × AWG24.
Electrical Connection
| Line | Connection | Colour | Function / Assignment | |
| Power Line | PE | Green / Yellow | Protective Earth | |
| U1 | L | Brown | Power supply, live wire; see nameplate for voltage range | |
| U2 | N | Blue | Power supply, neutral wire; see nameplate for voltage range | |
| Control Line | U4 | +10V | Red | Fixed voltage output 10 VDC ±5%, Imax. 10 mA; power supply for external devices such as potentiometers; SELV |
| U5 | Speed Control | Yellow | 0–10 V / PWM (maximum PWM amplitude 10 V) control input; SELV | |
| U6 | Signal Feedback | White | Tach output, 5 pulses per revolution (pulses can be customized or changed to RD signal); SELV | |
| U7 | GND | Blue | Reference ground for control interface; SELV | |
Speed Setting
- Full Speed: Short red and yellow; the fan will run at full speed.
- Voltage Control 0–10 VDC (±0.2 V): voltage above 1.0 VDC starts the fan; voltage below 0.5 VDC stops the fan.
- PWM Control: PWM duty 0%–100% (±2%); suggested amplitude 10 VDC (±5%); frequency 1–10 kHz; duty above 10% starts the fan and below 5% stops it.
- Potentiometer Control: use a 10 kΩ potentiometer; voltage above 1.0 VDC starts the fan and below 0.5 VDC stops it.
Signal Feedback: The fan provides a speed output signal. Vfg and the pull-up resistor are connected by the customer. Vfg=(3.3–30)VDC, R≥1000×(Vfg)Ω. Speed calculation: n=60f/a, where n is fan speed, a is pulses per revolution and f is signal output waveform frequency. Tacho signal output labels: IC, Rb1, Rb2, Rfg, Vce, Vfg, GND and Qa.
Download
Download BL-B310C-EC-07 Product Specification
