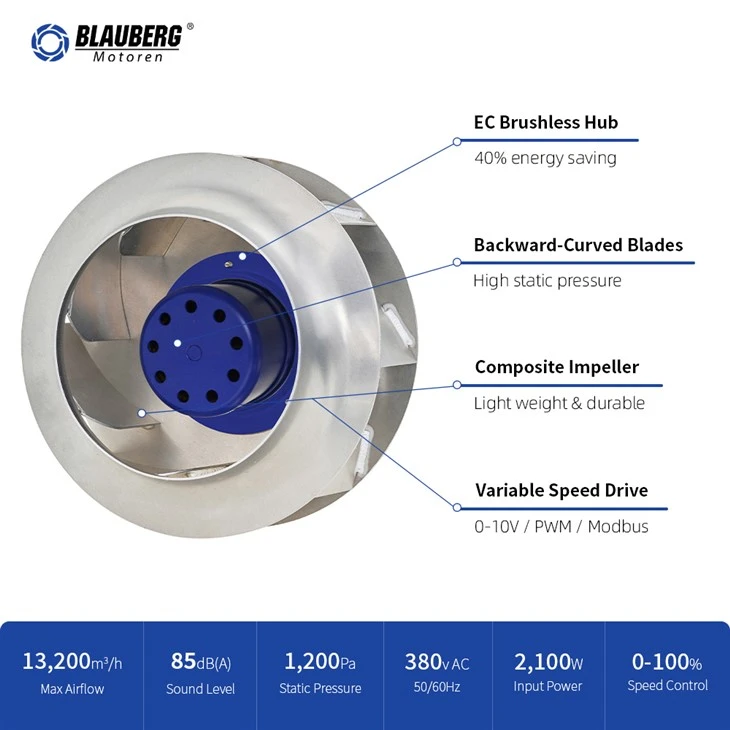

Suzhou Blauberg Motoren Technology Co., Ltd. is one of the leading manufacturers and suppliers of by-b355e-ec-05 355mm ec backward curved centrifugal fan in China. Welcome to buy bulk high quality customized products made in China here and get quotation from our factory. For price consultation, contact us.
Basic Info
| Type | EC Backward Curved Centrifugal Fan | Model | BY-B355E-EC-05 |
| Motor | EC102AC380V1100W | Phase | 3~ |
| Nominal Voltage | 380 VAC | Nominal Voltage Range | 304-460 VAC |
| Frequency | 50/60 Hz | Method of Obtaining Data | FA (Free Air) |
| Nominal Speed | 2550 ±5% RPM | Max. Input Power | 1100 W |
| Max. Input Current | 2.1 A | Sound Level | 86 dB(A) |
| Min. Ambient Temperature | -25 ℃ | Max. Ambient Temperature | 60 ℃ |
Technical Description
| Fan Size (L×W×H) | 359 × 359 × 257.4 mm | Motor Size | 102 |
| Impeller Material | Metal | Number of Blades | 8 |
| Direction of Air Flow | All Around | Direction of Rotation | Clockwise, Viewed Toward Rotor |
| Rotor Surface | Plastic Spraying (Blue) | Rotor Housing | Stretch |
| Degree of Protection | IP20 | Insulation Class | Class F |
| Motor Transport/Storage Temperature | -40 ℃ to +80 ℃ | Min./Max. Humidity | 5%-90% RH |
| Min./Max. Humidity (Storage) | 5%-95% RH | Installation Position | Any |
| Cooling Holes/Cut-outs | Rotor Side | Mode | S1 |
| Motor Bearing | Ball Bearing | Length of Cable | Standard 500 ±20 mm (Can be Stacked Every 500 mm) |
| Technical Features | Output 10 VDC, Max. 10 mA; Control Input 0-10 VDC/PWM, PWM Max. Input Voltage 10 VDC; PFC Power Correction; RS485 MODBUS-RTU; Locked Rotor Protection; Thermal Protection; Excessive Voltage Protection; Less Voltage Protection; Overcurrent Protection; Soft Start | Strength Class of Screws | 8.8 |
| Dielectric Strength | 2200 VAC/50 Hz, 1 s, Leakage Current ≤10 mA, No Breakdown Flashover | Touch Current According to IEC 60990 | ≤3.5 mA |
| Conformity with Standards | CCC, CE, RoHS |
Product Application
| 1 | Charging Column | 9 | Equipment Cooling Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Ventilation Unit Project |
| 3 | FFU Project | 11 | AHU Project |
| 4 | Computer Room Cooling | 12 | Air Purifier Project |
| 5 | Rail Transit Air-Conditioning | 13 | Heat Exchanger Project |
| 6 | Electrical Appliances | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Cooling Project |
| 8 | Ventilation Equipment Project | 16 | Industrial Cooling System |
Air Performance
Air performance measured according to AMCA210/GB1236 installation category A. For detailed information on the measurement setup, contact Blauberg. The values given are valid under the specified measuring conditions and may vary due to conditions of installation. For deviations from the standard configuration, the parameters have to be checked on the installed unit.
Overall Dimensions
Electrical Connection
| Line | Connection | Colour | Function / Assignment | |
|---|---|---|---|---|
| Power Line | PE | Green / Yellow | Protective Earth | |
| U0 | L1 | Brown | Power supply, live wire; see nameplate for voltage range | |
| U1 | L2 | Blue | Power supply, live wire; see nameplate for voltage range | |
| U2 | L3 | Black | Power supply, live wire; see nameplate for voltage range | |
| U3 | NC | White | Status relay, point A; normally closed, opens on failure; contact rating 250 VAC/2 A | |
| U4 | COM | Gray | Status relay, point B, common connection; contact rating 250 VAC/2 A; isolated from power and control interfaces | |
| Control Line | U5 | RSA | Brown | RS485 interface for MODBUS, RSA; SELV |
| U6 | RSB | Gray | RS485 interface for MODBUS, RSB; SELV | |
| U7 | Speed Control | Yellow | 0-10 V/PWM (Max. amplitude of PWM 10 V) control input; SELV | |
| U8 | Signal Feedback | White | Tach output, 5 pulses per revolution (pulses can be customized or changed to RD signal); SELV | |
| U9 | +10V | Red | Fixed voltage output 10 VDC ±5%, Imax. 10 mA; power supply for external devices, e.g. potentiometers; SELV | |
| U10 | GND | Blue | Reference ground for control interface; SELV | |
Speed Setting
1. Full Speed: Short Red and Yellow; fan will run at full speed.
2. Voltage Control 0-10 VDC (±0.2 V): User DC power supports 0-10 VDC. Voltage higher than 1.0 VDC: fan starts. Voltage lower than 0.5 VDC: fan stops.
3. PWM Control: PWM duty 0%-100% (±2%). Suggested amplitude: 10 VDC (±5%). Frequency: 1 kHz-10 kHz. Duty higher than 10%: fan starts. Duty lower than 5%: fan stops.
4. Potentiometer Control: Suggested 10 kΩ potentiometer. Voltage higher than 1.0 VDC: fan starts. Voltage lower than 0.5 VDC: fan stops.
Signal Feedback: The fan provides a speed output signal. Vfg and the pull-up resistor are connected by the customer. Vfg=(3.3-30)VDC, R≥1000×(Vfg)Ω. Speed calculation: n=60f/a, where n is fan speed, a is pulses per revolution, and f is signal output waveform frequency.
Download
BY-B355E-EC-05 Product Specification N.pdf
