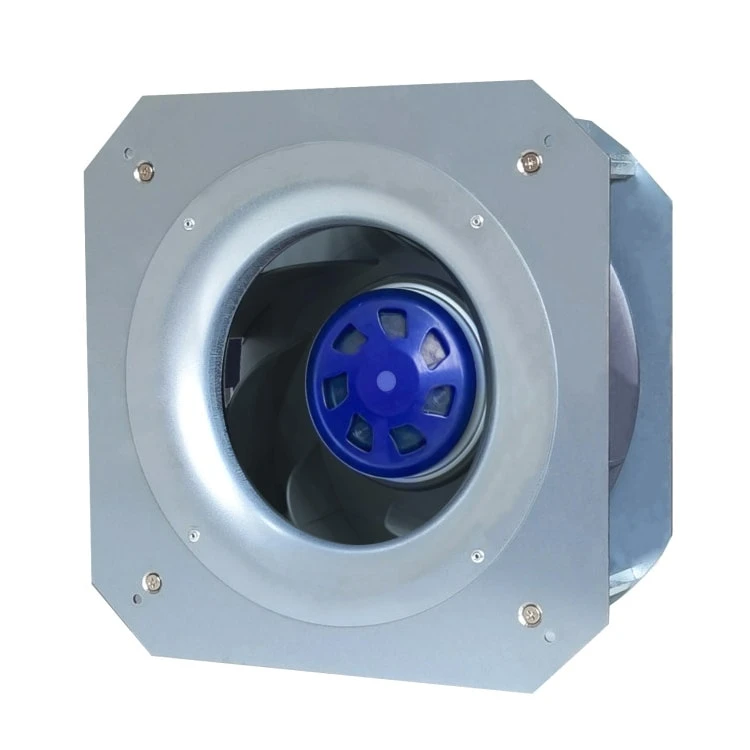

Suzhou Blauberg Motoren Technology Co., Ltd. is one of the leading manufacturers and suppliers of 133mm external rotor motor ec backward curved centrifugal plug fan for air handling units in China. Welcome to buy bulk high quality customized products made in China here and get quotation from our factory. For price consultation, contact us.
Basic Info
| Model No. | GC-B133B-EC-M3 | Flow Direction | Centrifugal |
| Pressure | Medium Pressure | Remote Control | Without Remote Control |
| Usage | For Experiment,for Air Conditioner,for Manufacture | Fan Type | EC Backward Curved Centrifugal Plug Fan |
| Package | Pallet | Package Size | 110*110*110cm |
| Trademark | Blauberg | Origin | China |
| HS Code | 8414593000 | Production Capacity | 50000/year |
Technical Description
| Dimension: | 165*165*83.5mm | Mode of operation: | S1 |
| Materials Impeller: | PA6+GF | Bearing: | ball bearings |
| Materials Housing: | SPCC+S45C | Motor protection: | self-resetting TOP wired internally |
| Direction of rotation : | clockwise,seen on rotor | Air Flow: | 153.03 CFM/ 260M³/H |
| Number of Blades: | 7 | Static Pressure: | 1.76 inH2O / 440 Pa |
| Speed Control: | 0-10VDC PWM | Life Expectancy: | 50,000 Hours(L10) |
| Operating Voltage: | 115 VAC | Operating Humidity: | 5%-90% RH |
| Type of protection: | IP55 | Signal Output: | FG (Frequency Generator) |
| Insulation class: | B | Authentication: | UL,CE,ROHS,CCC,ISO |
Product Application
| 1 | Charging Column | 9 | Equipments Cooling Project |
| 2 | Kitchen smoke exhaust system | 10 | Ventilation Unit Project |
| 3 | FFU Project | 11 | AHU(Air Handling Unit)Project |
| 4 | Computer room cooling | 12 | Air Purifier Project |
| 5 | Air-conditioned fan for rail transit carriers | 13 | Heater Exchanger Project |
| 6 | Electrical appliances | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Cooling Project |
| 8 | Ventilation Equipments Project | 16 |
P-Q
Overall Dimensions
Electrical Connection
Download
GC-B133B-EC-M3-Product-Specification
