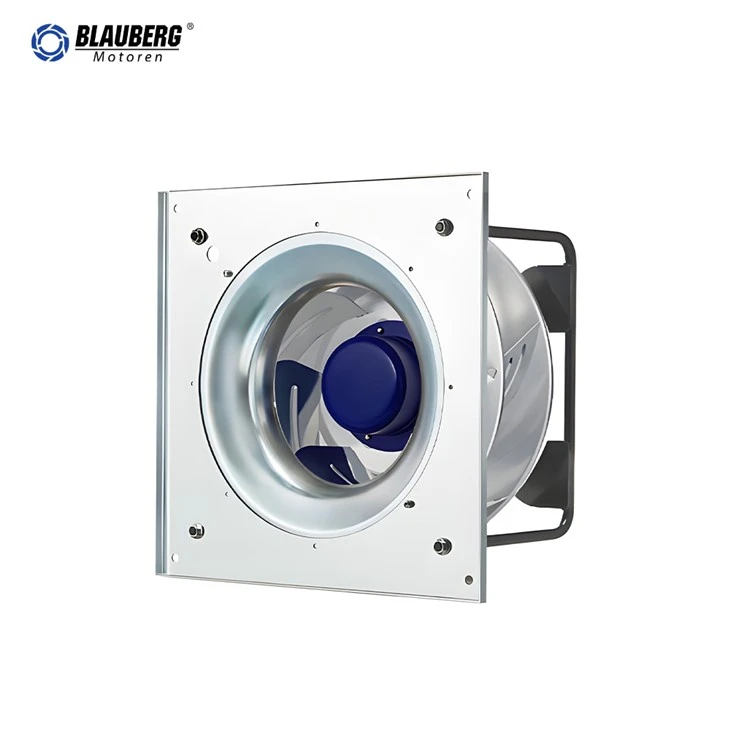

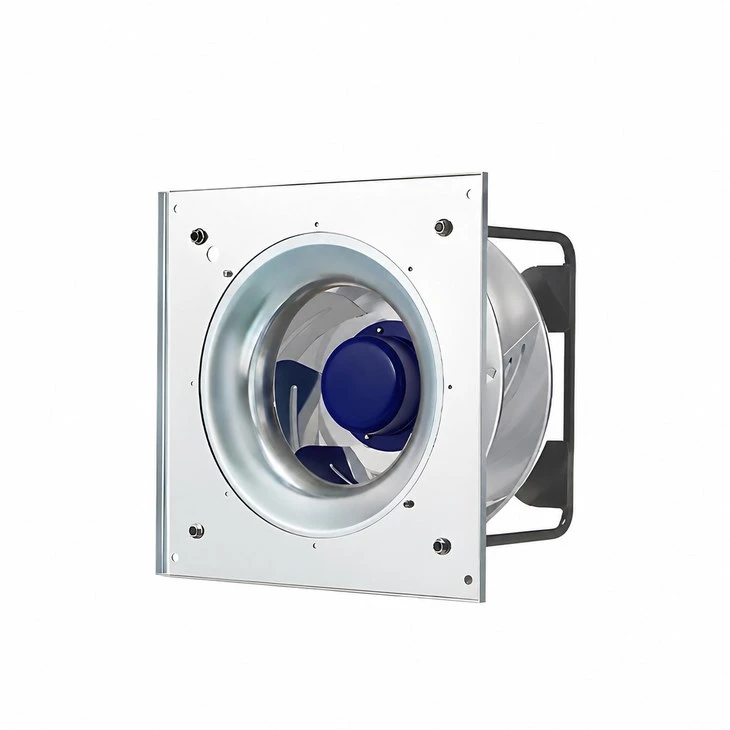

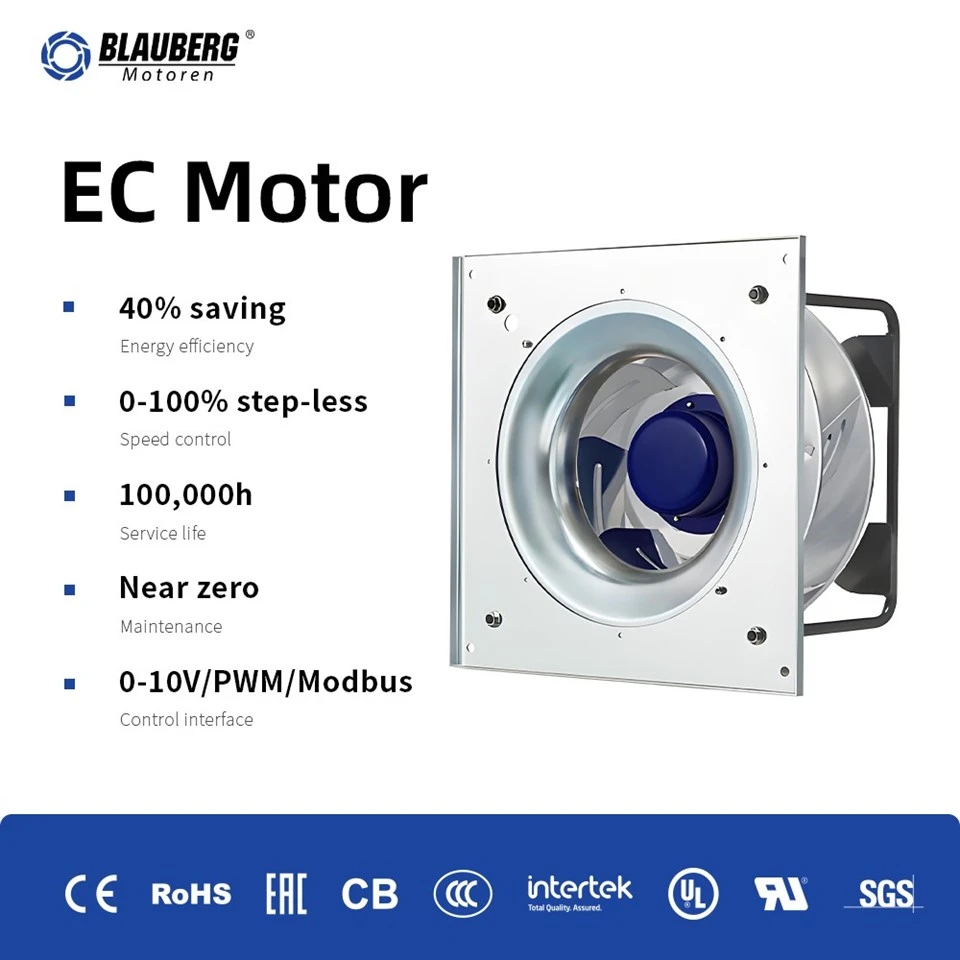

The Blauberg GL-B400E-EC-05 is a 230 VAC EC backward-curved centrifugal plug fan with a support frame and aluminum-alloy impeller. It operates at 1800 RPM and provides 0-10 VDC or PWM speed control, a status relay, RS485 MODBUS-RTU communication and tachometer feedback.
| Model | GL-B400E-EC-05 | Product Type | EC Backward-Curved Centrifugal Plug Fan |
| Phase | 1~ | Rated Voltage | 230 VAC (184-276 VAC operating range) |
| Frequency | 50/60 Hz | Rated Speed | 1800 +/-5% RPM |
| Maximum Input Power | 700 W | Maximum Input Current | 3.1 A |
| Sound Level | 85 dB(A) | Ambient Temperature | -25 deg C to +60 deg C |
| Certification | CCC, CE | RoHS | All materials conform to RoHS |
| Dimensions | 500 x 500 x 350.5 mm | Impeller | Aluminum alloy, 8 blades |
| Rotation | Clockwise, viewed toward rotor | Rotor Surface | Blue plastic spraying |
| Degree of Protection | IP55 | Insulation Class | Class F |
| Duty / Bearing | S1 / Maintenance-free ball bearing | Motor | External-rotor EC motor |
| Protection | Status relay, locked-rotor, thermal, overvoltage, undervoltage, overcurrent, PFC and soft-start protection | Cable Length | 500 +/-20 mm |
| Humidity | 5%-90% RH operating; 5%-95% RH storage | Weight / Packaging | 16.8 kg / 8 pieces per pallet |
| 1 | Charging Column | 9 | Equipment Cooling Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Ventilation Unit Project |
| 3 | FFU Project | 11 | AHU Project |
| 4 | Computer Room Cooling | 12 | Air Purifier Project |
| 5 | Rail Transit Air-Conditioning | 13 | Heat Exchanger Project |
| 6 | Electrical Appliances | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Cooling Project |
| 8 | Ventilation Equipment Project | 16 | Industrial Cooling System |
Power and control wiring
| Line | Terminal | Color | Function |
| Power | PE | Green/Yellow | Protective earth |
| Power | U1 / L | Brown | Live conductor |
| Power | U2 / N | Black | Neutral conductor |
| Power | U3 / NC | White | Status relay normally closed contact |
| Power | U4 / COM | Gray | Status relay common contact |
| Control | U5 / RSA | Brown | RS485 port |
| Control | U6 / RSB | Gray | RS485 port |
| Control | U7 / 0-10V/PWM | Yellow | 0-10 VDC or PWM speed input; maximum PWM amplitude 10 V |
| Feedback | U8 / FG | White | Tachometer output, 5 pulses per revolution |
| Control | U9 / +10V | Red | External +10 VDC output |
| Control | U10 / GND | Blue | Reference ground |
Tachometer feedback: The fan provides an open-collector speed output. The customer supplies Vfg and the pull-up resistor; Vfg = 3-30 VDC and R must be at least 1000 x Vfg ohms.
- Connect the power and control lines strictly according to the wiring diagram to prevent fan damage.
- Do not connect the white signal wire directly to the red signal wire or an external DC power supply.
- If the fan does not run after starting, check the speed-control input voltage and wiring. Do not touch the impeller or rotor after power is applied.
- The fan takes several seconds to start. Do not touch the impeller or rotor while energized or operating at low speed.
- For EMC compliance according to EN 55014, an additional magnetic ring is required on the power line; the ring is not supplied with the fan.
- Persons lacking the required physical, sensory or mental ability, experience or knowledge may use the fan only under supervision. Keep it away from children.
- A damaged power cable must be replaced by the manufacturer.
- The motor is part of the fan and must not operate without an impeller or load.
- After unpacking, repackage the product for storage. Store it in a clean, ventilated warehouse at -40 deg C to +80 deg C, below 95% RH, without corrosive gases, and at least 15 cm above the floor.
- Read this technical specification carefully before use.
