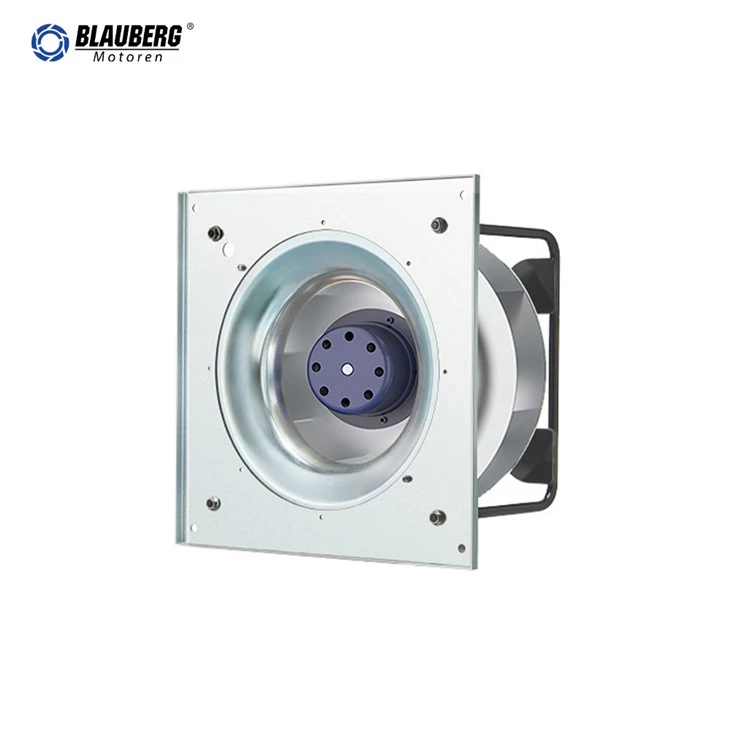

The Blauberg GY-B400E-EC-L38 is a three-phase EC backward-curved centrifugal plug fan with a support frame and metal impeller. It accepts 380-480 VAC at 50/60 Hz, operates at 2250 RPM, and provides 0-10 VDC, PWM or 4-20 mA control, status relay contacts, RS485 communication and tachometer feedback.
| Model | GY-B400E-EC-L38 | Product Type | EC Backward-Curved Centrifugal Plug Fan |
| Phase | 3~ | Rated Voltage | 400 VAC (380-480 VAC range) |
| Frequency | 50/60 Hz | Rated Speed | 2250 +/-5% RPM |
| Maximum Input Power | 1800 W | Maximum Input Current | 3.0 A |
| Sound Level | 89 dB(A) | Ambient Temperature | -25 deg C to +60 deg C |
| Certification | CCC, CE | RoHS | All materials conform to RoHS |
| Dimensions | 500 x 500 x 367 mm | Impeller | Metal, 8 blades |
| Rotation | Clockwise, viewed toward rotor | Rotor Surface | Blue plastic spraying |
| Degree of Protection | IP55 | Insulation Class | Class F |
| Duty / Bearing | S1 / Ceramic ball bearings | Motor | External-rotor EC motor |
| Protection | Status relay, locked-rotor, overheating, overvoltage, undervoltage, overcurrent and soft-start protection | Installation Position | Any |
| Humidity | 5%-95% RH operating and storage | Motor Size | 138 mm |
| 1 | Charging Column | 9 | Equipment Cooling Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Ventilation Unit Project |
| 3 | FFU Project | 11 | AHU Project |
| 4 | Computer Room Cooling | 12 | Air Purifier Project |
| 5 | Rail Transit Air-Conditioning | 13 | Heat Exchanger Project |
| 6 | Electrical Appliances | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Cooling Project |
| 8 | Ventilation Equipment Project | 16 | Industrial Cooling System |
Power and control wiring
| Connector | Terminal | Function |
| P1 | PE | Protective earth |
| P1 | L1 / L2 / L3 | Three-phase power supply |
| P2 | NO / COM / NC | Floating status relay contacts; 250 VAC, 2 A |
| P3 | FG | Tachometer output, 5 pulses per revolution |
| P3 | GND | Reference ground |
| P3 | Din1 | Digital enable input: open or 5-50 VDC enables; bridge to GND or below 1 VDC disables |
| P3 | +10V | Fixed 10 VDC output, maximum 10 mA |
| P3 | +20V | Fixed 20 VDC output, maximum 10 mA |
| P3 | 4-20mA | Analog current control input |
| P3 | Ain1 U | 0-10 VDC or PWM speed control input; maximum PWM amplitude 10 V |
| P3 | RSA / RSB | RS485 MODBUS interface |
Tachometer feedback: The fan provides an open-collector speed output. The customer supplies Vfg and the pull-up resistor; Vfg = 3-30 VDC and R must be at least 1000 x Vfg ohms. The 4-20 mA input supports full speed at 20 mA, minimum speed at 4.5 mA and stop at 3.2 mA or below.
- Connect the power and control lines strictly according to the wiring diagram to prevent fan damage.
- Do not connect the white signal wire directly to the red signal wire or an external DC power supply.
- If the fan does not run after starting, check the speed-control input voltage and wiring. Do not touch the impeller or rotor after power is applied.
- The fan takes several seconds to start. Do not touch the impeller or rotor while energized or operating at low speed.
- For EMC compliance according to EN 55014, an additional ferrite ring is required on the power line; it is not supplied with the fan.
- Persons lacking the required physical, sensory or mental ability, experience or knowledge may use the fan only under supervision. Keep it away from children.
- A damaged power cable must be replaced by the manufacturer.
- The motor is part of the fan and must not operate without an impeller or load.
- After unpacking, repackage the product for storage. Store it in a clean, ventilated warehouse at -40 deg C to +80 deg C, below 95% RH, without corrosive gases, and at least 15 cm above the floor.
