Basic Info
| Model | BC-F140B-EC-02 | Product Type | EC Forward Curved Centrifugal Fan |
| Phase | 1~ | Rated Voltage | 115 VAC |
| Frequency | 50/60 Hz | Nominal Speed | 2060 RPM |
| Maximum Input Power | 115 W | Maximum Input Current | 1.7 A |
| Sound Level | 74 dB(A) | Ambient Temperature | -25 to +60 C |
| Certifications | CCC, CE, RoHS | Protection | IP55 |
Technical Description
| Dimensions | 140 x 140 x 84 mm | Impeller Material | Metal |
| Rotation | Clockwise, viewed from rotor side | Rotor Surface | Powder coated |
| Insulation Class | Class B | Duty Type | S1 |
| Bearing | Ball bearing | Lead Length | 500 +/-20 mm |
| Motor Protection | Locked-rotor, thermal, over/undervoltage, overcurrent and soft-start protection | ||
| Operating Humidity | 5%-90% RH | Motor Type | External-rotor EC motor |
| Impeller Runout | Axial and radial <=0.5 mm | Storage | -40 to +80 C; RH <=95% |
Product Application
| 1 | Charging Column | 9 | Equipment Cooling Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Ventilation Unit Project |
| 3 | FFU Project | 11 | AHU Project |
| 4 | Computer Room Cooling | 12 | Air Purifier Project |
| 5 | Rail Transit Air-Conditioning | 13 | Heat Exchanger Project |
| 6 | Electrical Appliances | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Cooling Project |
| 8 | Ventilation Equipment Project | 16 | Industrial Cooling System |

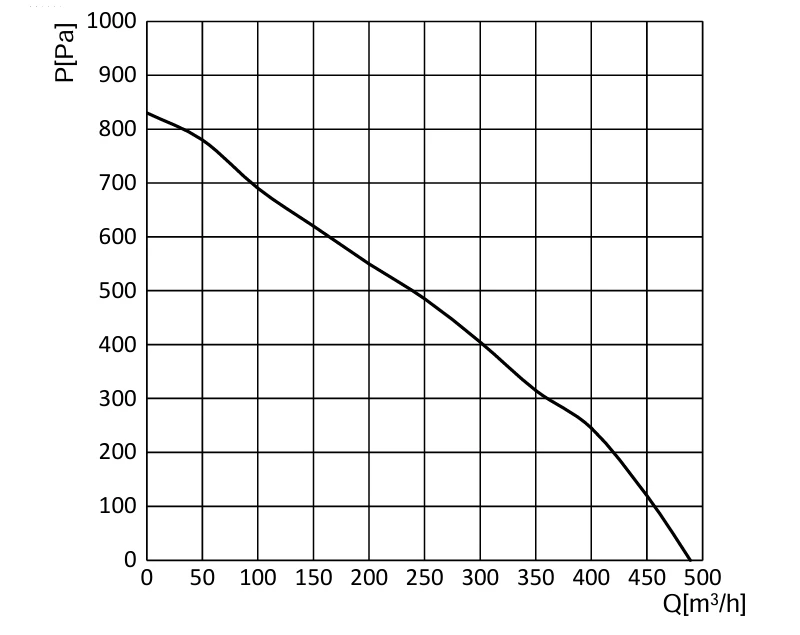

Air Performance

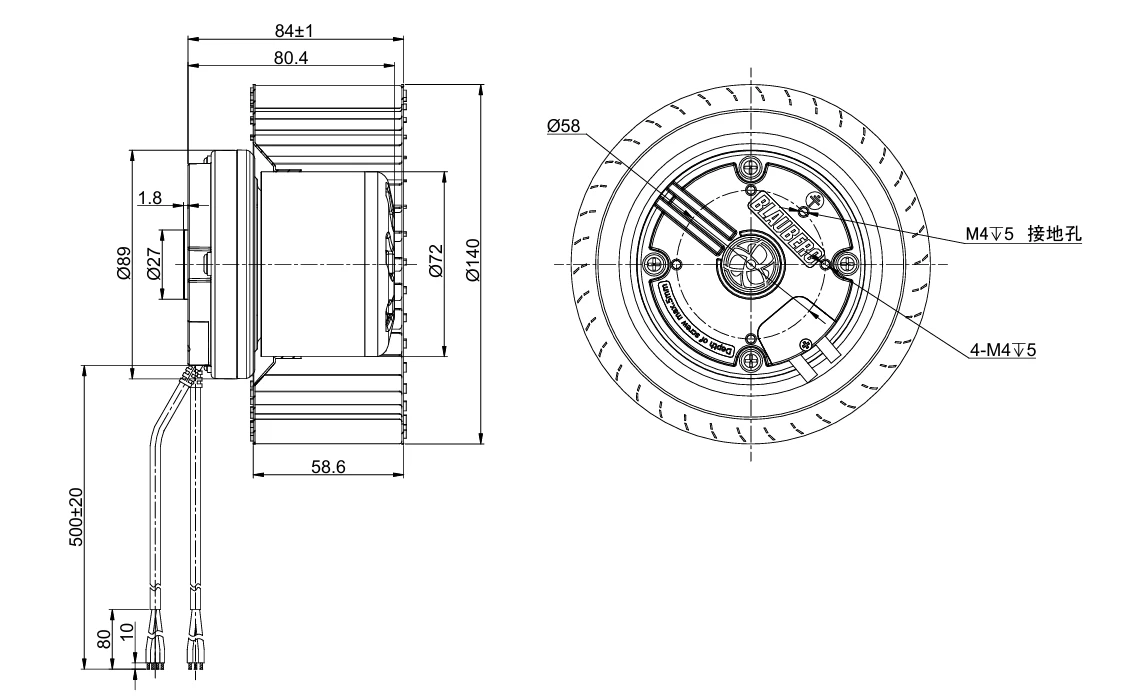

Overall Dimensions
Electrical Connection
| PE | Yellow/green | Protective earth |
| U1 / L | Brown | Live conductor |
| U2 / N | Blue | Neutral conductor |
| U4 / +10V | Red | +10 VDC output |
| U5 / 0-10V or PWM | Yellow | Speed-control input |
| U6 / FG | White | Speed feedback output |
| U7 / GND | Blue | Control ground |
Connect the power and control leads strictly according to the wiring diagram.
Download
BC-F140B-EC-02 Product Specification.pdf
