Basic Info

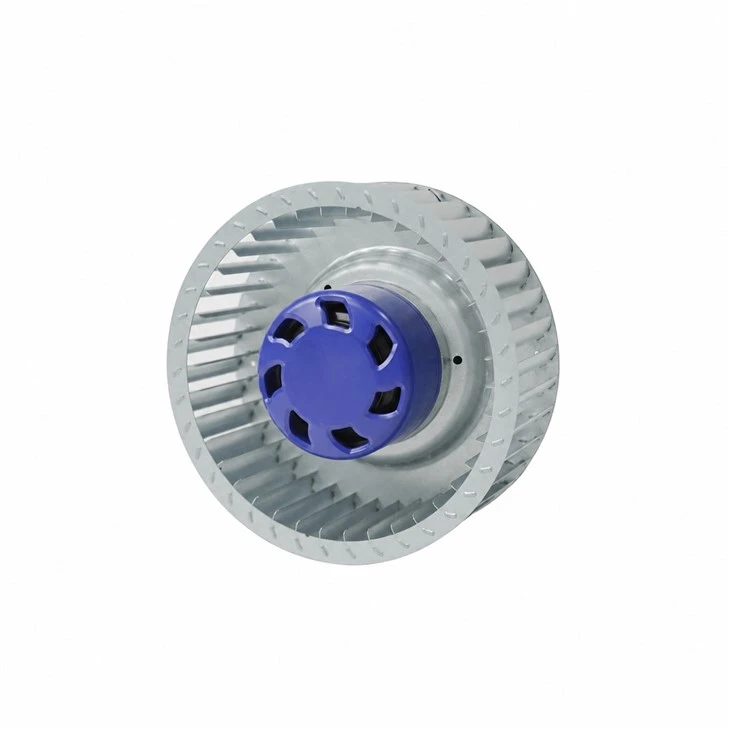

The Blauberg BD-F108A-EC-00 is a 108 mm DC forward centrifugal fan designed for efficient, controllable airflow in compact ventilation and equipment-cooling systems.
| Model | BD-F108A-EC-00 | Rated Voltage | 24 VDC |
|---|---|---|---|
| Rated Speed | 3340 RPM | Input Power | 85 W |
| Input Current | 3.55 A | Sound Level | 67 dB(A) |
| Dimensions | 108 × 108 × 80 mm | Operating Temperature | -25 to +60 °C |
Technical Description
This forward-curved centrifugal fan combines a high-efficiency EC motor with 0-10 VDC or PWM speed control. Its galvanized-steel impeller rotates clockwise when viewed toward the rotor. Continuous-duty construction, ball bearings and IP55 protection support reliable operation in compact ventilation and equipment-cooling systems.
| Impeller Material | Galvanized steel | Rotation | Clockwise, viewed toward rotor |
|---|---|---|---|
| Protection Class | IP55 | Insulation Class | Class B |
| Duty | S1 continuous | Bearing | Ball bearing |
| Control | 0-10 VDC or PWM speed control | Feedback | FG speed signal |
| Cable Length | 500 ±20 mm | Connection | 4-wire |
| Airflow | Approx. 315 m³/h | Static Pressure | Approx. 318 Pa |
Product Application
| 1 | Charging Column | 9 | Equipment Cooling Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Ventilation Unit Project |
| 3 | FFU Project | 11 | AHU Project |
| 4 | Computer Room Cooling | 12 | Air Purifier Project |
| 5 | Rail Transit Air-Conditioning | 13 | Heat Exchanger Project |
| 6 | Electrical Appliances | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Cooling Project |
| 8 | Ventilation Equipment Project | 16 | Industrial Cooling System |
Air Performance

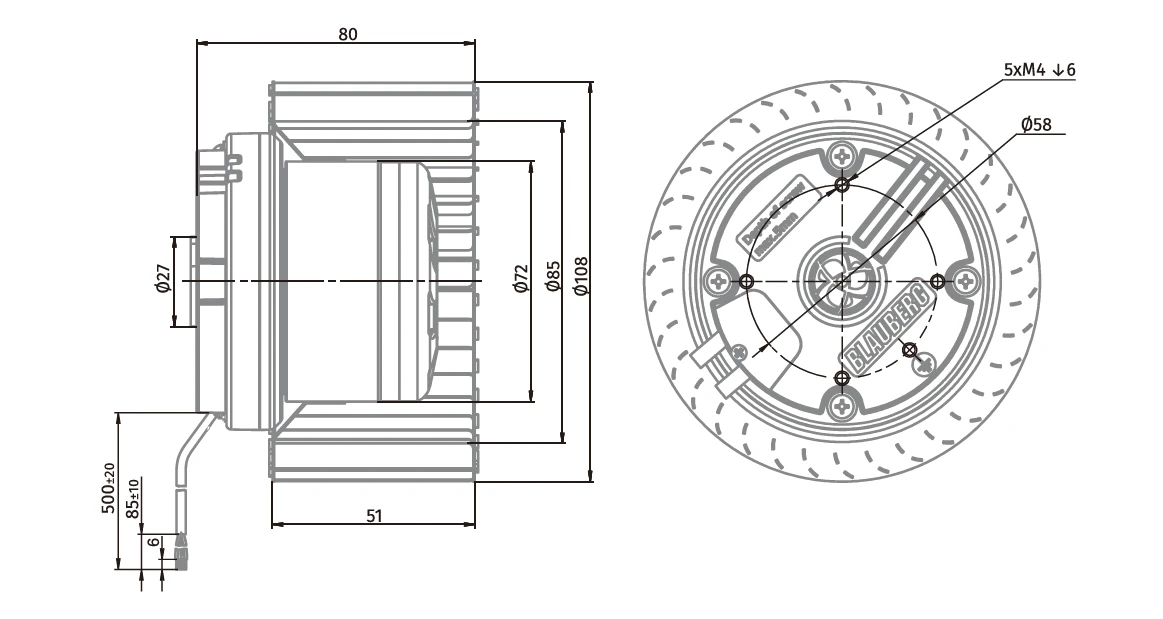

Overal Dimmensions
| Maximum Air Flow | Approx. 315 m³/h |
| Maximum Static Pressure | Approx. 318 Pa |
| Overall Dimensions | 108 × 108 × 80 mm |
Electrical Connection
Download
Download BD-F108A-EC-00 Technical Specification
