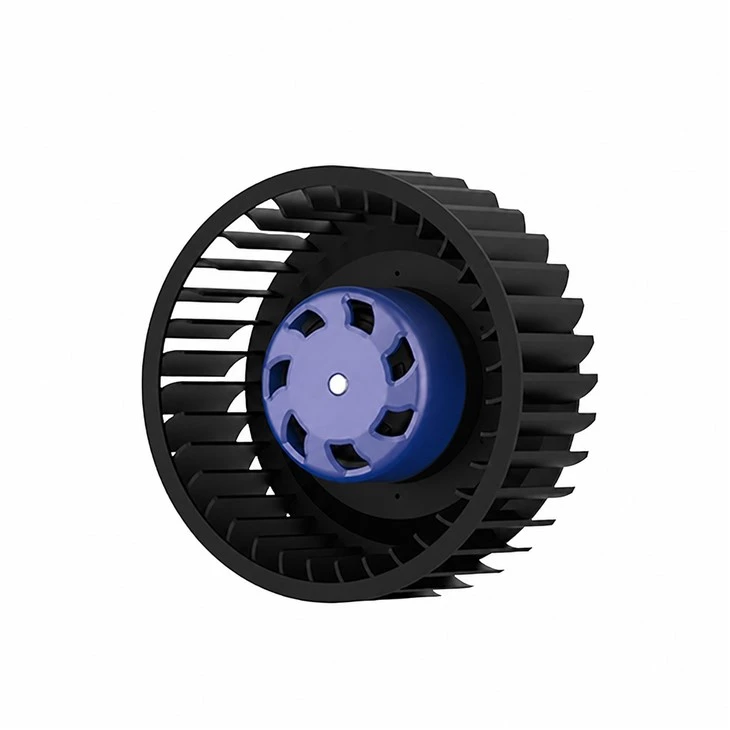

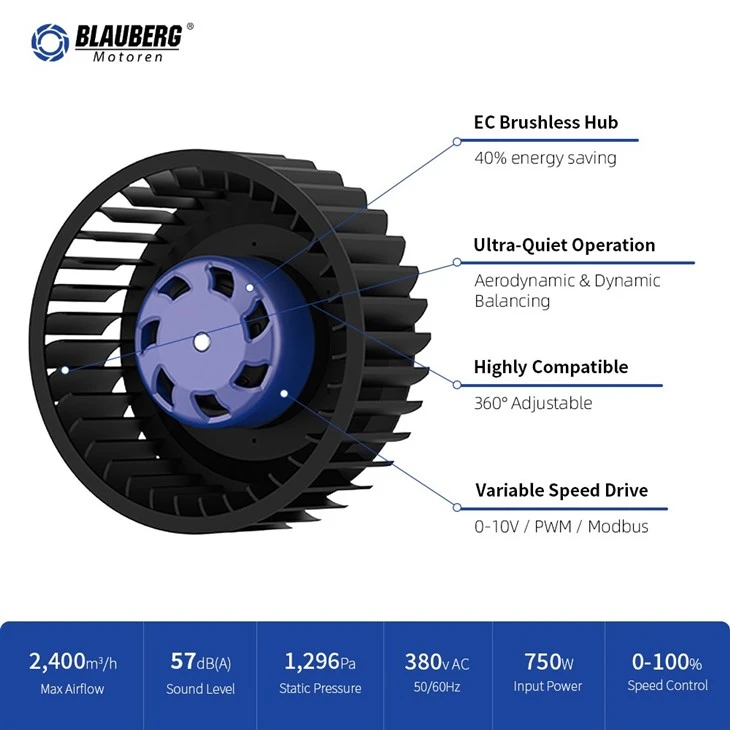

Suzhou Blauberg Motoren Technology Co., Ltd. is one of the leading manufacturers and suppliers of blauberg bl-f160b-ec-00 160mm ec forward curved centrifugal fan in China. Welcome to buy bulk high quality customized products made in China here and get quotation from our factory. For price consultation, contact us.
Basic Info
| Model | BL-F160B-EC-00 | Product Type | EC Forward Curved Centrifugal Fan |
| Phase | 1~ | Rated Voltage | 230 VAC |
| Frequency | 50/60 Hz | Nominal Speed | 2200 RPM |
| Max. Input Power | 85 W | Max. Input Current | 0.65 A |
| Sound Level | 62 dB(A) | Ambient Temperature | -25 to +60 °C |
| Certification | CCC, RoHS | Protection | IP55 |
Technical Description
| Dimensions | 160 × 160 × 80 mm | Impeller Material | Plastic |
| Rotation | Clockwise, viewed from rotor side | Rotor Surface | Powder coating |
| Insulation Class | Class B | Operating Mode | S1 |
| Bearing | Ball bearing | Cable Length | 500 ±20 mm |
| Humidity | 5%–90% RH | Motor Type | External rotor EC motor |
| Impeller Deviation | Axial ≤0.5 mm; radial ≤0.5 mm | Motor Protection | Locked rotor, thermal, under/overvoltage and overcurrent |
Product Application
| 1 | Charging Column | 9 | Equipment Cooling Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Ventilation Unit Project |
| 3 | FFU Project | 11 | AHU Project |
| 4 | Computer Room Cooling | 12 | Air Purifier Project |
| 5 | Rail Transit Air-Conditioning | 13 | Heat Exchanger Project |
| 6 | Electrical Appliances | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Cooling Project |
| 8 | Ventilation Equipment Project | 16 | Industrial Cooling System |
Air Performance
Overall Dimensions
Electrical Connection
| Line | Conn. | Designation | Colour | Function / Assignment |
| Power Line | PE | Green/Yellow | Protective earth | |
| Power Line | U1 | L | Brown | Live wire |
| Power Line | U2 | N | Blue | Neutral wire |
| Control Line | U4 | +10V | Red | 10 V control power output |
| Control Line | U5 | Speed Control | Yellow | 0–10 V/PWM speed-control input |
| Control Line | U6 | Signal Feedback | White | RPM output signal |
| Control Line | U7 | GND | Blue | Control ground |
Note
| 1 | Connect power and control lines strictly according to the wiring diagram to avoid damage. |
| 2 | Do not connect the white signal wire directly to the red signal wire or an external DC supply. |
| 3 | If the fan does not run after startup, check the speed-control input voltage and wiring. |
| 4 | The fan may take several seconds to start; do not touch the impeller or rotor while energized or running at low speed. |
| 5 | Persons without suitable physical, sensory or mental capability and relevant experience must use the fan only under supervision. Keep children away. |
| 6 | A damaged power cable must be replaced by the manufacturer. |
| 7 | Do not use the motor alone without the impeller or load. |
| 8 | Store the repacked product in a clean, ventilated warehouse at -10 °C to +40 °C and no more than 75% RH, free of corrosive gases and at least 15 cm above the floor. |
| 9 | Read this technical specification carefully before use. |
Download
BL-F160B-EC-00 Product Specification.pdf
