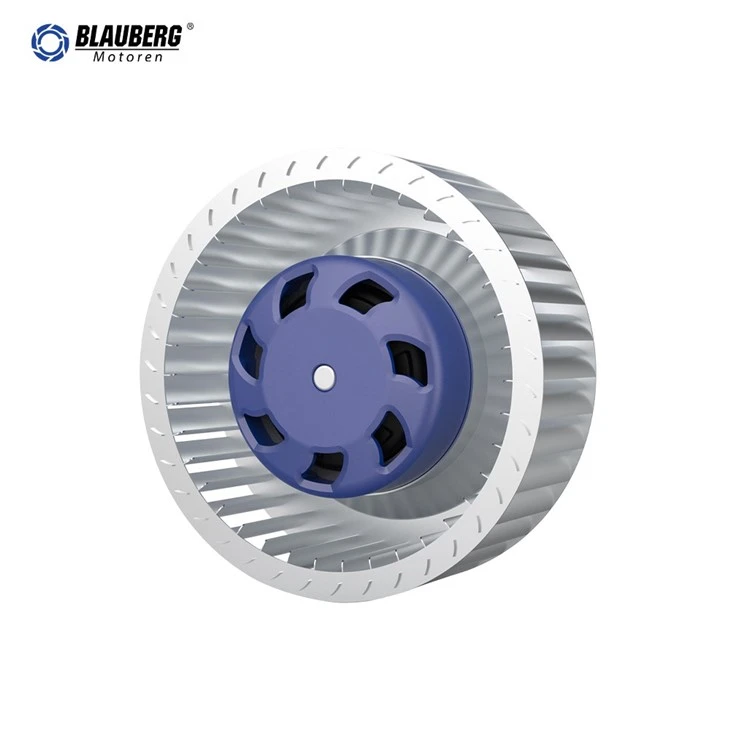

Suzhou Blauberg Motoren Technology Co., Ltd. is one of the leading manufacturers and suppliers of blauberg bc-f120b-ec-02 120mm ec forward curved centrifugal fan in China. Welcome to buy bulk high quality customized products made in China here and get quotation from our factory. For price consultation, contact us.
Basic Info
| Model | BC-F120B-EC-02 | Product Type | EC Forward Curved Centrifugal Fan |
| Phase | 1~ | Rated Voltage | 115 VAC |
| Frequency | 50/60 Hz | Nominal Speed | 3800 RPM |
| Max. Input Power | 115 W | Max. Input Current | 1.8 A |
| Sound Level | 63 dB(A) | Ambient Temperature | -25 deg C to +60 deg C |
| Certification | CCC, CE, RoHS | Release Date | See product specification |
Technical Description
| Dimensions | 120 x 120 x 84 mm | Motor Size | 72 mm |
| Impeller Material | Metal | Number of Blades | See product specification |
| Air Flow Direction | All around | Rotation | Clockwise, viewed toward rotor |
| Rotor Surface | Blue plastic spraying | Weight | See product specification |
| Degree of Protection | IP55 | Insulation Class | Class B |
| Operating Mode | S1 | Bearing | Ball bearing |
| Installation Position | Any | Cooling Holes / Cut-outs | Rotor side |
| Operating Humidity | 5%-90% RH | Storage Humidity | 5%-95% RH |
| Storage Temperature | -40 to +80 deg C | Cable Length | 500+/-20 mm |
| Technical Features | 10 VDC output; 0-10 VDC/PWM speed control; locked-rotor, thermal, overvoltage, undervoltage, overcurrent and soft-start protection | ||
| Dielectric Strength | 1800 VAC / 50 Hz, 1 s; leakage current <=10 mA | ||
Product Application
| 1 | Charging Column | 9 | Equipment Cooling Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Ventilation Unit Project |
| 3 | FFU Project | 11 | AHU Project |
| 4 | Computer Room Cooling | 12 | Air Purifier Project |
| 5 | Rail Transit Air-Conditioning | 13 | Heat Exchanger Project |
| 6 | Electrical Appliances | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Cooling Project |
| 8 | Ventilation Equipment Project | 16 | Industrial Cooling System |
Air Performance
Overall Dimensions
Electrical Connection
Connect the power and control lines strictly according to the wiring diagram. Refer to the product specification for complete safety, storage, maintenance and warranty information.
Download
BC-F120B-EC-02 Product Specification N.pdf
