Basic Info

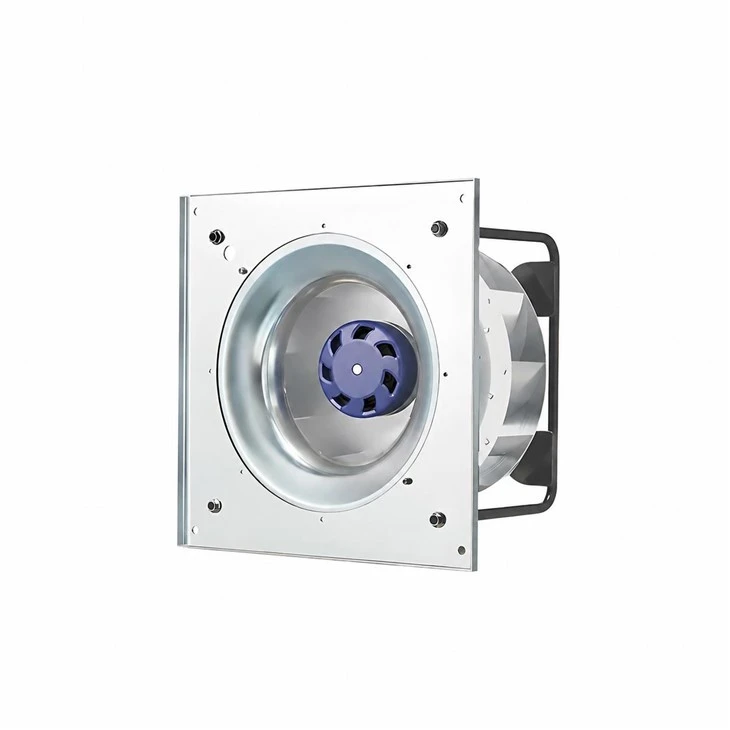

| Model | GN-B310C-EC-01 | Product Type | DC backward centrifugal plug fan |
| Rated Voltage | 310 VDC | Voltage Range | 248–372 VDC |
| Nominal Speed | 1810 ±5% RPM | Max. Input Power | 175 W |
| Max. Input Current | 0.96 A | Sound Level | 66 dB(A) |
| Max. Airflow | Approx. 2180 m³/h | Max. Static Pressure | Approx. 690 Pa |
| Ambient Temperature | -25°C to +60°C | Protection | IP55 |
Technical Description
| Dimensions | 440 × 440 × 204.3 mm | Motor | EC072DC310V170W |
| Impeller Material | Aluminum alloy | Airflow Direction | All around |
| Rotation | Clockwise, viewed toward rotor | Rotor Surface | Plastic spraying |
| Insulation Class | Class B | Operation Mode | S1 |
| Bearing | Maintenance-free ball bearing | Cable Length | 500 ± 20 mm |
| Operating Humidity | 5%–90% RH | Installation Position | Any |
| Control Input | 0–10 VDC / PWM | Speed Feedback | FG output |
| Motor Protection | Locked rotor, thermal, over/undervoltage, overcurrent and soft start | Compliance | CCC, CE and RoHS |
Product Application
| 1 | Charging Column | 9 | Equipment Cooling Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Ventilation Unit Project |
| 3 | FFU Project | 11 | AHU Project |
| 4 | Computer Room Cooling | 12 | Air Purifier Project |
| 5 | Rail Transit Air-Conditioning | 13 | Heat Exchanger Project |
| 6 | Electrical Appliances | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Cooling Project |
| 8 | Ventilation Equipment Project | 16 | Industrial Cooling System |

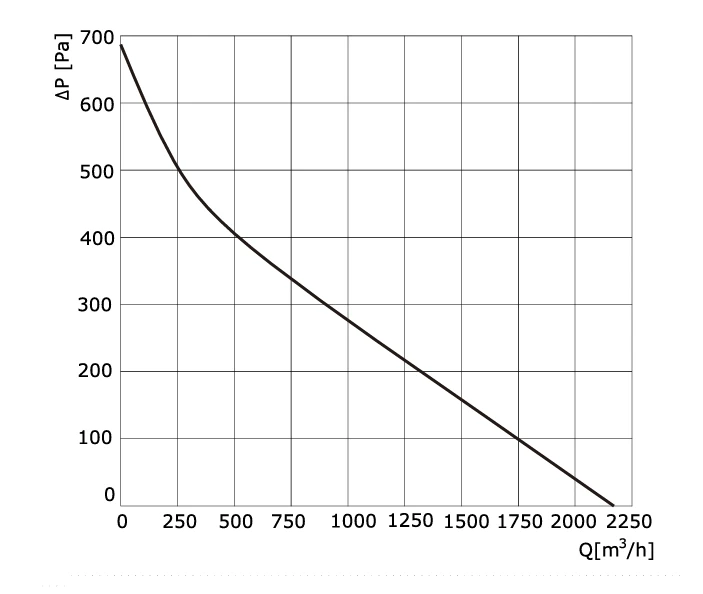

Air Performance

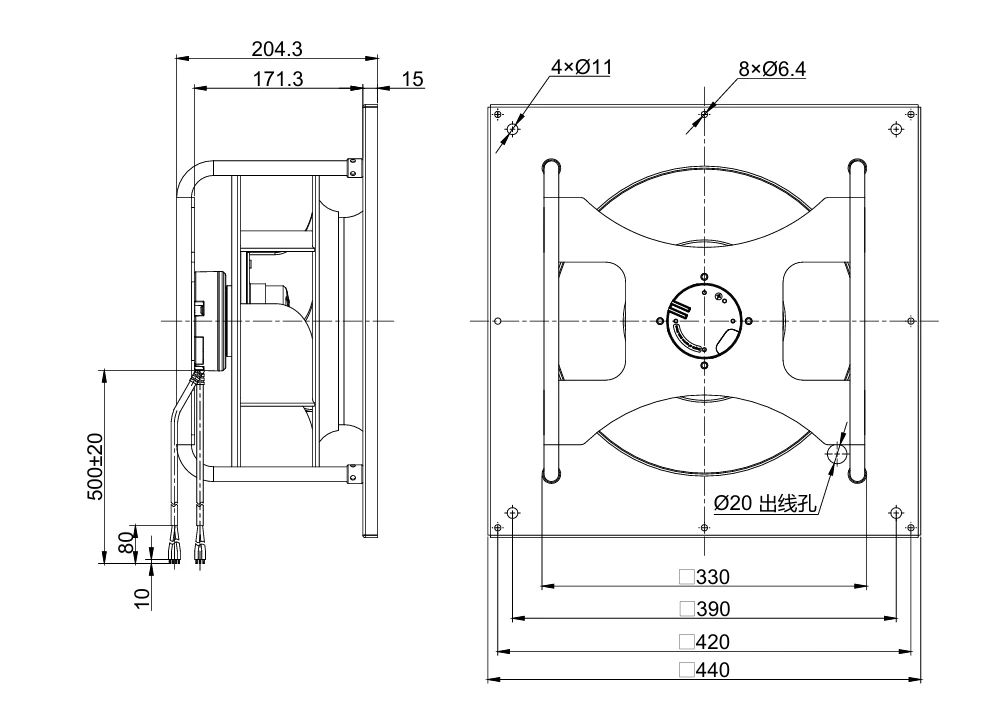

Overall Dimensions
Electrical Connection
Download
Technical specification PDF: use the Download Technical Specification button on this page.
