Basic Info
| Model | SC-F160C-EC-01 | Product Type | EC Single Inlet Centrifugal Blower |
| Brand | Blauberg | Place of Origin | Germany |
| Certification | CCC, CE | Compliance | RoHS |
Rated Data
| Phase | 1~ | Rated Voltage | 115 VAC (92-138 VAC) |
| Frequency | 50/60 Hz | Rated Speed | 3050 RPM |
| Maximum Input Power | 160 W | Maximum Input Current | 2.6 A |
| Sound Level | 68 dBA | Ambient Temperature | -25 to +60 deg C |
Technical Description
| Motor Type | External rotor EC motor | Motor Size | 72 |
| Weight | Not specified | Packaging | 72 PCS |
| Fan Dimensions | 246.9 x 220.5 x 118.4 mm | Impeller Material | Metal |
| Number of Blades | 35 | Air Flow Direction | All around |
| Rotation | Clockwise, viewed toward rotor | Rotor Surface | Blue plastic spraying |
| Protection Class | IP55 | Insulation Class | Class B |
| Duty / Bearing | S1 / Ball bearing | Installation Position | Any |
| Storage Temperature | -40 to +80 deg C | Humidity | 5%-90% RH; storage 5%-95% RH |
| Technical Features | 10 VDC output; 0-10 VDC/PWM control; locked rotor, thermal, over/undervoltage, overcurrent and soft start protection | ||
| Cable Length | 500+/-20 mm | Dielectric Strength | 1800 VAC / 50 Hz, 1 s |
Product Application
| 1 | Charging Column | 9 | Equipment Cooling Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Ventilation Unit Project |
| 3 | FFU Project | 11 | AHU Project |
| 4 | Computer Room Cooling | 12 | Air Purifier Project |
| 5 | Rail Transit Air-Conditioning | 13 | Heat Exchanger Project |
| 6 | Electrical Appliances | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Cooling Project |
| 8 | Ventilation Equipment Project | 16 | Industrial Cooling System |

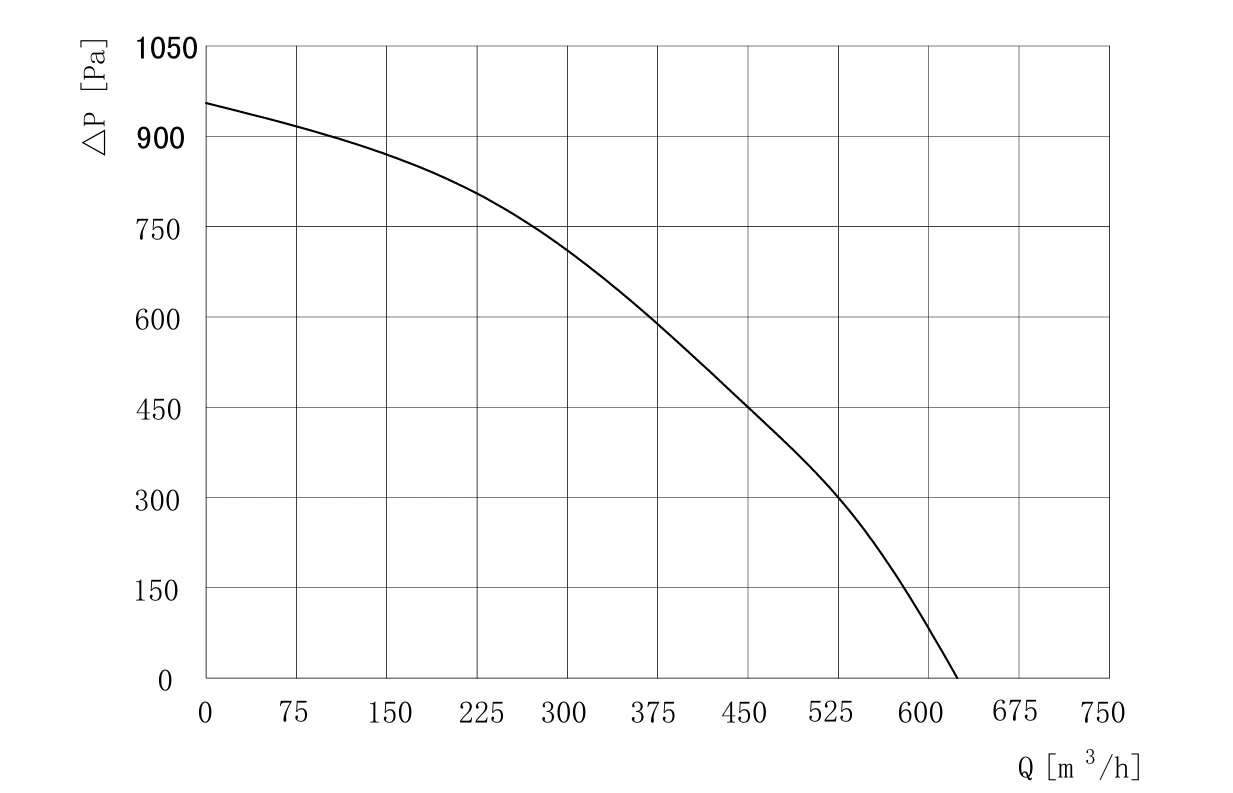

Air Performance

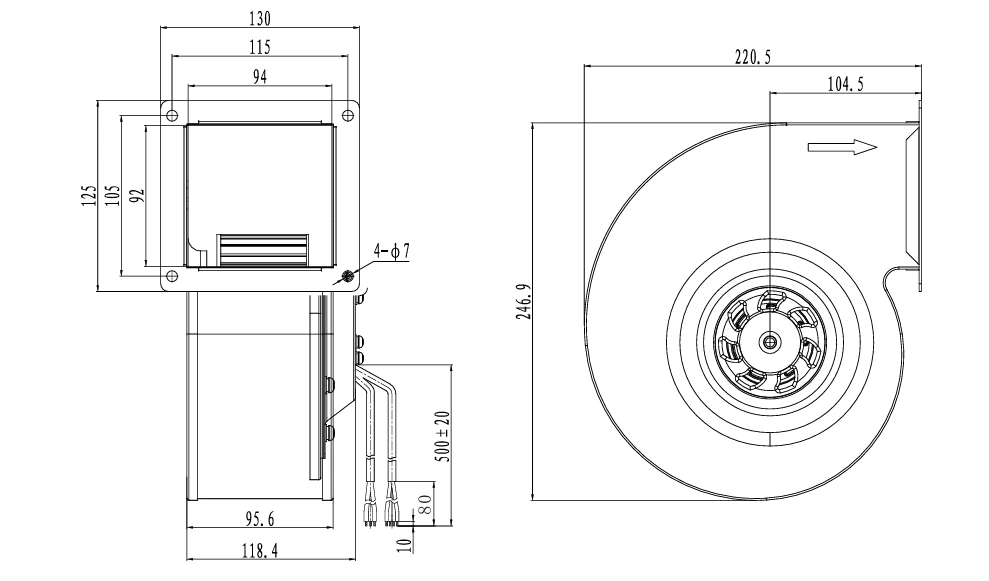

Overall Dimensions

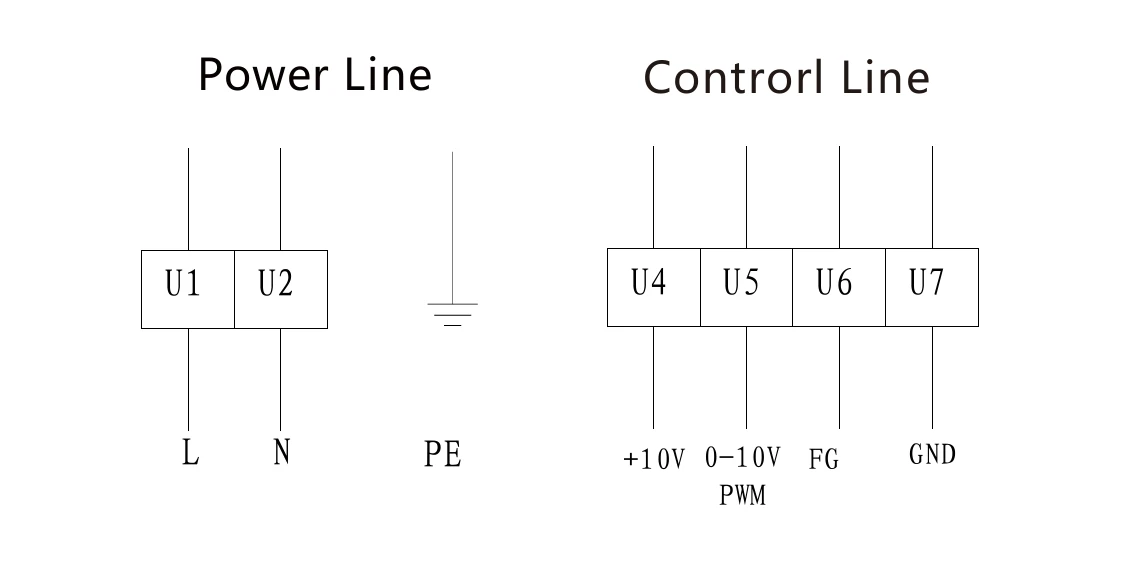

Electrical Connection
| Terminal | Wire / Function | Description |
|---|---|---|
| PE | Green/Yellow | Protective Earth |
| U1 / L | Brown | Live |
| U2 / N | Blue | Neutral |
| U4 / +10V | Red | External output +10VDC |
| U5 / 0-10V PWM | Yellow | Speed control, maximum 10V |
| U6 / FG | White | Speed feedback, 2 pulses/revolution |
| U7 / GND | Blue | Signal ground |
Download
SC-F160C-EC-01 Product Specification.pdf
