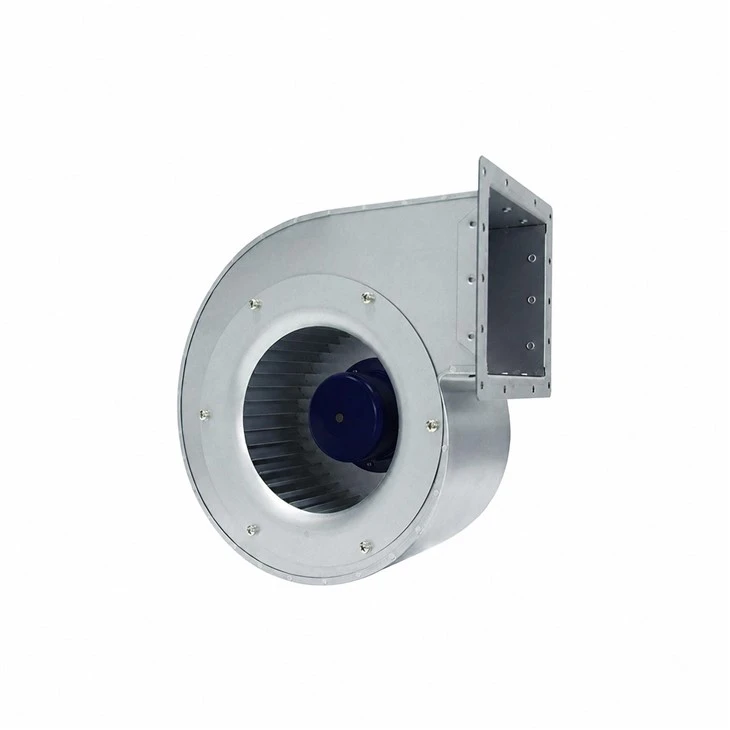

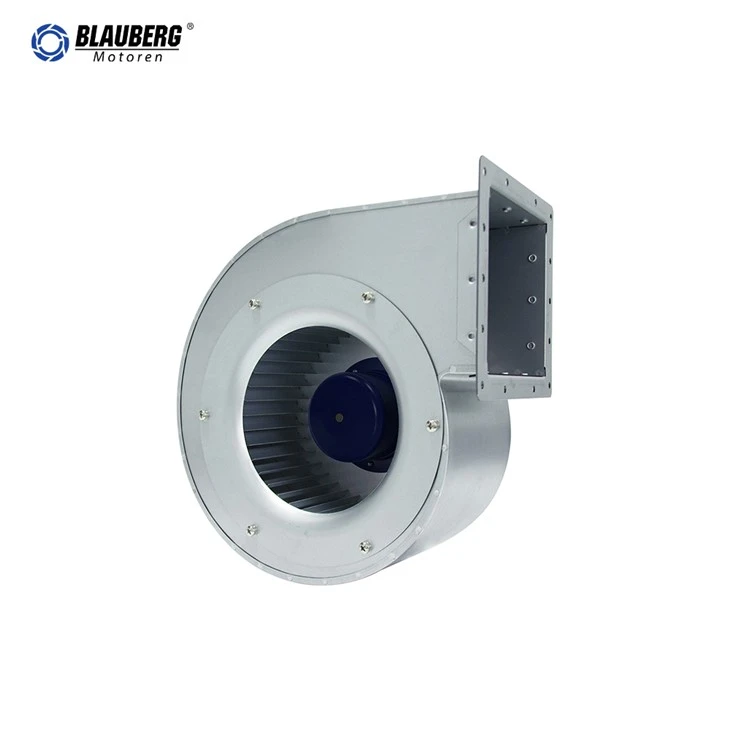

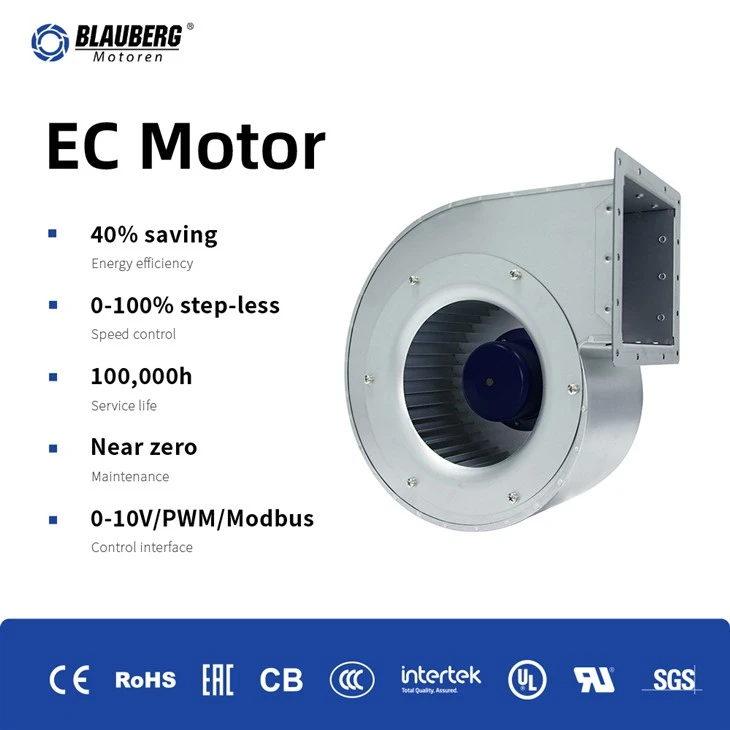

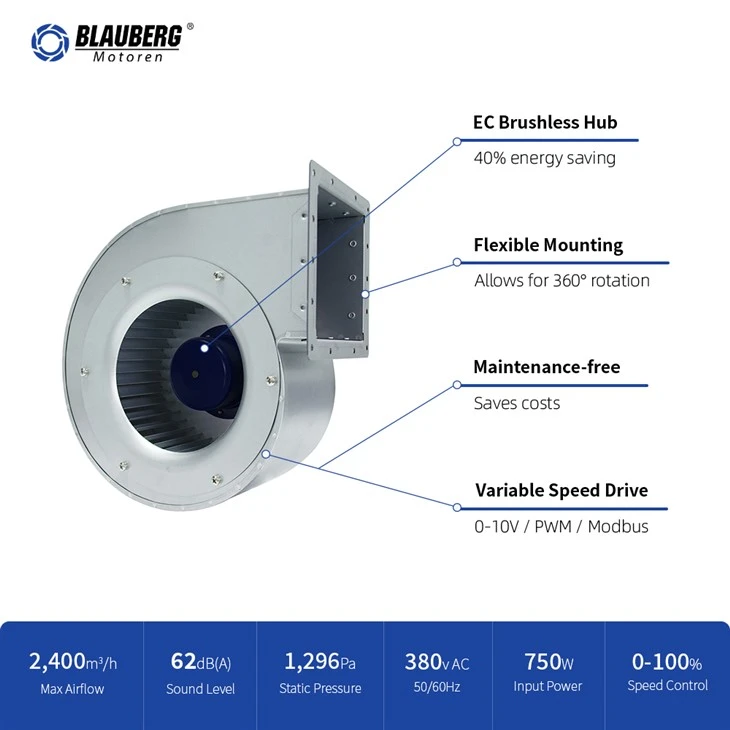

Basic Info
| Model | SL-F200E-EC-F05 | Product Type | EC Backward Curved Centrifugal Blower |
| Brand | Blauberg | Place of Origin | Germany |
| Certification | CCC, CE | Compliance | RoHS |
Rated Data
| Phase | 1~ | Rated Voltage | 230 VAC |
| Frequency | 50/60 Hz | Rated Speed | 2350 RPM |
| Maximum Input Power | 470 W | Maximum Input Current | 2.1 A |
| Sound Level | 75 dBA | Ambient Temperature | -25 to +60 deg C |
Technical Description
| Motor Type | External rotor EC motor | Motor Size | Not specified |
| Weight | Not specified | Packaging | Not specified |
| Fan Dimensions | 318 x 370 x 201.7 mm | Impeller Material | Metal |
| Number of Blades | Not specified | Air Flow Direction | All around; straight forward from air outlet |
| Rotation | Clockwise, viewed toward rotor | Rotor Surface | Blue plastic spraying |
| Protection Class | IP44 | Insulation Class | Class F |
| Duty / Bearing | S1 / Ball bearing | Installation Position | Any |
| Storage Temperature | -40 to +80 deg C | Humidity | 5%-90% RH; storage 5%-90% RH |
| Technical Features | 10 VDC output; 0-10 VDC/PWM control; PFC; RS485 MODBUS-RTU; locked rotor, thermal, over/undervoltage, overcurrent and soft start protection | ||
| Cable Length | 500+/-20 mm | Dielectric Strength | 1800 VAC / 50 Hz, 1 s; leakage current <=10 mA |
| Rotor Housing | Stretch | Cooling Holes / Cut-outs | None |
Product Application
| 1 | Charging Column | 9 | Equipment Cooling Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Ventilation Unit Project |
| 3 | FFU Project | 11 | AHU Project |
| 4 | Computer Room Cooling | 12 | Air Purifier Project |
| 5 | Rail Transit Air-Conditioning | 13 | Heat Exchanger Project |
| 6 | Electrical Appliances | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Cooling Project |
| 8 | Ventilation Equipment Project | 16 | Industrial Cooling System |

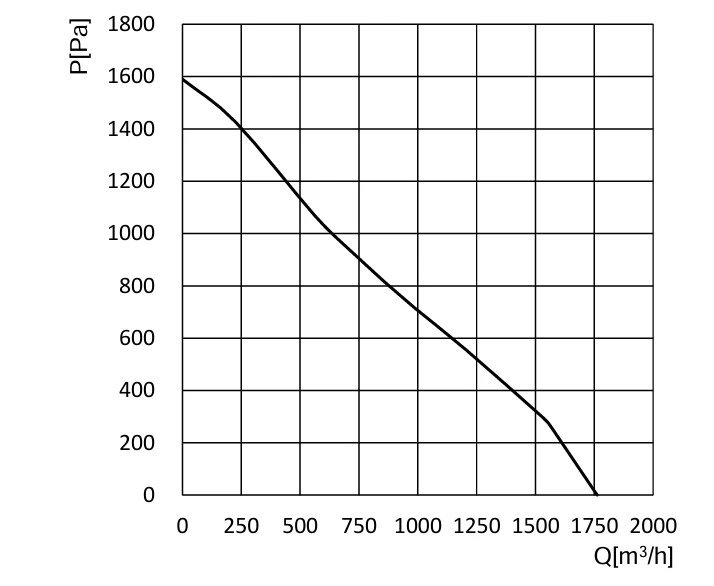

Air Performance

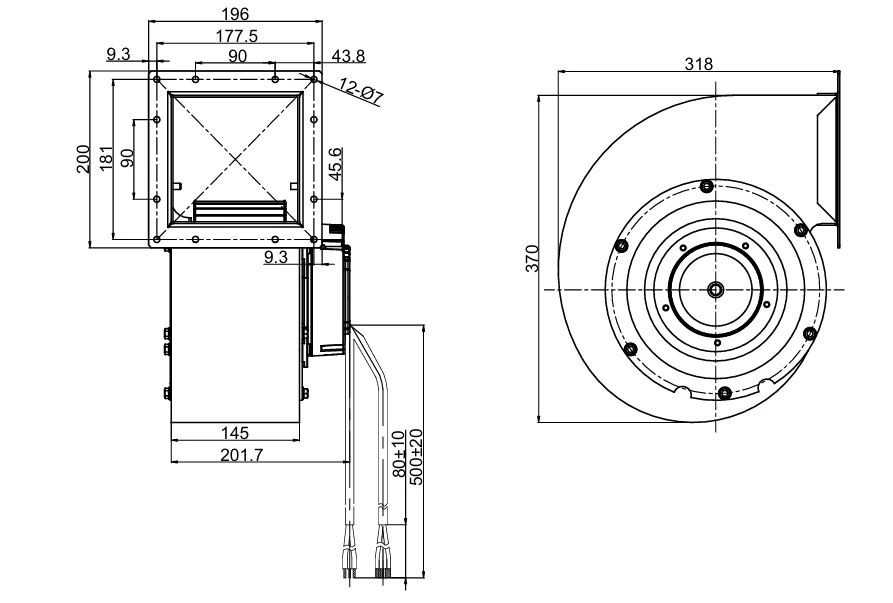

Overall Dimensions
Electrical Connection
| Terminal | Function | Description |
|---|---|---|
| PE | Protective Earth | Green/yellow protective earth |
| U1 / L | Live | Brown 230 VAC live wire |
| U2 / N | Neutral | Blue neutral wire |
| U3 / RSA | RS485 A | Brown RS485 port |
| U4 / RSB | RS485 B | Gray RS485 port |
| U5 / 0-10V PWM | Speed Control | Yellow 0-10 V/PWM control input; recommended PWM amplitude 10 V |
| U6 / FG | Signal Feedback | White RPM/tach output signal |
| U7 / +10V | Voltage Output | Red external +10 VDC output |
| U8 / GND | Control Ground | Blue control ground |
Note
- The power line and control line of the fan should be connected in strict accordance with the wiring diagram to prevent the fan from burning out;
- Do not connect the white signal wire directly to the red signal wire or the external DC power supply;
- If the fan does not work after starting, check the speed-control input voltage and wiring. To prevent injury caused by sudden fan start, do not touch the impeller or rotor after electrifying;
- It takes a few seconds for the fan to start after power on. Do not touch the impeller or rotor while powered or operating at low speed;
- For fan EMC compliance with EN 55014, an additional magnetic ring is required on the power line;
- Persons lacking physical, mental or sensory abilities, practical experience or expertise must not use the fan unless directed by a person responsible for their safety. Keep out of reach of children;
- If the power line is damaged, the manufacturer must replace the power cord;
- As a part of the fan, the motor cannot be used alone without impeller or load;
- After the product packaging has been disassembled, it should be repackaged if it needs to be kept in storage. Store it in a clean, well-ventilated warehouse at -40°C to +80°C, relative humidity no more than 95%, with no corrosive gases in the air, and at least 15 cm above the ground.
