Suzhou Blauberg Motoren Technology Co., Ltd. is one of the leading manufacturers and suppliers of blauberg sy-f180e-ec-05 180mm ec single inlet centrifugal blower in China. Welcome to buy bulk high quality customized products made in China here and get quotation from our factory. For price consultation, contact us.

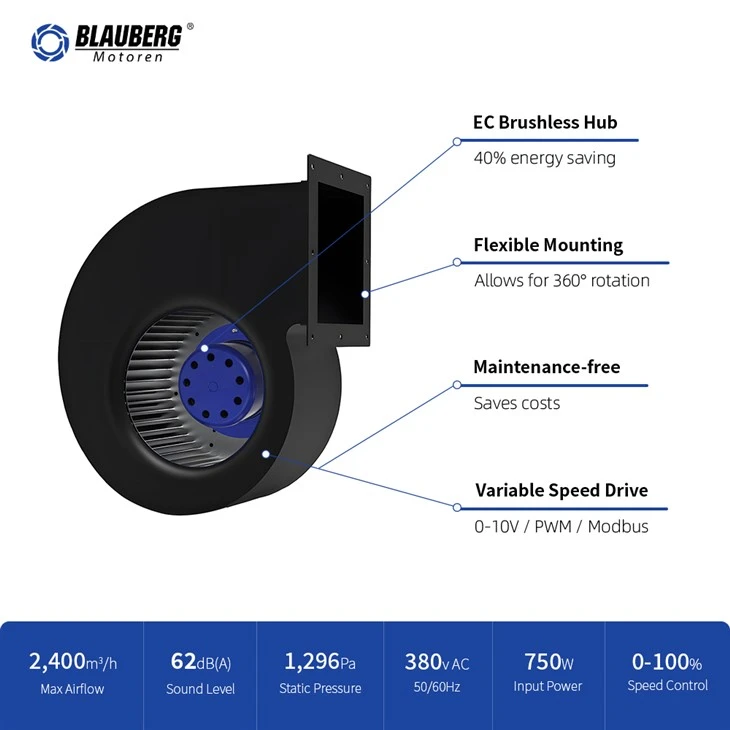

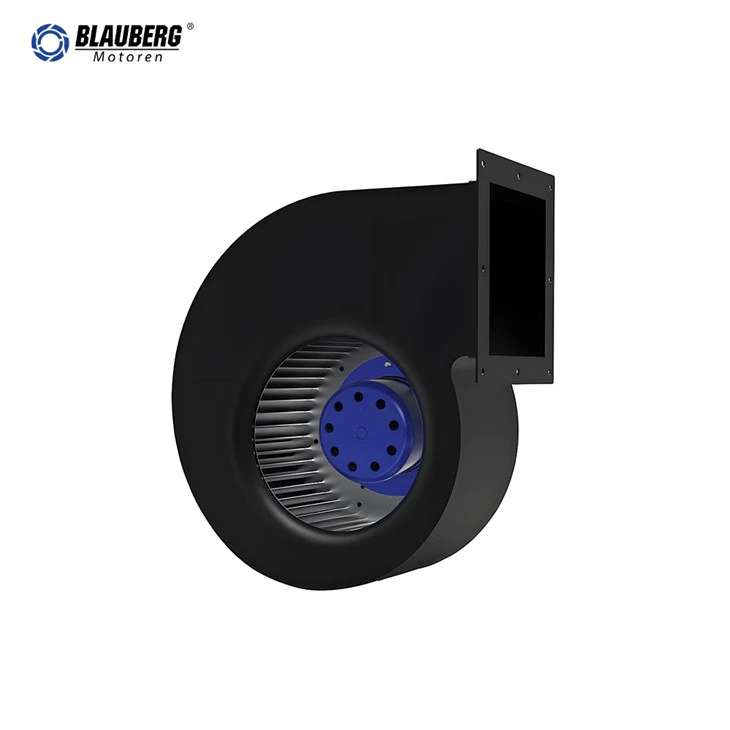

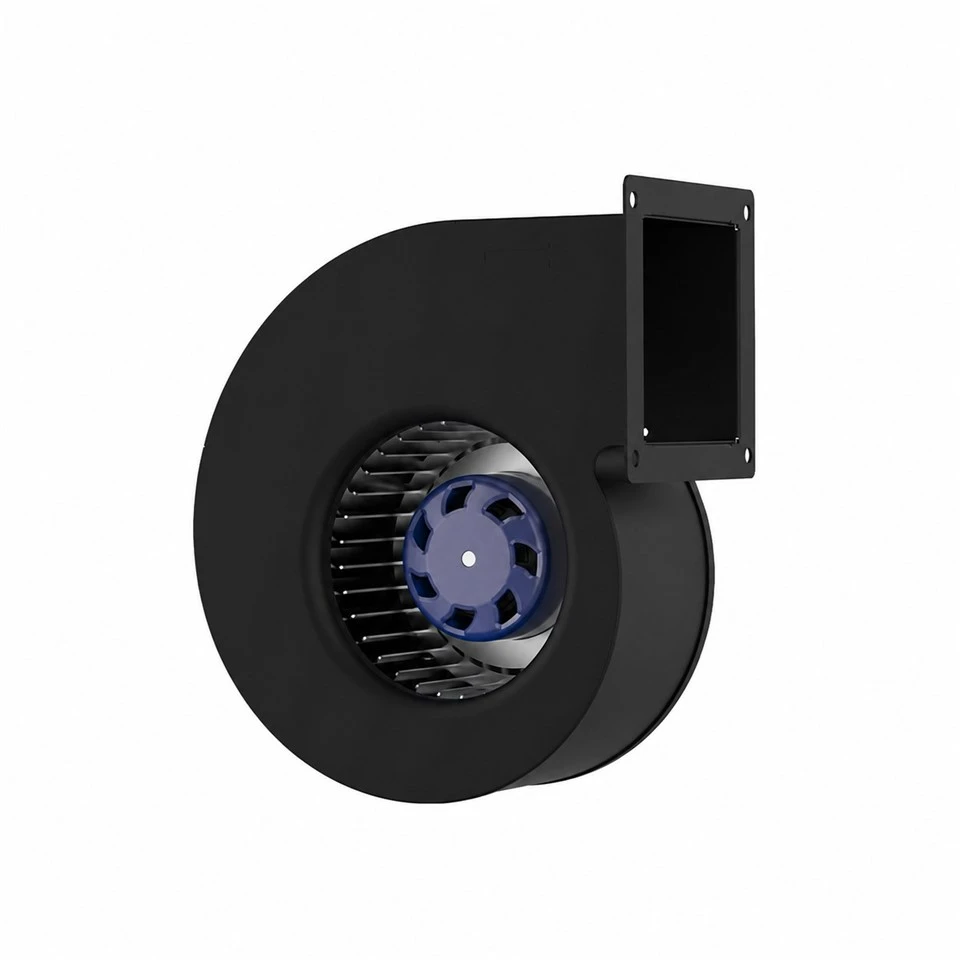

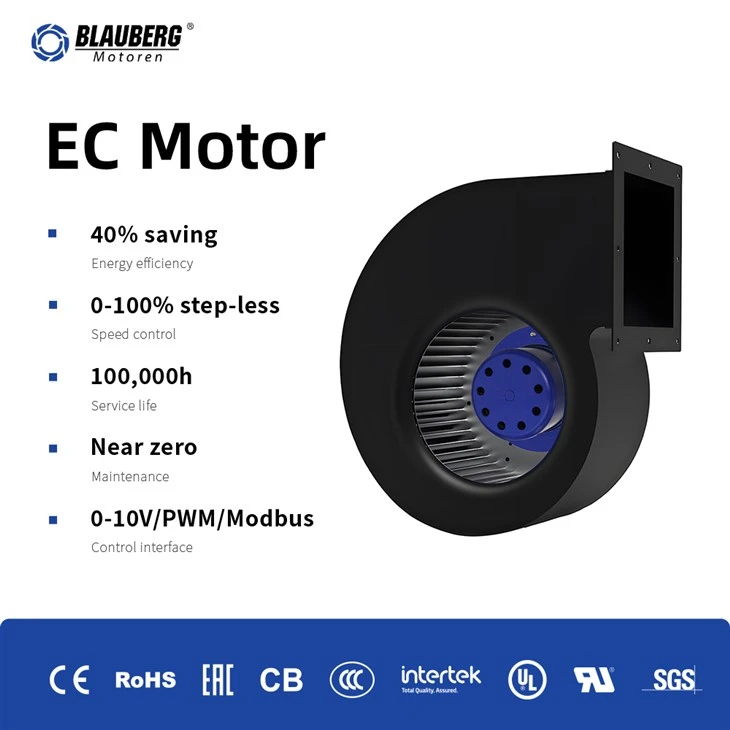

Basic Info
| Model | SY-F180E-EC-05 | Product Type | EC Backward Curved Centrifugal Blower |
| Brand | Blauberg | Place of Origin | Germany |
| Certification | CCC, CE | Compliance | RoHS |
Rated Data
| Phase | 3~ | Rated Voltage | 380 VAC |
| Frequency | 50/60 Hz | Rated Speed | 3000 RPM |
| Maximum Input Power | 520 W | Maximum Input Current | 1.0 A |
| Sound Level | 81 dBA | Ambient Temperature | -25 to +60 deg C |
Technical Description
| Motor Type | External rotor EC motor | Motor Size | 102 |
| Weight | Not specified | Packaging | Not specified |
| Fan Dimensions | 262.3 x 206 x 302 mm | Impeller Material | Metal |
| Number of Blades | Not specified | Air Flow Direction | All around; straight forward from air outlet |
| Rotation | Clockwise, viewed toward rotor | Rotor Surface | Blue plastic spraying |
| Protection Class | IP55 | Insulation Class | Class F |
| Duty / Bearing | S1 / Ball bearing | Installation Position | Any |
| Storage Temperature | -40 to +80 deg C | Humidity | 5%-90% RH; storage 5%-90% RH |
| Technical Features | 10 VDC output; 0-10 VDC/PWM control; PFC; RS485 MODBUS-RTU; locked rotor, thermal, over/undervoltage, overcurrent and soft start protection | ||
| Cable Length | 500+/-20 mm | Dielectric Strength | 1800 VAC / 50 Hz, 1 s; leakage current <=10 mA |
| Rotor Housing | Stretch | Cooling Holes / Cut-outs | None |
Product Application
| 1 | Charging Column | 9 | Equipment Cooling Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Ventilation Unit Project |
| 3 | FFU Project | 11 | AHU Project |
| 4 | Computer Room Cooling | 12 | Air Purifier Project |
| 5 | Rail Transit Air-Conditioning | 13 | Heat Exchanger Project |
| 6 | Electrical Appliances | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Cooling Project |
| 8 | Ventilation Equipment Project | 16 | Industrial Cooling System |

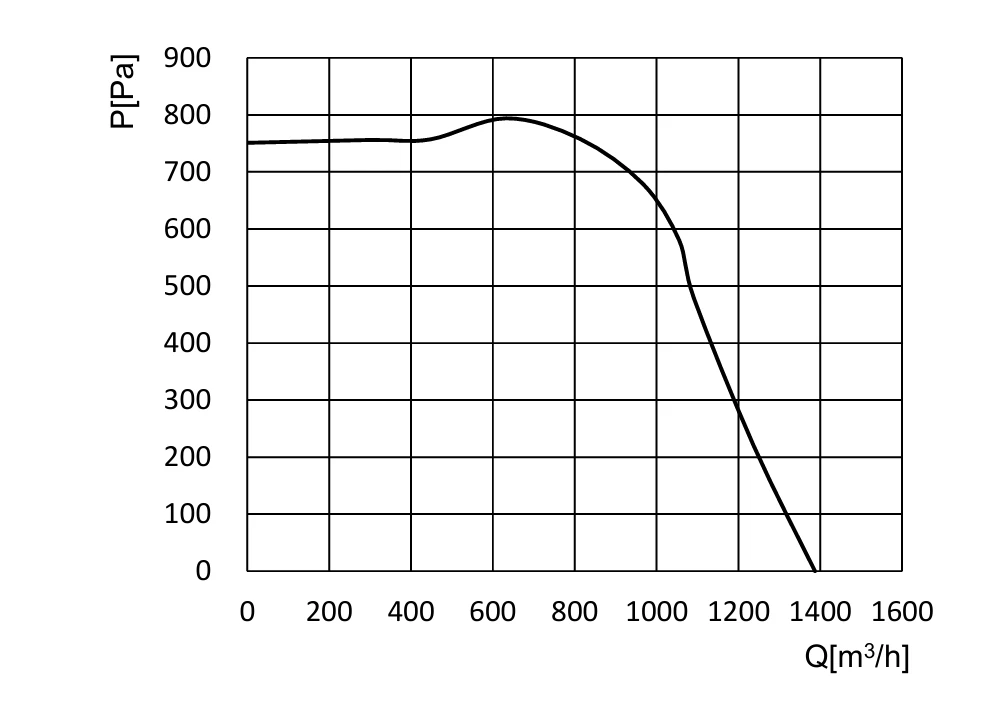

Air Performance

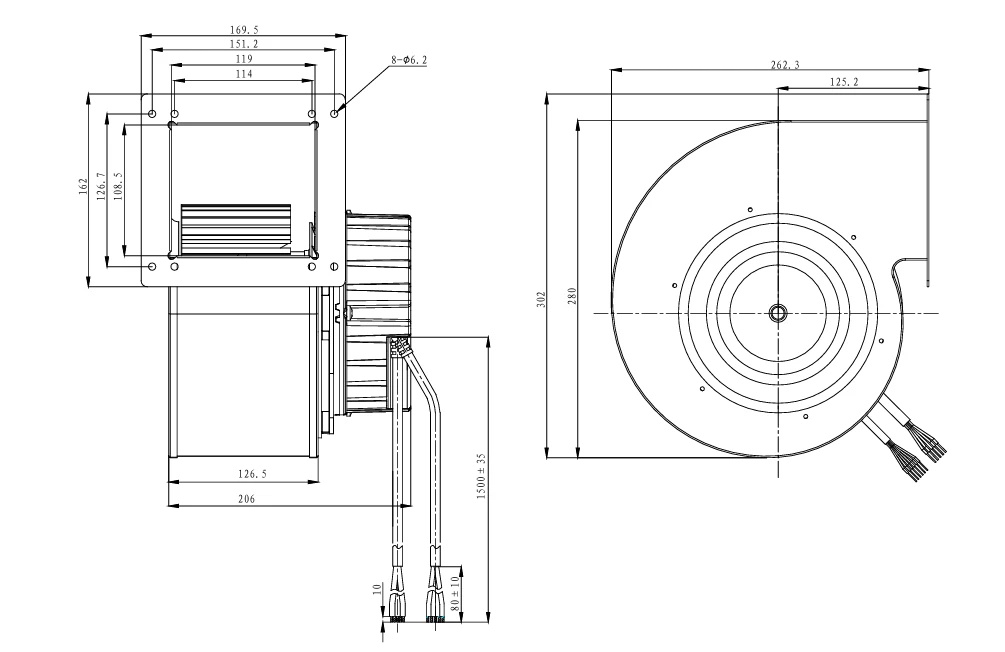

Overall Dimensions

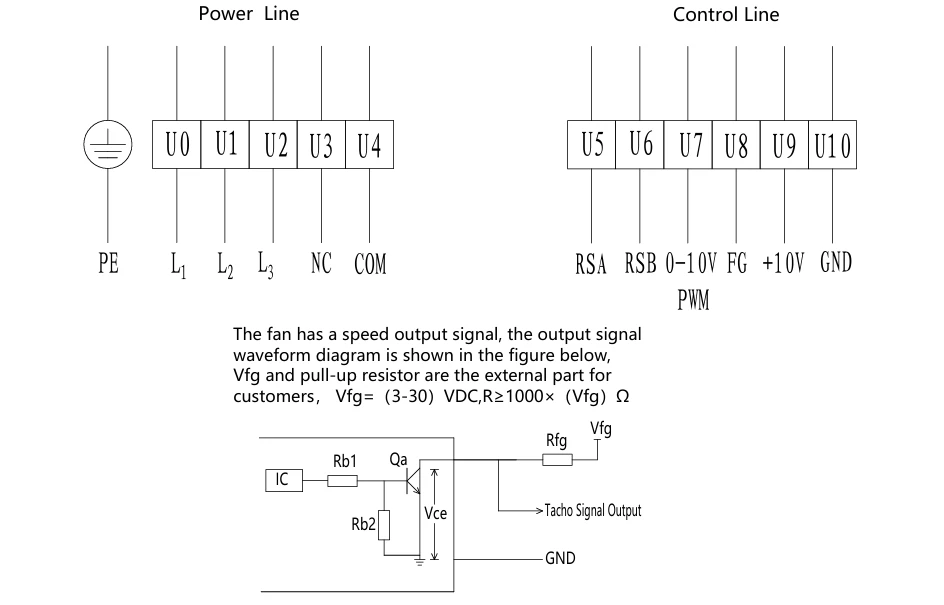

Electrical Connection
| Terminal | Function | Description |
|---|---|---|
| PE | Protective Earth | Green/yellow protective earth |
| U0 / L1 | Phase L1 | Blue live wire |
| U1 / L2 | Phase L2 | Brown live wire |
| U2 / L3 | Phase L3 | Black live wire |
| U3 / NC | Normally Closed | White switch/circuit-breaker contact |
| U4 / COM | Common | Gray common port |
| U5 / RSA | RS485 A | Brown RS485 port |
| U6 / RSB | RS485 B | Gray RS485 port |
| U7 / 0-10V PWM | Speed Control | Yellow 0-10 V/PWM control input; PWM maximum 10 V |
| U8 / FG | Signal Feedback | White RPM/tach output signal |
| U9 / +10V | Voltage Output | Red external +10 VDC output |
| U10 / GND | Control Ground | Blue control ground |
Note
- The power line and control line of the fan should be connected in strict accordance with the wiring diagram to prevent the fan from burning out;
- Do not connect the white signal wire directly to the red signal wire or the external DC power supply;
- If the fan does not work after starting, check the speed-control input voltage and wiring. To prevent injury caused by sudden fan start, do not touch the impeller or rotor after electrifying;
- It takes a few seconds for the fan to start after power on. Do not touch the impeller or rotor while powered or operating at low speed;
- For fan EMC compliance with EN 55014, an additional magnetic ring is required on the power line;
- Persons lacking physical, mental or sensory abilities, practical experience or expertise must not use the fan unless directed by a person responsible for their safety. Keep out of reach of children;
- If the power line is damaged, the manufacturer must replace the power cord;
- As a part of the fan, the motor cannot be used alone without impeller or load;
- After the product packaging has been disassembled, it should be repackaged if it needs to be kept in storage. Store it in a clean, well-ventilated warehouse at -40°C to +80°C, relative humidity no more than 95%, with no corrosive gases in the air, and at least 15 cm above the ground.
