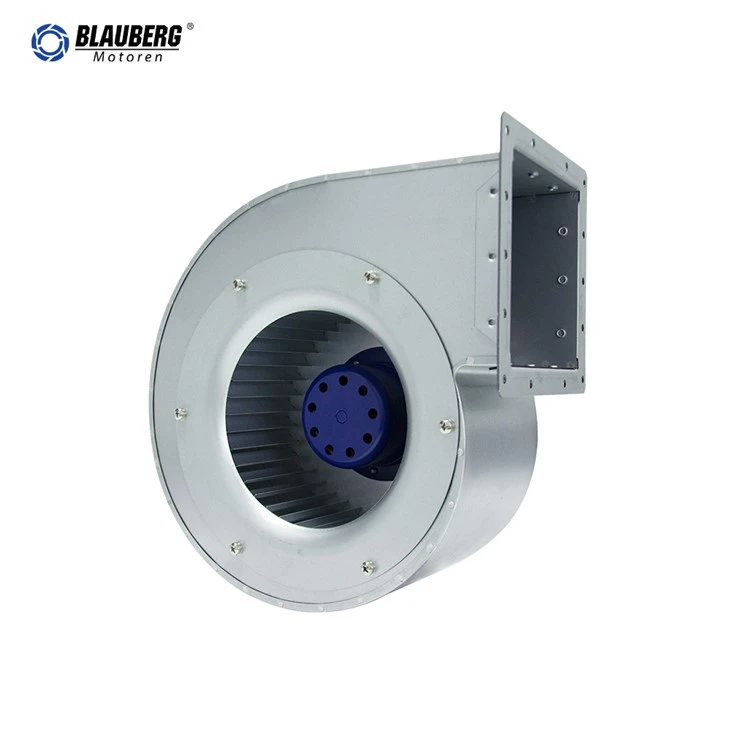

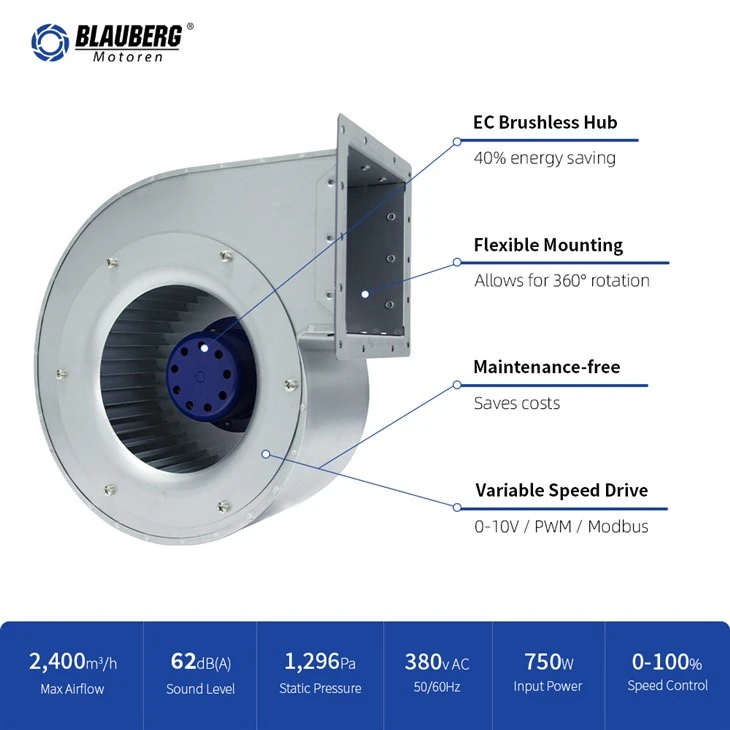

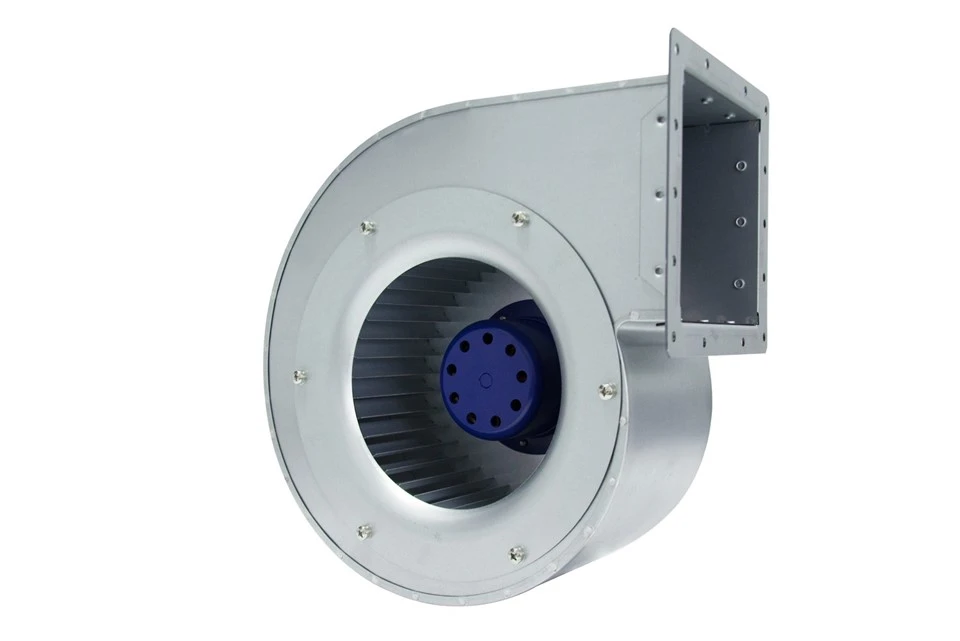

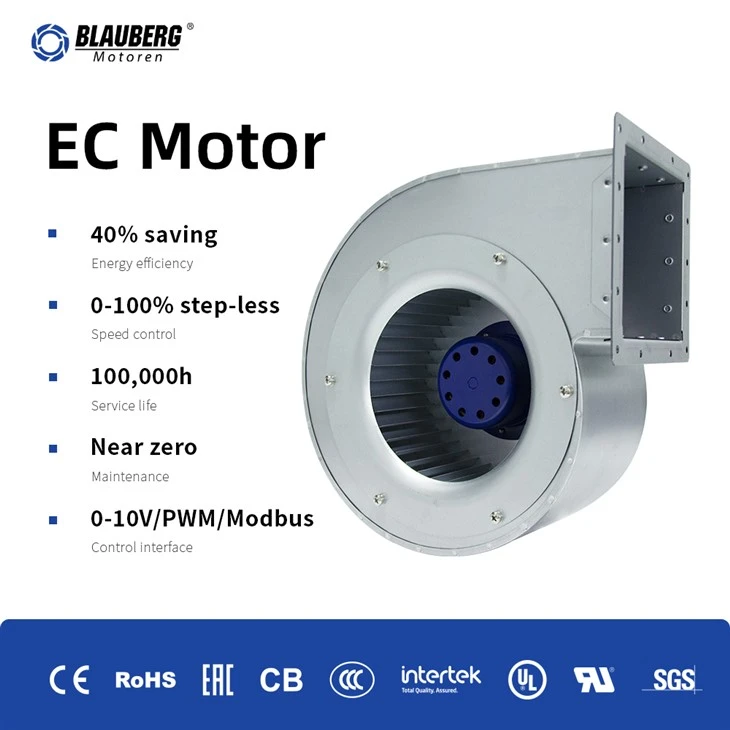

| Model | SY-F225E-EC-05 |
| Product Type | EC Forward Curved Single Inlet Centrifugal Blower |
| Motor | External-rotor EC motor |
| Phase | Three phase |
| Nominal Voltage | 380 VAC |
| Control | 0-10 VDC / PWM and RS485 |
Rated Data
| Frequency | 50/60 Hz |
| Nominal Speed | 2250 RPM |
| Max. Input Power | 750 W |
| Max. Input Current | 1.4 A |
| Sound Level | 79 dB(A) |
| Ambient Temperature | -25°C to +60°C |
Technical Description
| Fan Size (L × W × H) | 370 × 332 × 198.5 mm |
| Impeller Material | Metal |
| Rotation Direction | Clockwise, viewed toward rotor |
| Rotor Surface | Powder coating |
| Protection Degree | IP55 |
| Insulation Class | Class F |
| Operating Mode | S1 |
| Motor Bearing | Ball bearing |
| Motor Protection | Locked-rotor, thermal, high/low-voltage and overcurrent protection; soft start |
| Cable Length | 500 ±20 mm |
| Operating Humidity | 5%-90% RH |
| Impeller Axial Deviation | ≤1 mm |
| Impeller Radial Deviation | ≤1 mm |
| Conformity | CCC, CE, RoHS |
Product Application
| Charging Column | Kitchen Smoke Exhaust System |
| FFU Project | Computer Room Cooling |
| Rail Transit Air-Conditioning | Electrical Appliances |
| FanGrid Project | Ventilation Equipment Project |
| Equipment Cooling Project | Ventilation Unit Project |
| AHU Project | Air Purifier Project |
| Heat Exchanger Project | Telecom Container Project |
| Data Center Cooling Project | Industrial Cooling System |

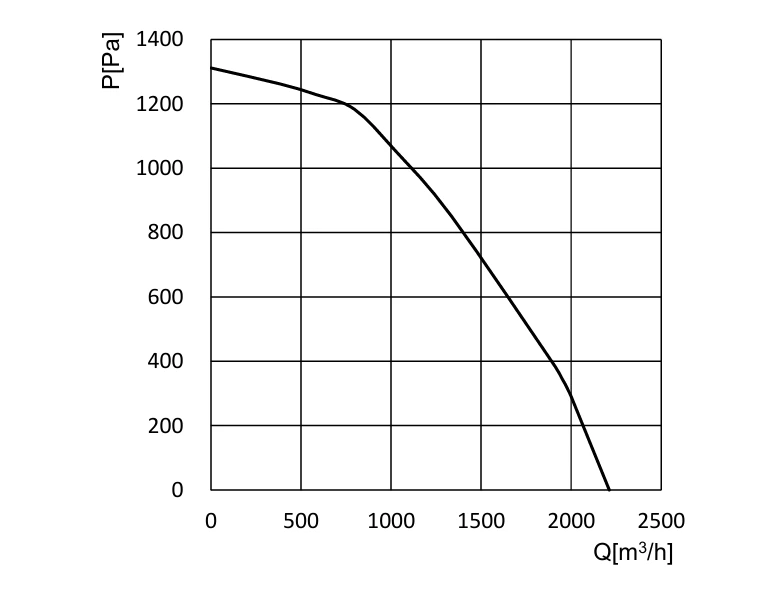

Air Performance

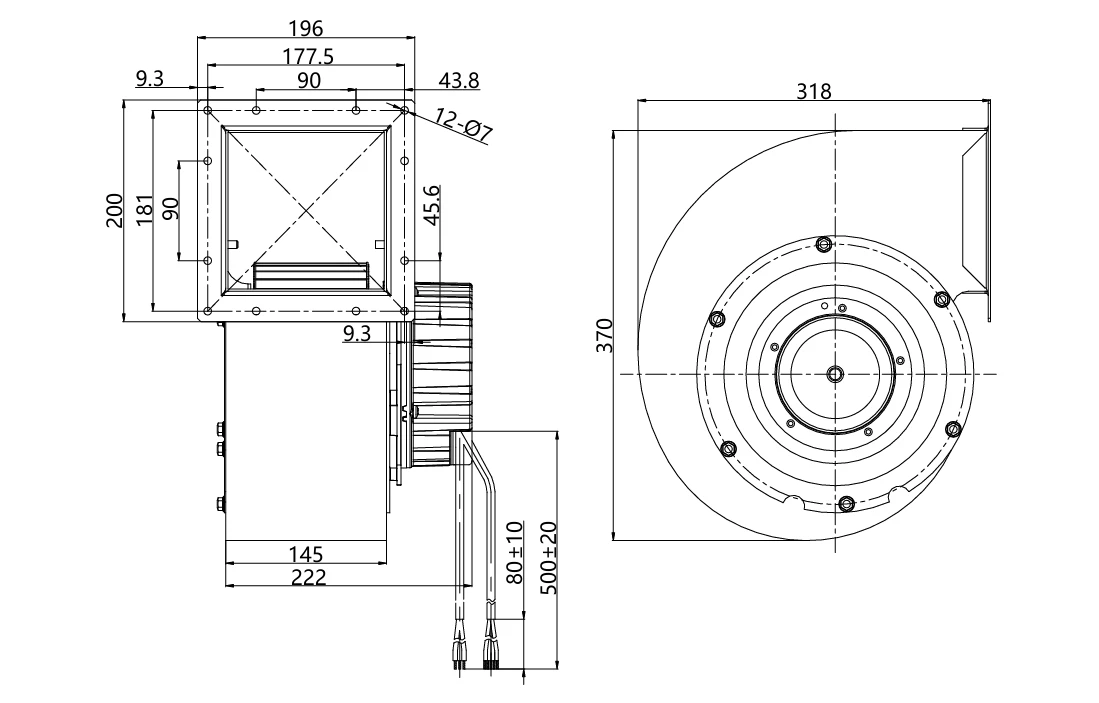

Overall Dimensions
Electrical Connection
| PE | Protective earth - green/yellow |
| U0 / L1 | Phase L1 - blue |
| U1 / L2 | Phase L2 - brown |
| U2 / L3 | Phase L3 - black |
| U3 / NC | Normally closed status contact - white |
| U4 / COM | Common status contact - gray |
| U5 / RSA | RS485 RSA - brown |
| U6 / RSB | RS485 RSB - gray |
| U7 / 0-10V PWM | Compatible speed-control input - yellow |
| U8 / FG | Speed feedback output - white |
| U9 / +10V | 10 VDC auxiliary output - red |
| U10 / GND | Control reference ground - blue |
Note
- Connect the power and control wires strictly according to the wiring diagram to prevent fan damage.
- Do not connect the white signal wire directly to the red signal wire or an external DC power supply.
- If the fan does not operate after startup, check the speed-control input voltage and wiring; do not touch the impeller or rotor while energized.
- The fan takes several seconds to start; do not touch the impeller or rotor while energized or operating at low speed.
- For EMC compliance according to EN 55014, add a ferrite core to the power cable.
- People lacking suitable physical, sensory, mental capability, or experience must use the fan only under responsible supervision; keep children away.
- A damaged power cable must be replaced by the manufacturer.
- The motor is a fan component and must not be operated alone without the impeller or load.
- After unpacking, repackage for storage in a clean, ventilated, non-corrosive environment at -40°C to +80°C and up to 95% RH, at least 15 cm above ground.
