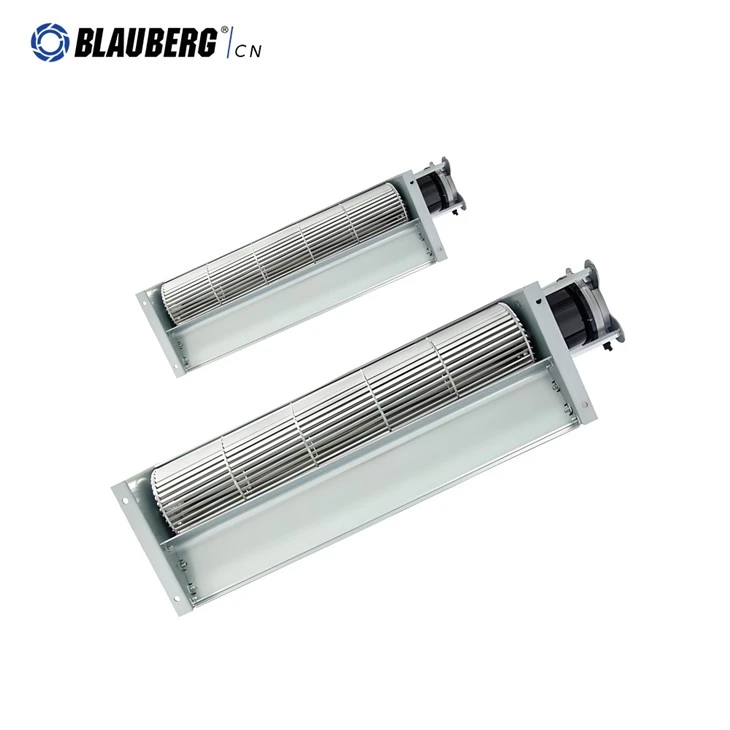

Suzhou Blauberg Motoren Technology Co., Ltd. is one of the leading manufacturers and suppliers of ec 100mm energy-efficient cross-flow fan for air conditioner cooling in China. Welcome to buy bulk high quality customized products made in China here and get quotation from our factory. For price consultation, contact us.
Basic Info
|
Model Part No. |
Operating Voltage VAC |
Frequency Hz |
Rated Current A |
Rated Power W |
Rated Speed RPM |
Air Flow M/H |
Air Pressure Pa |
Sound Level dB(A) |
Air Outlet Length(C) mm |
Pitch Row(B) mm |
Total Length(A) mm |
| VL-T100A-EE-380(L000)A | 1~200-277 | 50/60 | 0.31 | 50.0 | 1500 | 710 | 62 | 58 | 380 | 400 | 487 |
| VL-T100A-EE-464(L000)B | 1~200-277 | 50/60 | 0.36 | 60.0 | 1500 | 850 | 61 | 61 | 466 | 484 | 571 |
| VL-T100A-EE-580(L000)C | 1~200-277 | 50/60 | 0.52 | 85.0 | 1500 | 1050 | 59 | 62 | 580 | 600 | 687 |
| VL-T100A-EE-680(L000)D | 1~200-277 | 50/60 | 0.55 | 90.0 | 1500 | 1200 | 59 | 61 | 680 | 700 | 787 |
| VL-T100A-EE-780(L000)E | 1~200-277 | 50/60 | 0.71 | 115.0 | 1500 | 1350 | 58 | 63 | 780 | 800 | 887 |
Technical Description
| Dimension: | 380*400*487mm | Mode of operation: | S1 |
| Materials Impeller: | Metal | Bearing: | ball bearings |
| Materials Housing: | SPCC+S45C | Motor protection: | self-resetting TOP wired internally |
| Direction of rotation : | clockwise,seen on rotor | Air Flow: | 710 M³/H |
| Number of Blades: | – | Static Pressure: | 62 Pa |
| Speed Control: | 0-10VDC PWM | Life Expectance: | 50,000 Hours(L10) |
| Operating Voltage: | 16~28 VDC | Operating Humidity: | 5%-90% RH |
| Type of protection: | IP20 | Signal Output: | FG (Frequency Generator) |
| Insulation class: | B | Authentication: | UL,CE,ROHS,CCC,ISO |
Product Application
| 1 | Charging Column | 9 | Equipments Cooling Project |
| 2 | Kitchen smoke exhaust system | 10 | Ventilation Unit Project |
| 3 | FFU Project | 11 | AHU(Air Handing Unit)Project |
| 4 | Computer room cooling | 12 | Air Purifier Project |
| 5 | Air-conditioned fan for rail transit carriers | 13 | Heater Exchanger Project |
| 6 | Electrical appliances | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Cooling Project |
| 8 | Ventilation Equipments Project | 16 |

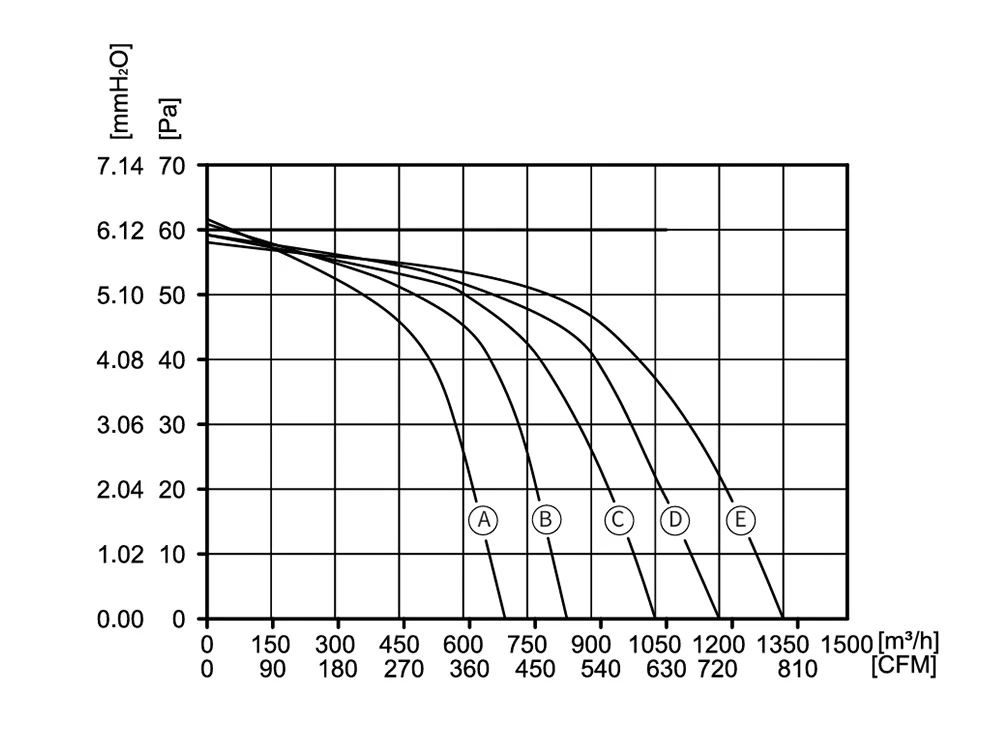

P-Q

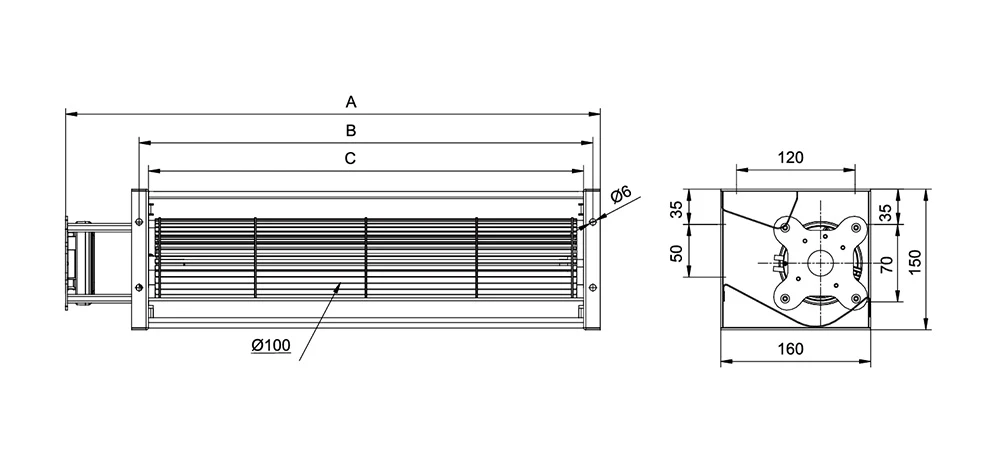

Overal Dimmensions
Electrical Connection
Download
Cross-flow Fan Catalog
