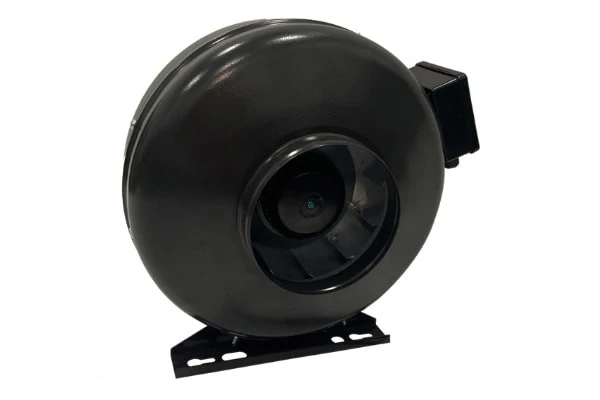

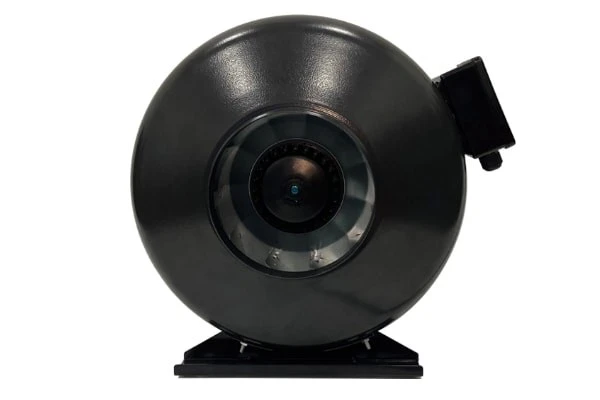

Inline Fan Exhaust Air Valve for Scandinavian Rekuperator Toilet Positive Pressure Ventilation

Suzhou Blauberg Motoren Technology Co., Ltd. is one of the leading manufacturers and suppliers of inline fan exhaust air valve for scandinavian rekuperator toilet positive pressure ventilation in China. Welcome to buy bulk high quality customized products made in China here and get quotation from our factory. For price consultation, contact us.





Model No.	QL-P150D-2E-A01-01	Flow Direction	Centrifugal
Pressure	Low Pressure	Remote Control	Without Remote Control
Usage	For Experiment,for Air Conditioner,for Manufacture	Fan Type	AC Duct Fan
Package	Pallet	Package Size	110*110*110cm
Trademark	Blauberg	Origin	China
HS Code	8414593000	Production Capacity	50000/year





Dimension:	384mmX396X236mm	Mode of operation:	S1
Materials Impeller:	Metal	Bearing:	ball bearings
Materials Housing:	Metal	Motor protection:	self-resetting TOP wired internally
Direction of rotation :	clockwise,seen on rotor	Air Flow:	440 M³/H
Number of Blades:	7	Static Pressure:	350 Pa
Speed Control:	0-10V DC/PWM	Life Expectance:	50,000 Hours(L10)
Operating Voltage:	184-270 VAC	Operating Humidity:	5%-90% RH
Type of protection:	IP32	Signal Output:	FG (Frequency Generator)
Insulation class:	F	Authentication:	UL,CE,ROHS,CCC,ISO





1	Charging Column	9	Equipments Cooling Project
2	Kitchen smoke exhaust system	10	Ventilation Unit Project
3	FFU Project	11	AHU(Air Handing Unit)Project
4	Computer room cooling	12	Air Purifier Project
5	Air-conditioned fan for rail transit carriers	13	Heater Exchanger Project
6	Electrical appliances	14	Telecom Container Project
7	FanGrid Project	15	Data Center Cooling Project
8	Ventilation Equipments Project	16

















QL-P150D-2E-A01-01 Product Specification
