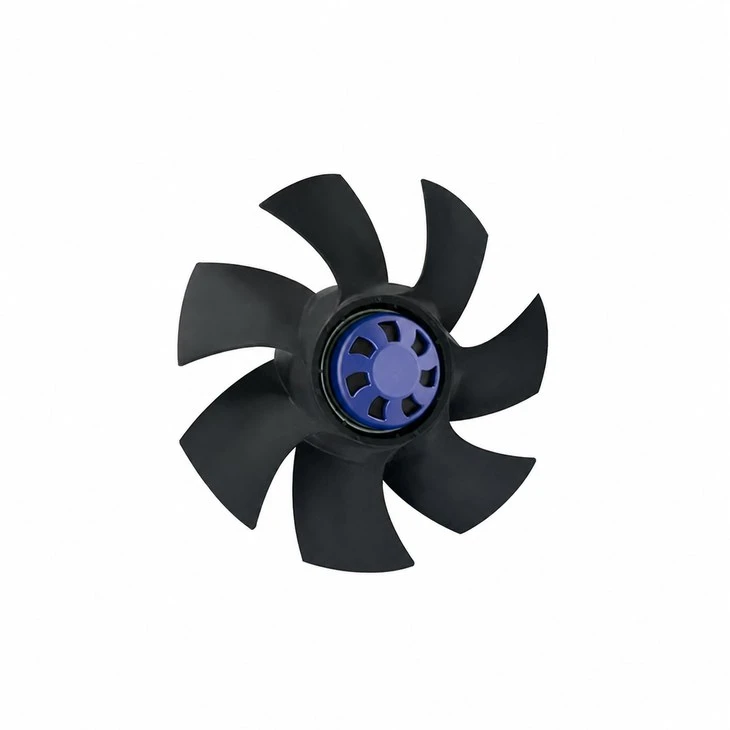

BC-A200C-EC-00 is a 200 mm EC axial fan with an external-rotor EC motor, rated for 115 VAC, 50/60 Hz operation with 0-10 V / PWM-compatible speed control.
Basic Info
| Model No. | BC-A200C-EC-00 | Product Type | EC Axial Fan |
| Rated Voltage | 115 VAC | Frequency | 50/60 Hz |
| Phase | 1 phase | Rated Speed | 2780 RPM |
| Maximum Input Power | 55 W | Maximum Input Current | 0.78 A |
| Sound Level | 60 dBA | Ambient Temperature | -25 to +60 °C |
| Protection Rating | IP55 | Certification | CCC |
Technical Description
| Dimension | 197 × 197 × 72.4 mm | Mode of Operation | S1 |
| Impeller Material | Plastic | Bearing | Ball bearings |
| Motor | External-rotor EC motor | Rotor Surface | Plastic spraying |
| Direction of Rotation | Counterclockwise, viewed from rotor side | Cable Length | 500 ±20 mm |
| Speed Control | 0-10 V and PWM compatible | Signal Output | RPM output, 2 pulses/revolution |
| Operating Voltage | 115 VAC | Operating Humidity | 5%-90% RH |
| Protection Functions | Locked rotor, thermal, low-/over-voltage, overcurrent and soft start | Type of Protection | IP55 |
| Insulation Class | B | Materials Compliance | RoHS |
Product Application
| 1 | Charging Column | 2 | Kitchen Smoke Exhaust System |
| 3 | FFU Project | 4 | Computer Room Cooling |
| 5 | Air-Conditioned Fan for Rail Transit Carriers | 6 | Electrical Appliances |
| 7 | FanGrid Project | 8 | Ventilation Equipment Project |
| 9 | Equipment Cooling Project | 10 | Ventilation Unit Project |
| 11 | AHU (Air Handling Unit) Project | 12 | Air Purifier Project |
| 13 | Heat Exchanger Project | 14 | Telecom Container Project |
| 15 | Data Center Cooling Project | 16 | Control Cabinet Cooling Project |

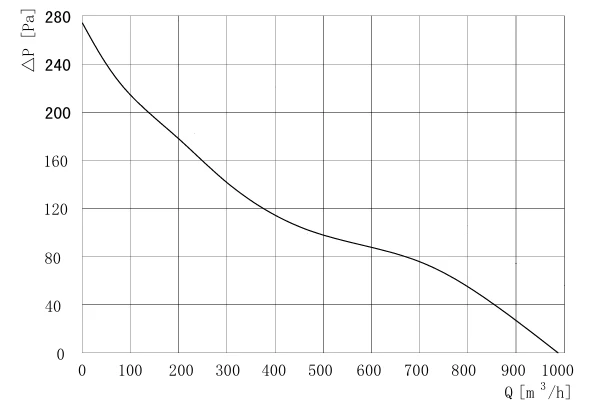

Air Performance
Air performance curve range: 0-1000 m³/h airflow and 0-280 Pa pressure.

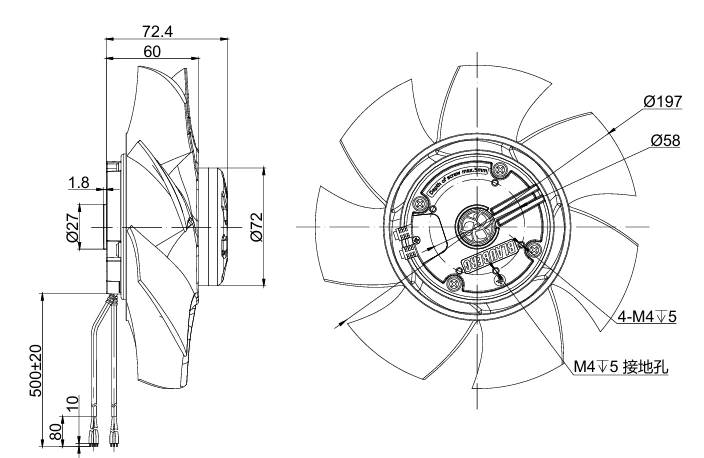

Overall Dimensions
Overall dimensions: 197 × 197 × 72.4 mm. Drawing callouts: Ø197 mm, Ø58 mm, Ø72 mm, Ø27 mm; 4 × M4 mounting holes; M4 grounding hole; cable length 500 ±20 mm.

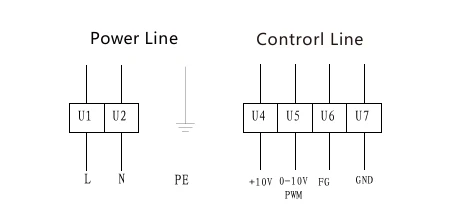

Electrical Connection
| Connection | Color | Function |
|---|---|---|
| PE | Green/Yellow | Protective Earth |
| U1 / L | Brown | Live Wire |
| U2 / N | Blue | Neutral Wire |
| U4 / +10V | Red | External Output +10 VDC |
| U5 / Speed Control | Yellow | 0-10 V and PWM compatible; PWM maximum 10 V |
| U6 / Signal Feedback | White | RPM output; two pulses per revolution |
| U7 / GND | Blue | GND |
Download
BC-A200C-EC-00 Product Specification
