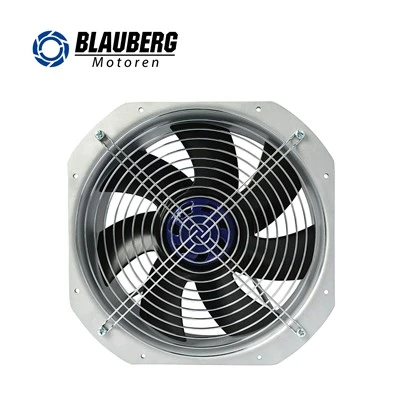

BL-A250C-EC-00 is a 250 mm EC axial fan with 230 VAC nominal supply, IP55 protection and 0–10 VDC/PWM speed control.
Basic Info
| Model No. | BL-A250C-EC-00 | Fan Type | EC Axial Fan |
| Nominal Voltage | 230 VAC | Frequency | 50/60 Hz |
| Voltage Range | 200–277 VAC | Protection | IP55 |
Technical Description
| Dimension | 249.5 × 249.5 × 74.2 mm | Speed | 2480 ±5% RPM |
| Power | 85 W | Current | 0.61 A |
| Sound | 60 dB(A) | Temperature | -25 to +60 °C |
Product Application
| 1 | Charging Column | 9 | Equipment Cooling Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Ventilation Unit Project |
| 3 | FFU Project | 11 | AHU (Air Handling Unit) Project |
| 4 | Computer Room Cooling | 12 | Air Purifier Project |
| 5 | Air-Conditioned Fan for Rail Transit Carriers | 13 | Heat Exchanger Project |
| 6 | Electrical Appliances | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Cooling Project |
| 8 | Ventilation Equipment Project | 16 | Control Cabinet Cooling Project |
Air Performance
Measured according to AMCA210/GB1236 installation category A. Curve range: 0–1600 m³/h and 0–220 Pa.
Overall Dimensions
Ø249.5, Ø58, Ø72, Ø27, 72.4 mm depth; 500 ±20 mm cable; 4-M4 mounting points.
Electrical Connection
| PE | Green/Yellow | Protective earth |
| U1/L | Brown | Live |
| U2/N | Blue | Neutral |
| U4 | Red | +10 VDC |
| U5 | Yellow | 0–10 VDC/PWM |
| U6 | White | Tach output |
| U7 | Blue | GND |
Download
BL-A250C-EC-00 Product Specification
