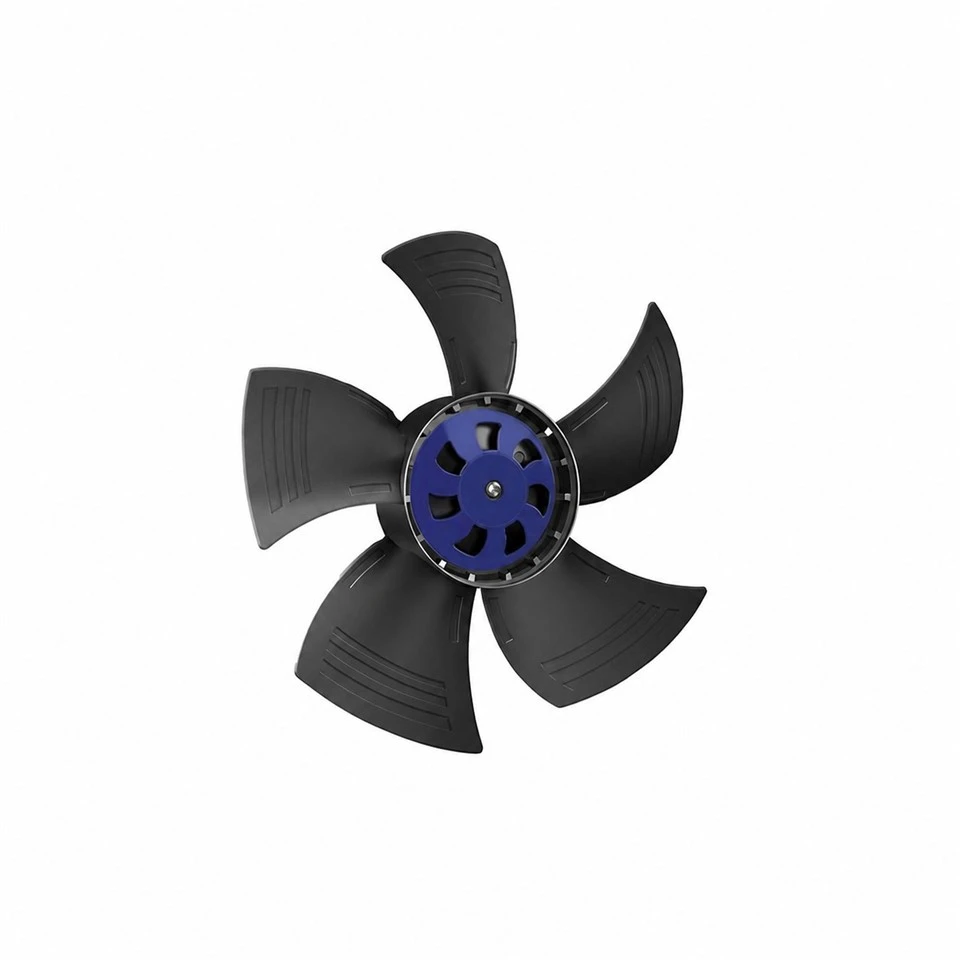

BC-A300C-EC-01 is a 300 mm EC axial fan with an external-rotor EC motor. The product specification verifies 115 VAC, 50/60 Hz operation, 2000 RPM nominal speed, a maximum input power of 150 W, and IP55 protection.

Basic Info

Model No.	BC-A300C-EC-01	Fan Type	EC Axial Fan
Rated Voltage	115 VAC	Frequency	50/60 Hz
Phase	1~	Operating Mode	S1
Nominal Speed	2000 RPM	Sound Level	67 dB(A)
Max. Input Power	150 W	Max. Input Current	2.4 A
Ambient Temperature	−25 °C to 60 °C	Compliance	CCC, CE; all components comply with RoHS

Technical Description

Dimensions	300 × 300 × 101.8 mm	Motor	External-rotor EC motor
Impeller Material	Plastic	Bearing	Ball bearings
Rotation Direction	Counterclockwise, viewed from the rotor side	Rotor Coating	Powder coating
Protection Rating	IP55	Insulation Class	Class B
Motor Protection	Locked-rotor, thermal, over-voltage, under-voltage and over-current protection; soft start	Cable Length	500 ±20 mm
Operating Humidity	5%–90% RH	Impeller Deviation	Axial ≤0.5 mm; radial ≤0.5 mm

Product Application

1	Charging Column	9	Equipment Cooling Project
2	Kitchen Smoke Exhaust System	10	Ventilation Unit Project
3	FFU Project	11	AHU (Air Handling Unit) Project
4	Computer Room Cooling	12	Air Purifier Project
5	Air-Conditioned Fan for Rail Transit Carriers	13	Heat Exchanger Project
6	Electrical Appliances	14	Telecom Container Project
7	FanGrid Project	15	Data Center Cooling Project
8	Ventilation Equipment Project	16	Control Cabinet Cooling Project

For ventilation and equipment cooling after system verification.

Air Performance

BC-A300C-EC-01 air performance curve

The product-specification curve shows the relationship between static pressure P (Pa) and airflow Q (m³/h). The plotted curve covers approximately 0–2,500 m³/h and 0–160 Pa.

Overal Dimmensions

BC-A300C-EC-01 overall dimensions

Overall dimensions: 300 × 300 × 101.8 mm. The outline drawing shows a 500 ±20 mm cable, Ø300 impeller diameter, Ø58 and Ø90 reference diameters, 4-M4 mounting points, 4-M6 mounting points, and an M4 ground hole.

Electrical Connection

electrical-connection

PE	Green/Yellow	Protective earth
U1 / L	Brown	Power supply, live wire
U2 / N	Blue	Power supply, neutral wire
U4 / +10V	Red	External +10 VDC output
U5 / Speed Control	Yellow	0–10 V and PWM compatible input; maximum PWM amplitude 10 V
U6 / Signal Feedback	White	Speed-output signal
U7 / GND	Blue	Control-line ground

The fan provides a speed-output signal. Vfg and the pull-up resistor are supplied externally by the customer. Vfg = (3–30) VDC; R ≥ 1000 × (Vfg) Ω.

Notes

Connect the power and control lines strictly according to the wiring diagram to prevent fan damage.
Do not connect the white signal wire directly to the red signal wire or an external DC power supply.
If the fan does not operate after start-up, check the speed-control input voltage and connections. Do not touch the impeller or rotor after power is applied.
The fan may take several seconds to start. Do not touch the impeller or rotor when power is applied or during low-speed operation.
People without appropriate safety supervision, including children, must not use this product.
If the power cable is damaged, it must be replaced by the manufacturer.
The motor must not be operated without the impeller or a load.
For storage after unpacking, repack the product and store it in a clean, ventilated, non-corrosive environment at −40 °C to +80 °C, at no more than 95% relative humidity and at least 15 cm above the ground.
Read this technical specification carefully before use.
