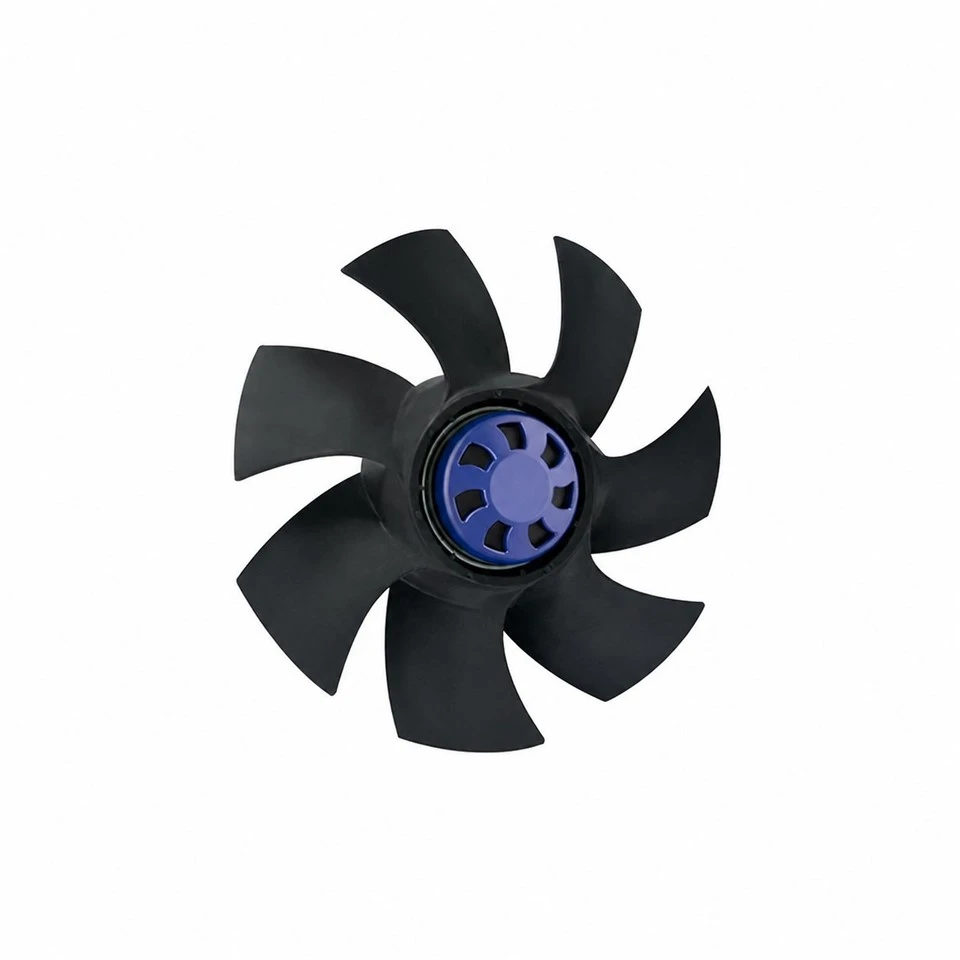

BL-A200C-EC-02 is a 200 mm EC axial fan with a 230 VAC external-rotor EC motor. The specification verifies 50/60 Hz operation, 3600 ±5% RPM nominal speed, 115 W maximum input power and IP55 protection.
Basic Info
| Model No. | BL-A200C-EC-02 | Fan Type | EC Axial Fan |
| Motor | EC072AC230V85W | Rated Voltage | 230 VAC |
| Voltage Range | 184–276 VAC | Frequency | 50/60 Hz |
| Phase | 1~ | Nominal Speed | 3600 ±5% RPM |
| Max. Input Power | 115 W | Max. Input Current | 0.85 A |
| Sound Level | 64 dB(A) | Ambient Temperature | −25 °C to 60 °C |
Technical Description
| Fan Size | 200 × 200 × 60 mm | Weight | 1.4 kg |
| Impeller | PA+GF; 7 blades | Airflow Direction | Axial |
| Rotation | Counterclockwise, viewed toward rotor | Rotor Surface | Blue plastic spraying |
| Protection / Insulation | IP55 / Class B | Bearing / Mode | Ball bearing / S1 |
| Motor Protection | Locked rotor, thermal, excessive voltage, low voltage and overcurrent protection; soft start | Cable | 500 ±20 mm |
| Humidity | Operating 5%–90% RH; storage 5%–95% RH | Standards | CCC, CE, RoHS |
Product Application
| 1 | Charging Column | 9 | Equipment Cooling Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Ventilation Unit Project |
| 3 | FFU Project | 11 | AHU (Air Handling Unit) Project |
| 4 | Computer Room Cooling | 12 | Air Purifier Project |
| 5 | Air-Conditioned Fan for Rail Transit Carriers | 13 | Heat Exchanger Project |
| 6 | Electrical Appliances | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Cooling Project |
| 8 | Ventilation Equipment Project | 16 | Control Cabinet Cooling Project |
Air Performance
Air performance is measured according to AMCA210/GB1236 installation category A. The values apply under the stated measurement conditions and may vary with installation conditions. The plotted curve covers approximately 0–1,350 m³/h and 0–400 Pa.
Overal Dimmensions
| 1 | M4 screw; maximum screw-in depth 5 mm |
| 2 | AC cable PVC 3×AWG20 |
| 3 | DC cable PVC 4×AWG24 |
Electrical Connection
| PE | Green/Yellow - protective earth |
| U1 / L | Brown - power supply live wire |
| U2 / N | Blue - power supply neutral wire |
| U4 / +10V | Red - fixed 10 VDC ±5% output, Imax 10 mA; SELV |
| U5 | Yellow - 0–10 V/PWM speed control input; PWM maximum amplitude 10 V; SELV |
| U6 | White - tach output, 2 pulses per revolution; SELV |
| U7 / GND | Blue - reference ground for the control interface; SELV |
Notes
Connect power and control wiring according to the diagram. Do not connect the white signal wire directly to the red signal wire or an external DC supply. Do not touch the impeller or rotor while energized. The motor must not be operated without an impeller or load.
Life and maintenance, warranty
Design life is 50,000 h, limited by the ball-bearing life at 40 °C. Actual life varies with temperature, humidity, installation method and load. Clean and maintain the fan every 3–6 months according to the environment. The product warranty is two years from delivery for failures caused by product quality; exclusions stated in the specification apply.
Download
BL-A200C-EC-02 Product Specification.pdf
