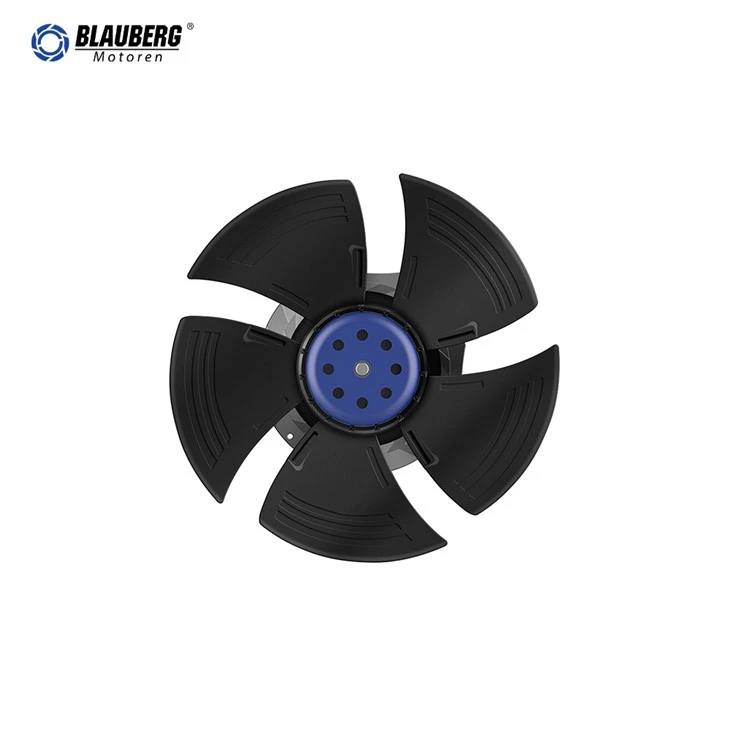

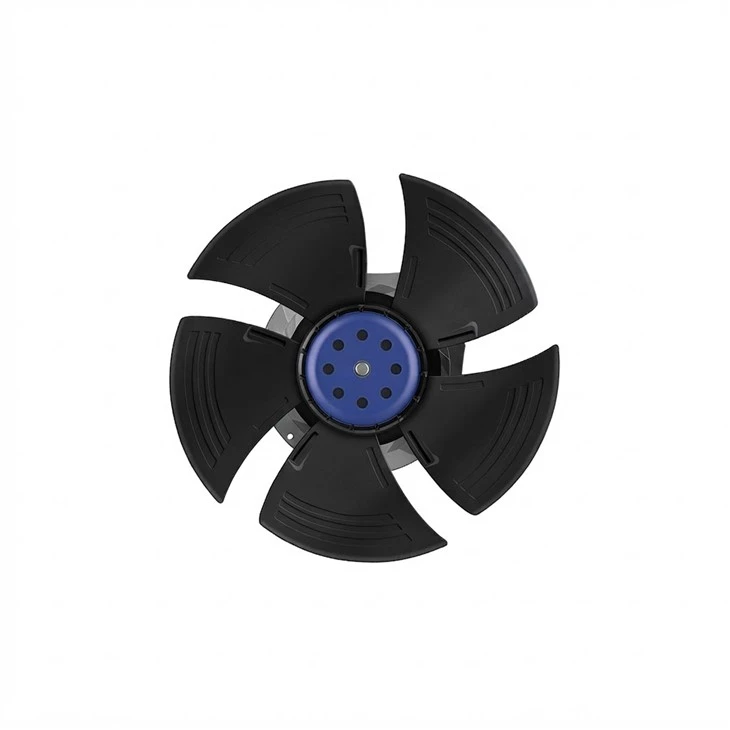

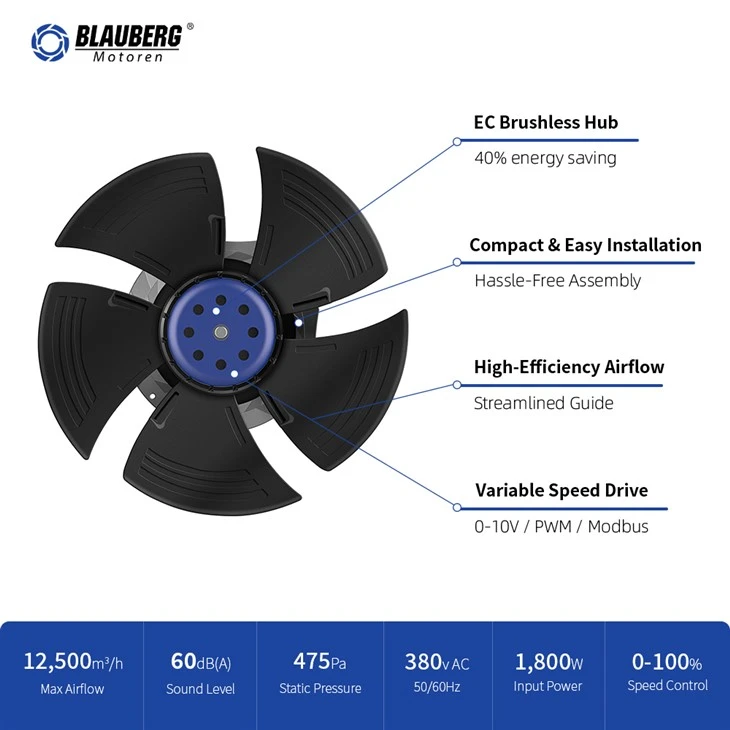

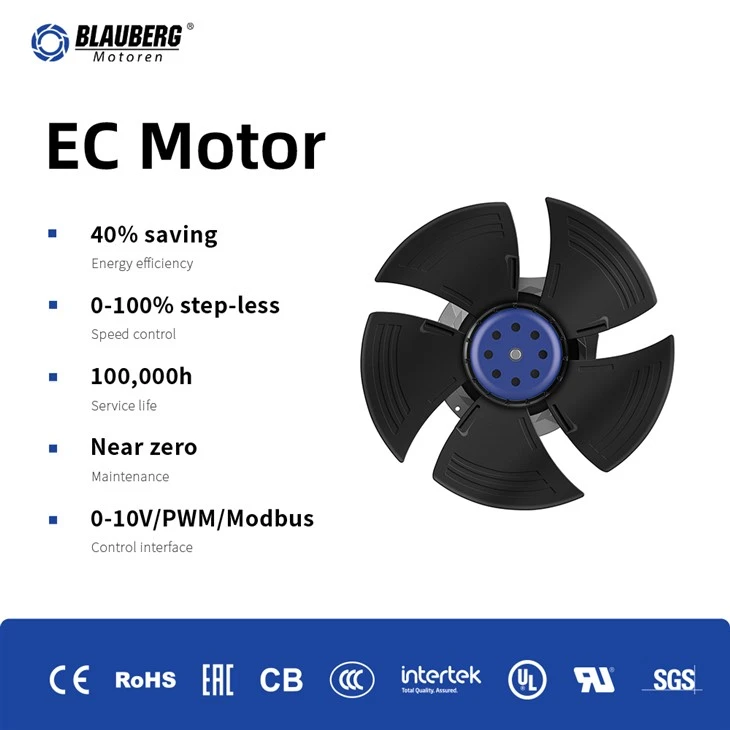

BL-A350C-EC-07 is a 350 mm EC axial fan with a 230 VAC single-phase motor. It provides axial airflow, 0–10 VDC/PWM speed control and tach signal feedback.
Basic Info
| Model No. | BL-A350C-EC-07 | Fan Type | EC Axial Fan |
| Motor | MECL09225P | Phase | 1~ |
| Nominal Voltage | 230 VAC | Frequency | 50/60 Hz |
| Voltage Range | 200–277 VAC | Data Method | FA |
| Nominal Speed | 1670 ±5% RPM | Max. Input Power | 200 W |
| Max. Input Current | 1.4 A | Sound Level | 68 dB(A) |
| Ambient Temperature | -25°C to +60°C | Protection | IP55 |
Technical Description
| Overall Dimension | 350 × 350 × 109 mm | Operating Mode | S1 |
| Impeller Material | PA66+GF | Bearing | Ball bearing |
| Number of Blades | 5 | Airflow Direction | Axial |
| Direction of Rotation | Counterclockwise, viewed toward rotor | Insulation Class | Class B |
| Control Input | 0–10 VDC / PWM | External Output | +10 VDC, max. 10 mA |
| Protection Functions | Locked rotor, thermal, over/under-voltage, overcurrent and soft start | Certifications | CCC, CE, RoHS |
Product Application
| 1 | Ventilation equipment | 9 | Air handling units |
| 2 | Equipment cooling | 10 | HVAC systems |
| 3 | Control cabinets | 11 | Heat-exchange equipment |
| 4 | Telecom enclosures | 12 | Data-center cooling |
| 5 | Air purification equipment | 13 | Refrigeration equipment |
| 6 | Industrial machinery cooling | 14 | Power electronics cooling |
| 7 | Ventilation units | 15 | Laboratory equipment |
| 8 | Electrical appliances | 16 | General forced-air ventilation |
Air Performance
Air performance is measured according to AMCA210/GB1236 installation category A. The published values are valid under the specified measuring conditions and may vary with installation. For deviations from the standard configuration, verify the parameters on the installed unit.
Overal Dimmensions

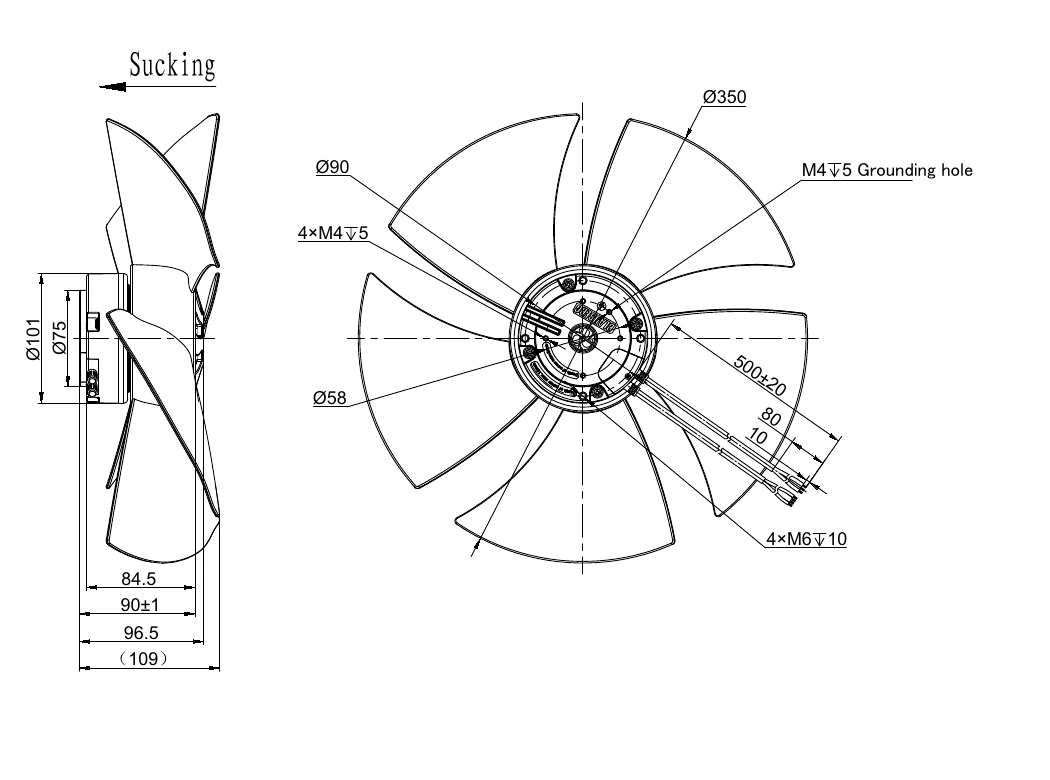

Overall dimensions: 350 × 350 × 109 mm. Refer to the outline drawing below for mounting and cable dimensions.
Electrical Connection
| Line | Connection | Colour | Function / Assignment |
|---|---|---|---|
| Power Line | PE | Green/Yellow | Protective Earth |
| Power Line | U1 / L | Brown | Live wire |
| Power Line | U2 / N | Blue | Neutral wire |
| Control Line | U4 / +10V | Red | Fixed 10 VDC output, ±5%, max. 10 mA; SELV |
| Control Line | U5 / Speed Control | Yellow | 0–10 V / PWM; max. PWM 10 V; SELV |
| Control Line | U6 / Signal Feedback | White | Tach output, 5 pulses/revolution; SELV |
| Control Line | U7 / GND | Blue | Reference ground; SELV |
The fan provides a speed output signal. Vfg and the pull-up resistor are connected by the customer. Vfg = (3.3–30) VDC; R ≥ 1000 × (Vfg) Ω.
Note
Connect the power line and control line strictly according to the wiring diagram.
Do not connect the white signal wire directly to the red signal wire or external DC power supply.
Check the speed-regulation input voltage if the fan does not operate after start; do not touch the impeller or rotor after energizing.
Allow a few seconds for the fan to start after power-on; do not touch rotating parts during power-on or low-speed operation.
Before switching on, confirm that the motor is installed reliably.
If the power cable is damaged, it must be replaced by the manufacturer.
Do not drop, strike or flush the motor.
Consult Blauberg before using specially customized products outside agreed operating conditions.
The motor casing may be hot after the fan stops; prevent burns if necessary.
Before operation, rotate the rotor by hand to confirm there is no collision or interference.
The motor must not be used alone without an impeller or load.
Store in a clean ventilated warehouse at -40°C to +80°C, max. 95% RH, free of corrosive gas and at least 15 cm above ground.
Keep this product out of reach of children.
