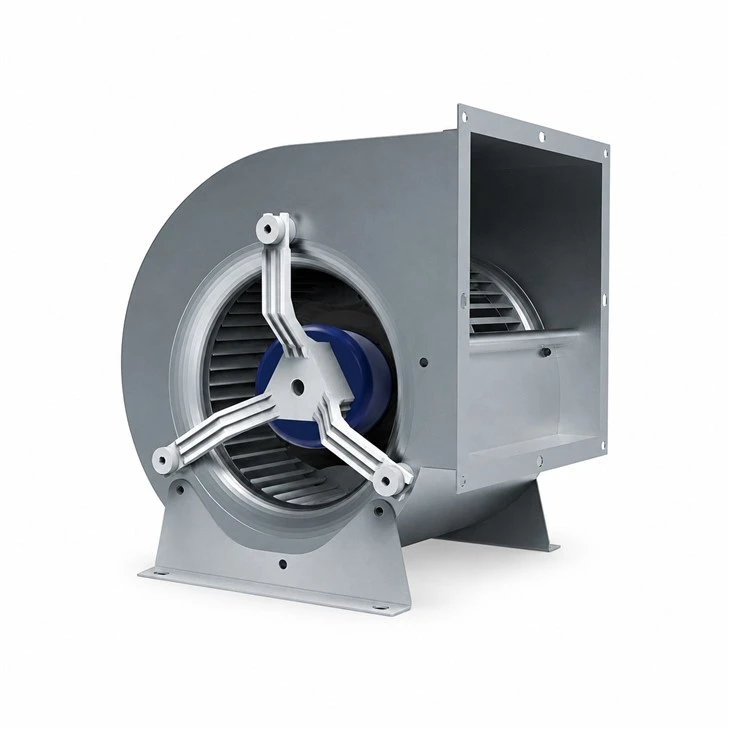

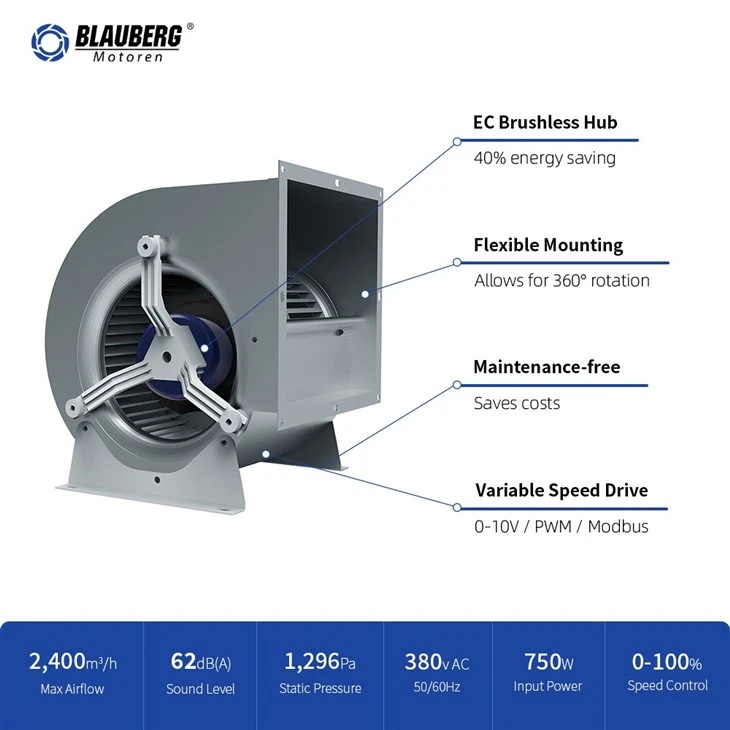

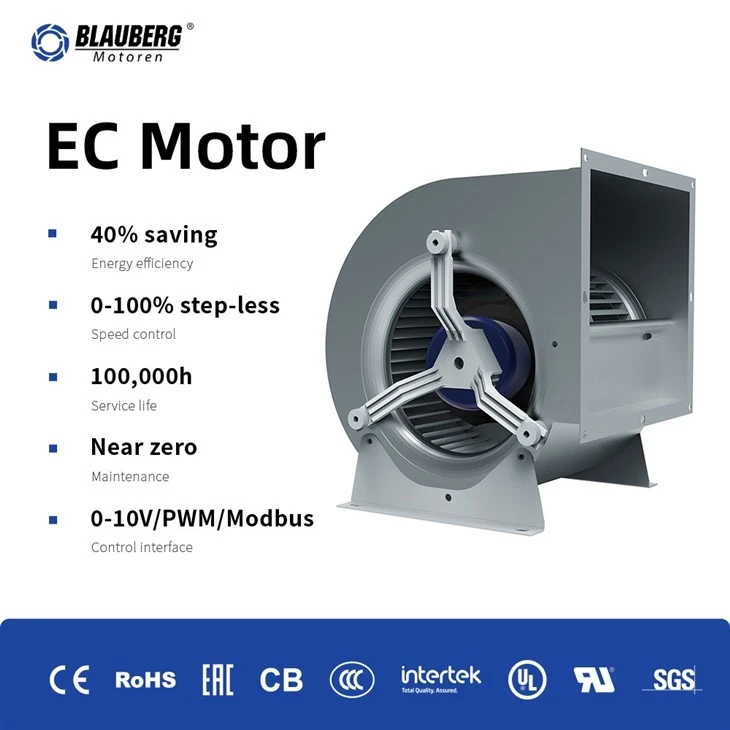

Basic Info
| Model | DL-F200E-EC-F05 | Product Type | EC Dual Inlet Centrifugal Blower |
| Phase | 1~ | Rated Voltage | 230 VAC |
| Voltage Range | 184–276 VAC | Frequency | 50/60 Hz |
| Nominal Speed | 1400 ±5% RPM | Max. Input Power | 405 W |
| Max. Input Current | 1.8 A | Sound Level | 78 dB(A) |
| Ambient Temperature | -25 to +60 °C | Certification | CCC, CE, RoHS |
| Protection | IP44 | Insulation Class | Class F |
Technical Description
| Dimensions | 313 × 324 × 284 mm | Weight | Not specified |
| Motor Model | EC102AC230V500W-35 | Motor Size | 102 mm |
| Impeller | Galvanized sheet, 38 blades | Airflow Direction | All around |
| Rotation | Clockwise, viewed toward rotor | Housing / Rotor | Stretched housing / blue powder-coated rotor |
| Mounting Position | Any position | Operating Mode | S1 continuous duty |
| Bearing | Ball bearing | Cable Length | 500 ±20 mm |
| Humidity | Operation 5%–90% RH; storage 5%–95% RH | Storage Temperature | -40 to +80 °C |
| Electrical Safety | 1800 VAC/50 Hz for 1 s; leakage ≤10 mA; touch current ≤3.5 mA | Control | 0–10 VDC / PWM; RS485 MODBUS-RTU; PFC |
| Motor Protection | Locked rotor, thermal, over/undervoltage, overcurrent and soft start | Screw Strength | Class 8.8 |
Product Application
| 1 | Charging Column | 9 | Equipment Cooling Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Ventilation Unit Project |
| 3 | FFU Project | 11 | AHU Project |
| 4 | Computer Room Cooling | 12 | Air Purifier Project |
| 5 | Rail Transit Air-Conditioning | 13 | Heat Exchanger Project |
| 6 | Electrical Appliances | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Cooling Project |
| 8 | Ventilation Equipment Project | 16 | Industrial Cooling System |
Air Performance

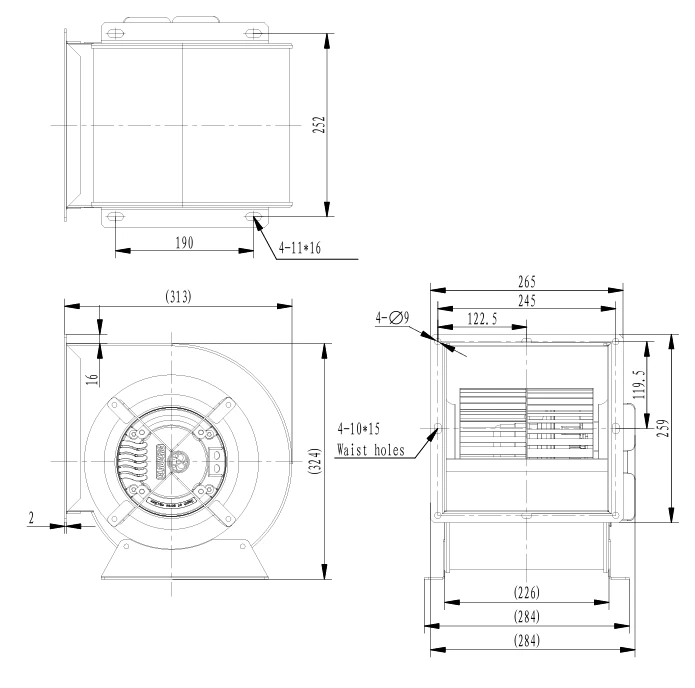

Overall Dimensions
Electrical Connection
| Line | Conn. | Designation | Colour | Function / Assignment |
| Power Line | PE | Green/Yellow | Protective earth | |
| Power Line | U1 | L | Brown | Mains power supply, live conductor |
| Power Line | U2 | N | Blue | Mains power supply, neutral conductor |
| Control Line | U4 | +10 V | Red | Fixed 10 VDC output, ±5%, max. 10 mA; external device supply; SELV |
| Control Line | U5 | Speed Control | Yellow | 0–10 V/PWM input; maximum PWM amplitude 10 V; SELV |
| Control Line | U6 | Signal Feedback | White | Tach output, 2 pulses/revolution; customisable or convertible to RD signal; SELV |
| Control Line | U7 | GND | Blue | Reference ground for control interface; SELV |
Speed Control Settings
| Control Method | Operating Condition |
| Full speed | Short the red (+10 V) and yellow (speed-control) conductors. |
| 0–10 VDC | Motor starts above 1.0 V and stops below 0.5 V. |
| PWM | Frequency 1–10 kHz; recommended amplitude 10 V ±5%. Motor starts above 10% duty and stops below 5% duty. |
| Potentiometer | A 10 kΩ potentiometer is recommended. |
Note
| 1 | Connect the power and control conductors strictly according to the wiring diagram. |
| 2 | Do not connect the white signal-feedback conductor directly to the red conductor or to an external DC power supply. |
| 3 | If the blower does not start, check the speed-control input. Prevent injury from an unexpected start and never touch the rotor while energised. |
| 4 | Startup may take several seconds. Do not touch the impeller or rotor while energised or operating at low speed. |
| 5 | Before applying power, verify that the motor and blower assembly are installed securely. |
| 6 | Do not pull the power cable. A damaged cable must be replaced by the manufacturer. |
| 7 | Do not drop or strike the motor. |
| 8 | Do not wash the motor; moisture can reduce insulation performance and create a safety hazard. |
| 9 | Consult the manufacturer before using the product outside the agreed operating conditions. |
| 10 | The motor casing may remain hot for a short time after shutdown. Take measures to prevent burns. |
| 11 | Keep the housing clean and prevent debris from entering during installation. |
| 12 | Before initial operation, rotate the rotor by hand to confirm that there is no collision, interference or jamming. |
| 13 | The motor is part of the blower and must not be operated alone without an impeller or load. |
| 14 | For storage after unpacking, repack the product and keep it at -40 to +80 °C, RH ≤95%, in a clean ventilated area free of corrosive gases and at least 15 cm above the floor. |
| 15 | Install the blower out of children's reach and do not allow children to operate it. |
| 16 | The manufacturer reserves final interpretation of this specification. |
Life and Maintenance, Warranty
| 1 | The design life is 50,000 hours, limited by ball-bearing life at 40 °C. Actual service life depends on temperature, humidity, installation, load and the operating environment. |
| 2 | Clean and maintain the blower every 3–6 months, adjusted as appropriate for the operating environment. |
| 3 | The complete product is covered by a two-year warranty from the delivery date. Product-quality failures will be repaired or replaced. Damage caused by unauthorised disassembly, improper handling, human action, natural disaster or other force majeure is excluded. |
Download
DL-F200E-EC-F05 Product Specification.pdf
