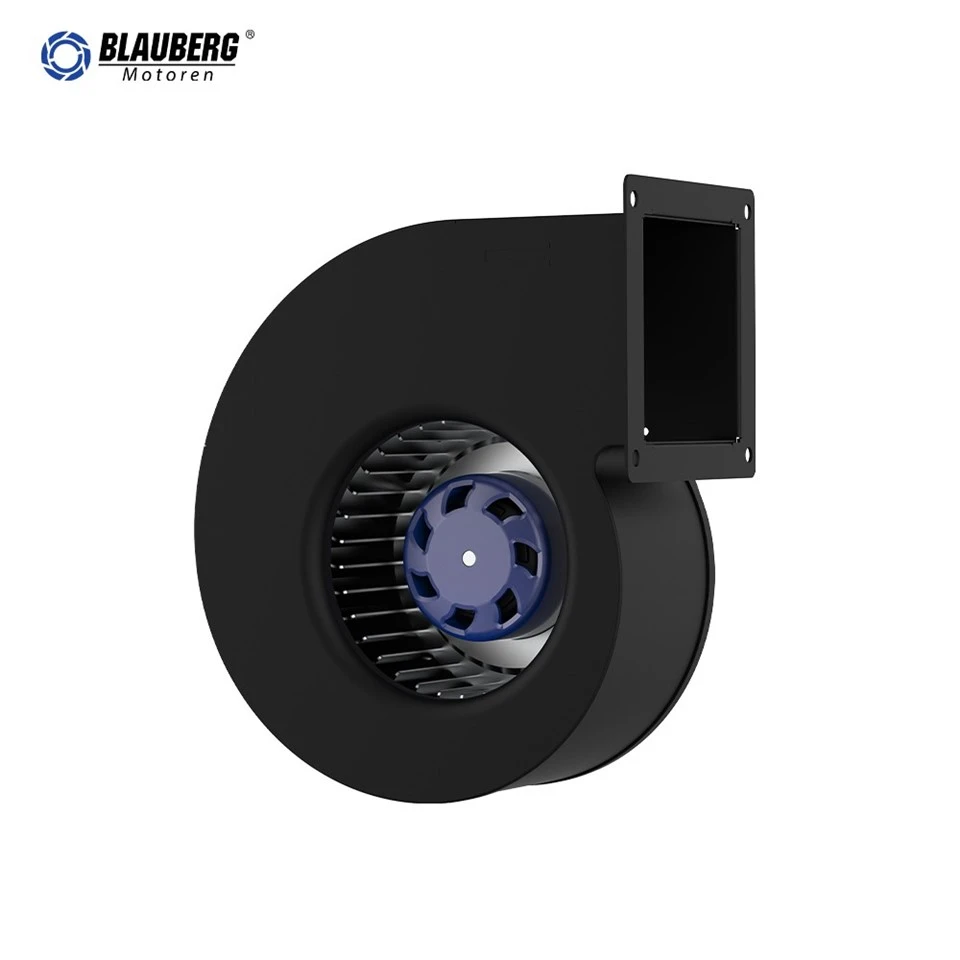

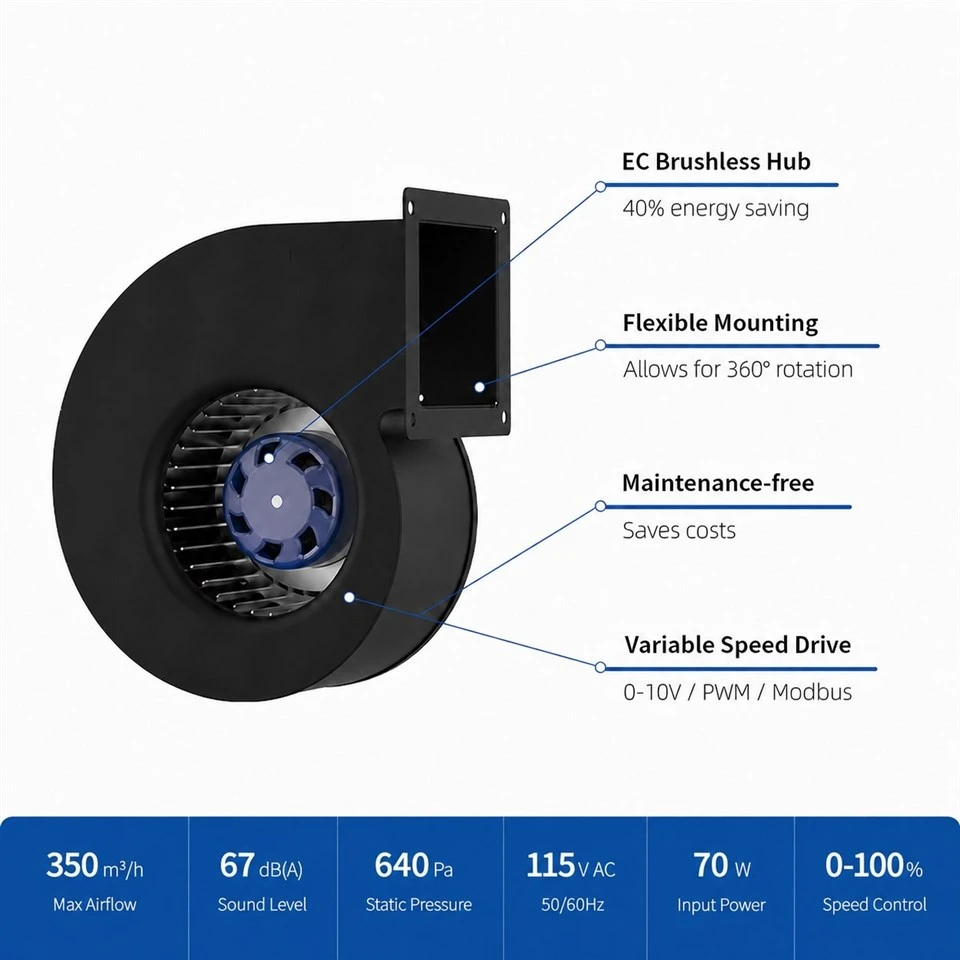

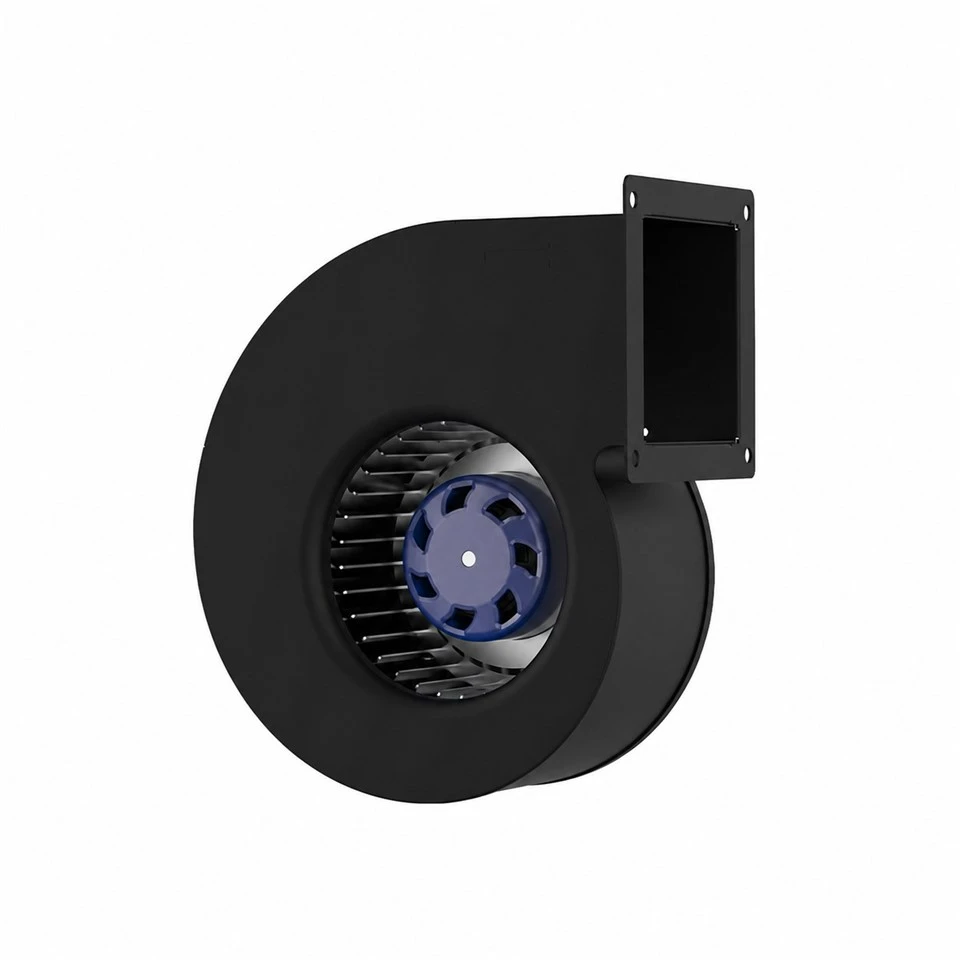

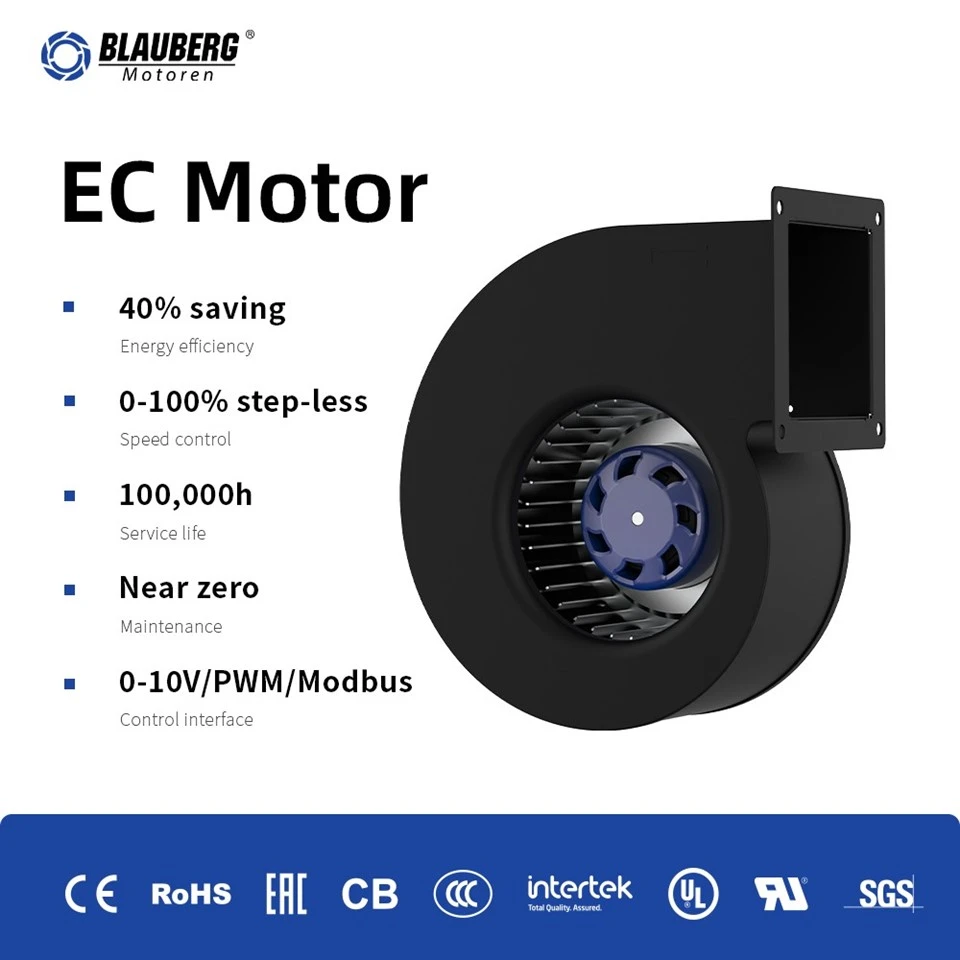

SC-F120B-EC-00 120mm EC Single Inlet Centrifugal Blower
The SC-F120B-EC-00 is a compact forward-curved EC single inlet centrifugal blower designed for ventilation, equipment cooling and air-conditioning systems. Its electronically commutated motor supports efficient variable-speed operation through 0-10 VDC or PWM control and provides a tachometer feedback output.
Basic Info
| Model No. | SC-F120B-EC-00 | Flow Direction | Centrifugal |
| Fan Type | EC Single Inlet Centrifugal Blower | Impeller Type | Forward curved |
| Application | Ventilation and equipment cooling | Operating Mode | S1 |
| Trademark | Blauberg | Origin | China |
| HS Code | 8414593000 | Production Capacity | 50000 units/year |
Rated Data
| Rated Voltage | 115 VAC | Voltage Range | 92-138 VAC |
| Frequency | 50/60 Hz | Phase | 1~ |
| Rated Speed | 2600+/-5% RPM | Maximum Input Power | 70 W |
| Maximum Input Current | 1.0 A | Sound Level | 67 dB(A) |
| Maximum Airflow | 350 m3/h | Maximum Static Pressure | 640 Pa |
| Ambient Temperature | -25 deg C to +60 deg C | Release Date | 13 December 2024 |
FA = Free Air.
Technical Description
| Fan Size (LxWxH) | 171.5x180x115 mm | Weight | 1.55 kg |
| Motor Size | 72 | Impeller Material | Galvanized steel |
| Number of Blades | 34 | Rotation | Clockwise, viewed toward rotor |
| Degree of Protection | IP55 | Insulation Class | Class B |
| Bearing | Ball bearing | Installation Position | Any |
| Transport / Storage Temperature | -40 deg C to +80 deg C | Operating Humidity | 5%-90% RH |
| Storage Humidity | 5%-95% RH | Cable Length | 500+/-20 mm |
| Control Input | 0-10 VDC / PWM, recommended PWM amplitude 10 VDC | Voltage Output | 10 VDC, max. 10 mA |
| Protection Functions | Locked-rotor, thermal, overvoltage, undervoltage and overcurrent protection; soft start | ||
| Conformity | CCC, CE, RoHS | Dielectric Strength | 1800 VAC / 50 Hz, 1 s; leakage current not more than 10 mA |
Product Application
| 1 | Charging Column | 9 | Equipment Cooling Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Ventilation Unit Project |
| 3 | FFU Project | 11 | AHU Project |
| 4 | Computer Room Cooling | 12 | Air Purifier Project |
| 5 | Rail Transit Air-Conditioning | 13 | Heat Exchanger Project |
| 6 | Electrical Appliances | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Cooling Project |
| 8 | Ventilation Equipment Project | 16 | Industrial Cooling System |
Air Performance
Air performance is measured according to AMCA 210 / GB/T 1236. Values are valid under the specified measuring conditions and may vary with installation conditions.

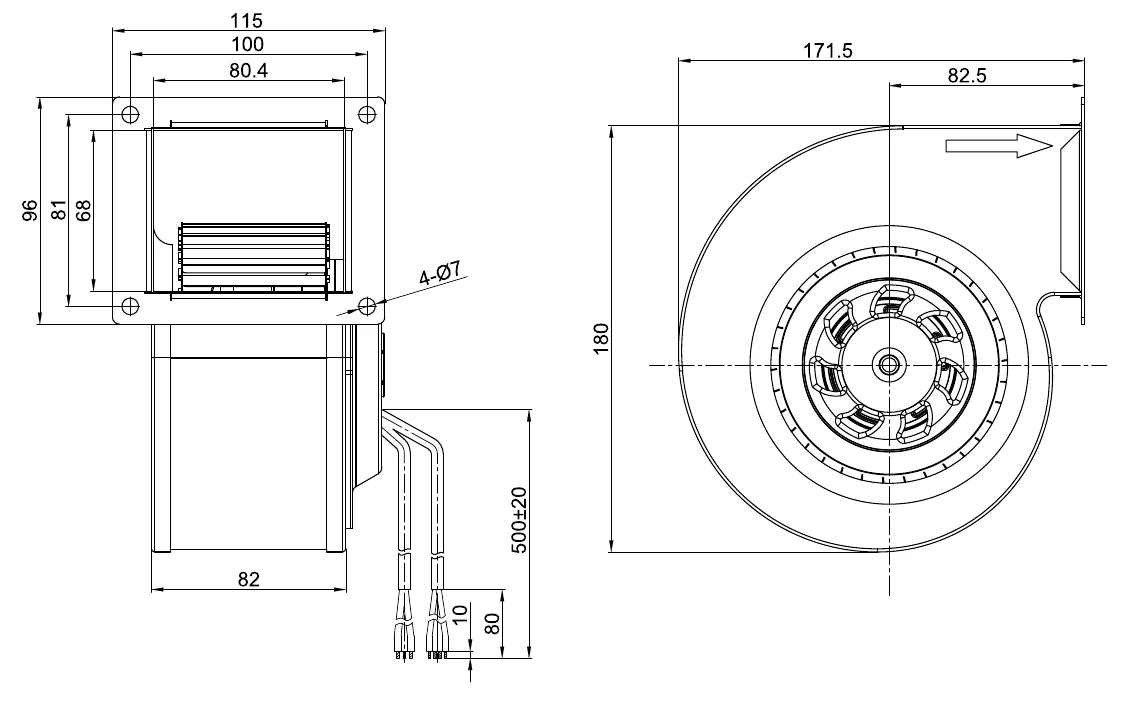

Overall Dimensions
| 1 | AC Cable PVC 3xAWG20 |
| 2 | DC Cable PVC 4xAWG24 |

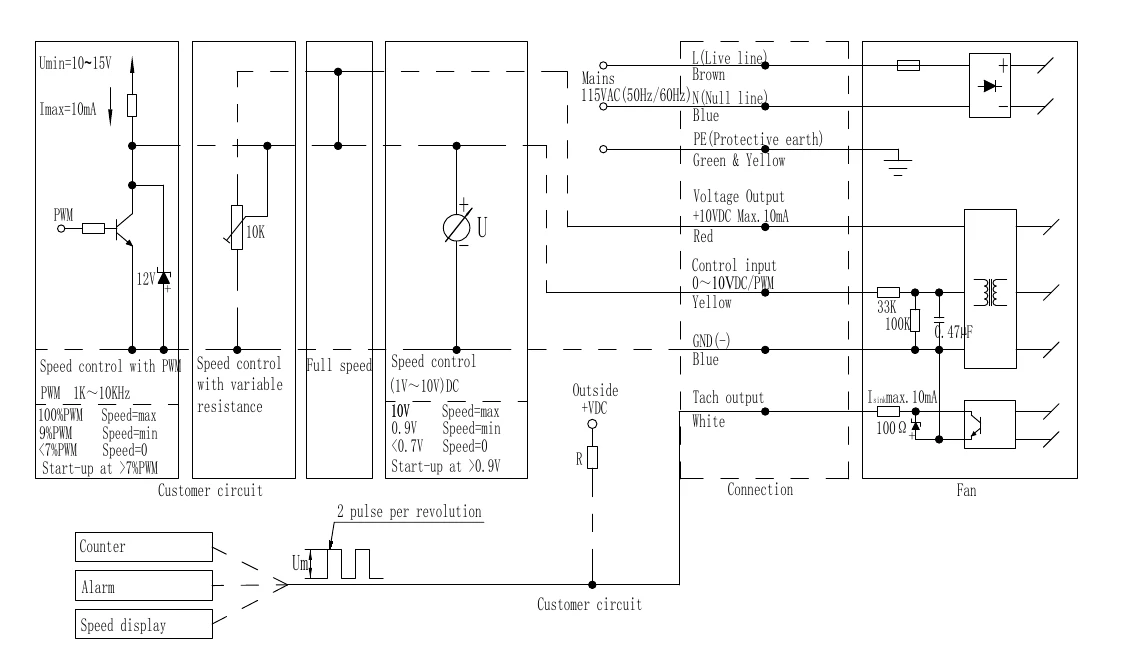

Electrical Connection
| Line | Connection | Designation | Colour | Function / Assignment |
|---|---|---|---|---|
| Power Line | PE | PE | Green / Yellow | Protective earth |
| Power Line | U1 | L | Brown | Power supply, live wire |
| Power Line | U2 | N | Blue | Power supply, neutral wire |
| Control Line | U4 | +10V | Red | Fixed 10 VDC output, max. 10 mA |
| Control Line | U5 | Speed Control | Yellow | 0-10 V / PWM control input |
| Control Line | U6 | Signal Feedback | White | Tach output, 2 pulses per revolution |
| Control Line | U7 | GND | Blue | Reference ground for control interface |
Speed Control Settings
The fan supports full-speed operation, 0-10 VDC voltage control, PWM control from 1 kHz to 10 kHz, and a 10 kOhm potentiometer. For voltage control, the fan starts above 1.0 VDC and stops below 0.5 VDC. For PWM control, the recommended amplitude is 10 VDC.
Note
Connect the power and control lines strictly according to the wiring diagram.
Do not connect the white signal wire directly to the red signal wire or an external DC power supply.
The yellow and red wires may be connected together for full-speed operation.
If the fan does not start, check the speed-control input voltage. Do not touch the impeller or rotor after power is applied.
The fan takes several seconds to start. Keep clear of the impeller and rotor while energized or operating at low speed.
Before power-on, confirm that the motor is installed securely and the rotor turns without collision, interference or jamming.
Do not pull the power cable, drop or impact the motor, or flush the motor with water.
The motor must not be operated without an impeller or load.
Store repackaged units in a clean, ventilated warehouse at -40 deg C to +80 deg C and relative humidity not exceeding 95%, without corrosive gas and at least 15 cm above the ground.
Install the fan out of children's reach.
Life and Maintenance, Warranty
The design life is 50,000 hours, limited by ball-bearing life at 40 deg C. Actual service life varies with temperature, humidity, installation method, fan load and other operating conditions.
Clean and maintain the fan every 3-6 months as appropriate for the operating environment.
The complete unit carries a two-year warranty from the delivery date for failures caused by product quality. Damage caused by improper disassembly, handling, man-made damage, natural disasters or force majeure is excluded.
