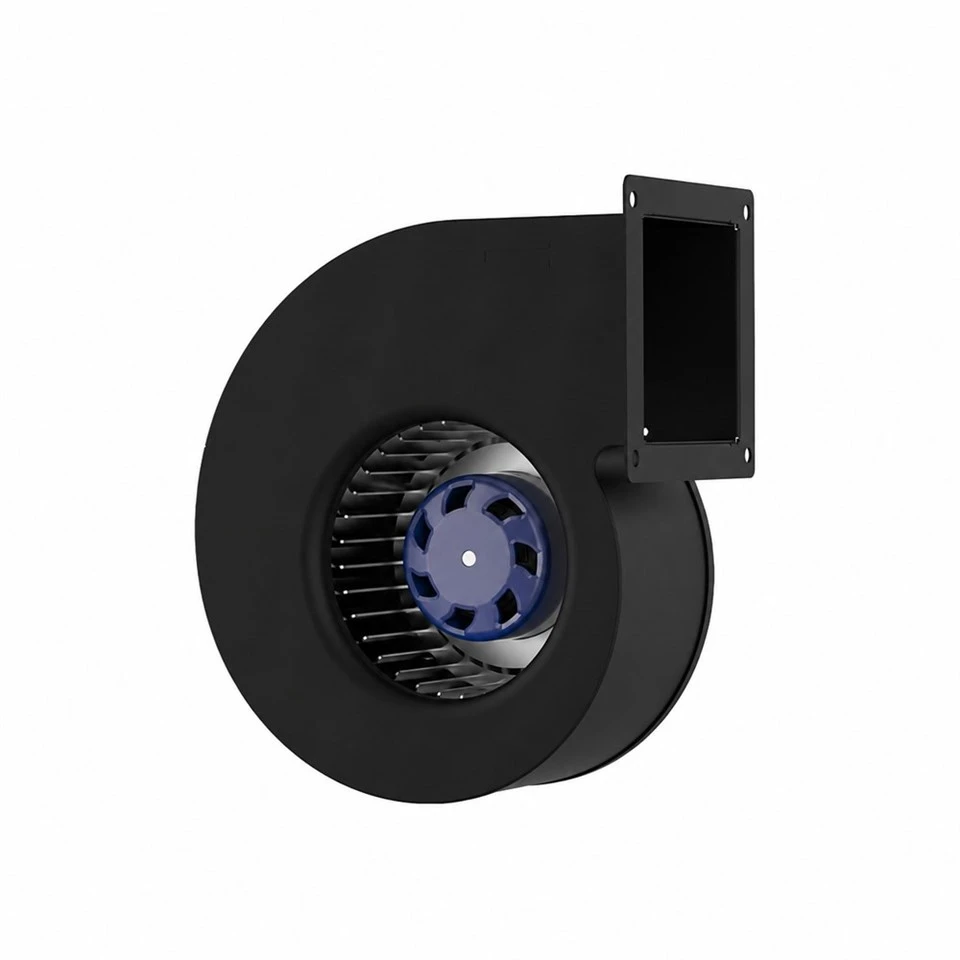

Basic Info
| Model No. | SC-F120B-EC-02 | Fan Type | EC Single Inlet Centrifugal Blower |
| Impeller Type | Forward-curved centrifugal impeller | Application | Ventilation and equipment cooling |
| Trademark | Blauberg | HS Code | 8414593000 |
Rated Data
| Rated Voltage | 115 VAC | Phase | 1~ |
| Frequency | 50/60 Hz | Rated Speed | 3800 RPM |
| Maximum Input Power | 115 W | Maximum Input Current | 1.8 A |
| Maximum Airflow | 430 m³/h | Maximum Static Pressure | 570 Pa |
| Sound Level | 63 dB(A) | Ambient Temperature | -25°C to +60°C |
Technical Description
| Fan Size (L x W x H) | 171 x 180 x 115 mm | Rotation | Clockwise, viewed toward rotor |
| Degree of Protection | IP55 | Insulation Class | Class B |
| Operating Mode | S1 | Bearing | Ball bearing |
| Cable Length | 500 +/-20 mm | Operating Humidity | 5%-90% RH |
| Control Input | 0-10 VDC / PWM, maximum PWM amplitude 10 VDC | Voltage Output | 10 VDC |
| Protection Functions | Locked-rotor protection, overvoltage protection and overcurrent protection | ||
| Conformity | CCC, CE, RoHS | Release Date | 28 November 2022 |
Product Application
| 1 | Charging Column | 9 | Equipment Cooling Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Ventilation Unit Project |
| 3 | FFU Project | 11 | AHU Project |
| 4 | Computer Room Cooling | 12 | Air Purifier Project |
| 5 | Rail Transit Air-Conditioning | 13 | Heat Exchanger Project |
| 6 | Electrical Appliances | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Cooling Project |
| 8 | Ventilation Equipment Project | 16 | Industrial Cooling System |
Air Performance
Air performance values are measured under specified test conditions and may vary with installation conditions.

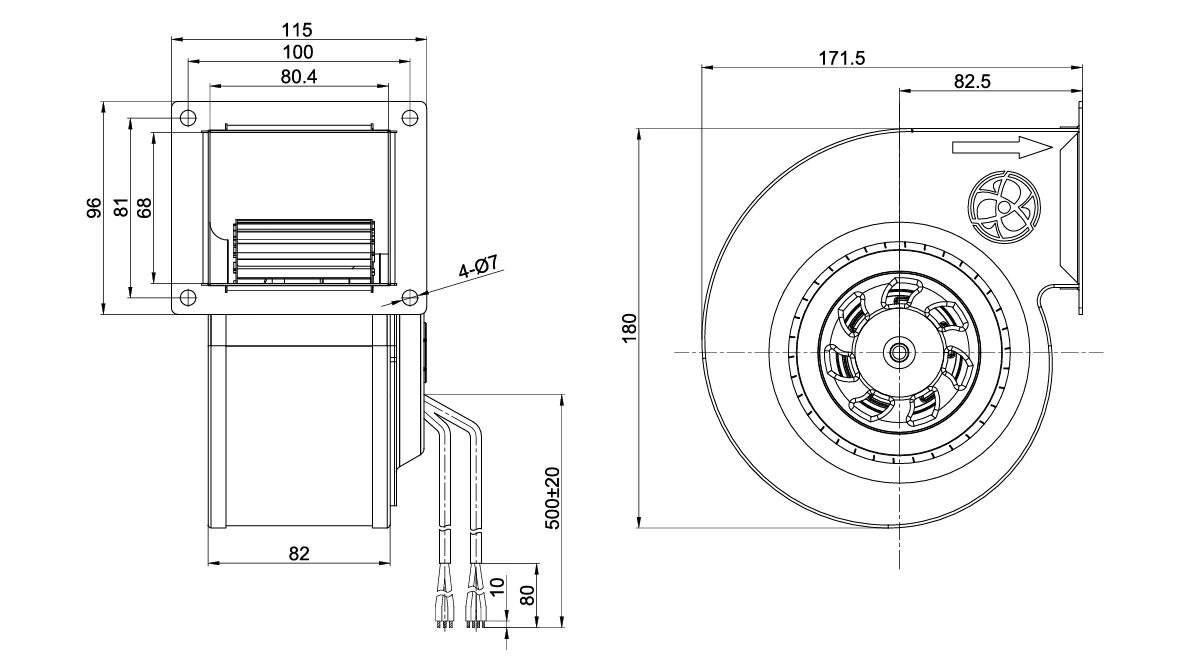

Overall Dimensions
Electrical Connection
| Line | Connection | Designation | Colour | Function |
|---|---|---|---|---|
| Power Line | PE | PE | Green / Yellow | Protective earth |
| Power Line | U1 | L | Brown | Live wire |
| Power Line | U2 | N | Blue | Neutral wire |
| Control Line | U4 | +10V | Red | Control power output |
| Control Line | U5 | Speed Control | Yellow | 0-10 V / PWM input |
| Control Line | U6 | Signal Feedback | White | Tach signal output |
| Control Line | U7 | GND | Blue | Control ground |
Speed Control Settings
The blower supports 0-10 VDC and PWM speed control. The maximum recommended PWM amplitude is 10 VDC. Connect all power and control wires strictly according to the wiring diagram.
Note
- Connect the power and control lines in the order shown in the wiring diagram to prevent damage to the fan.
- Do not connect the white signal wire directly to the red signal wire or an external DC power supply.
- If the fan does not operate after power-on, check the speed-control input voltage and wiring. Do not touch the impeller or rotor while energized.
- The fan takes several seconds to start. Keep clear of the impeller and rotor while energized or operating at low speed.
- The fan must be used only by persons with suitable knowledge or under the guidance of responsible safety personnel. Keep children away from the product.
- If the power cable is damaged, it must be replaced by the manufacturer.
- The motor is part of the fan and must not be operated without an impeller or load.
- After unpacking, repackage the product if it must be stored. Store it in a clean, ventilated warehouse at -40°C to +80°C and relative humidity not exceeding 95%, without corrosive gas, at least 15 cm above the ground.
- Read this technical specification carefully before use.
