Suzhou Blauberg Motoren Technology Co., Ltd. is one of the leading manufacturers and suppliers of blauberg se-f140b-ec-00 140mm dc single inlet centrifugal blower in China. Welcome to buy bulk high quality customized products made in China here and get quotation from our factory. For price consultation, contact us.
Basic Info

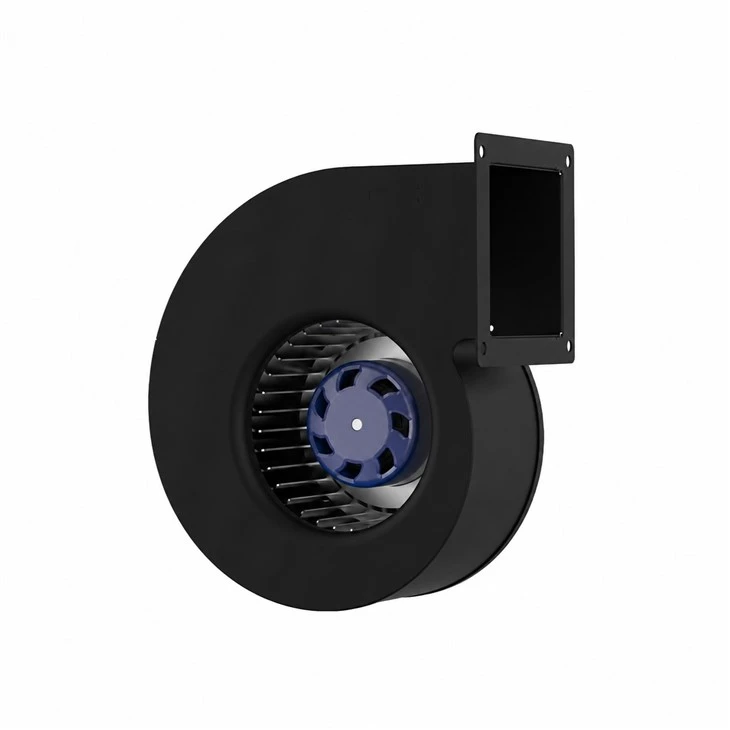

The Blauberg SE-F140B-EC-00 is a compact 140 mm DC single inlet centrifugal blower designed for reliable airflow in ventilation, cooling and equipment applications. Its energy-efficient EC motor supports precise external speed control.
| Model | SE-F140B-EC-00 | Rated Voltage | 48 VDC |
| Maximum Airflow | 440 m³/h | Maximum Static Pressure | 755 Pa |
| Overall Dimensions | 220.5 × 246.9 × 130 mm | Speed Control | 0–10 V / PWM |
| Motor Type | EC brushless motor | Speed Feedback | FG output |
Technical Description
This single inlet centrifugal blower combines a high-efficiency centrifugal impeller with a brushless EC motor for continuous-duty operation. It supports 0–10 V or PWM speed control and provides an FG speed-feedback signal for system monitoring.
| Motor Type | EC brushless motor | Degree of Protection | IP55 |
| Insulation Class | Class B | Duty Type | S1 continuous duty |
| Bearing Type | Ball bearing | Speed Control | 0–10 V / PWM |
| Speed Feedback | FG output | Lead Wire Length | 500 mm standard |
| Electrical Connection | Refer to connection drawing | Rated Voltage | 48 VDC |
| Maximum Airflow | 440 m³/h | Maximum Static Pressure | 755 Pa |
Product Application
| 1 | Charging Column | 9 | Equipment Cooling Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Ventilation Unit Project |
| 3 | FFU Project | 11 | AHU Project |
| 4 | Computer Room Cooling | 12 | Air Purifier Project |
| 5 | Rail Transit Air-Conditioning | 13 | Heat Exchanger Project |
| 6 | Electrical Appliances | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Cooling Project |
| 8 | Ventilation Equipment Project | 16 | Industrial Cooling System |

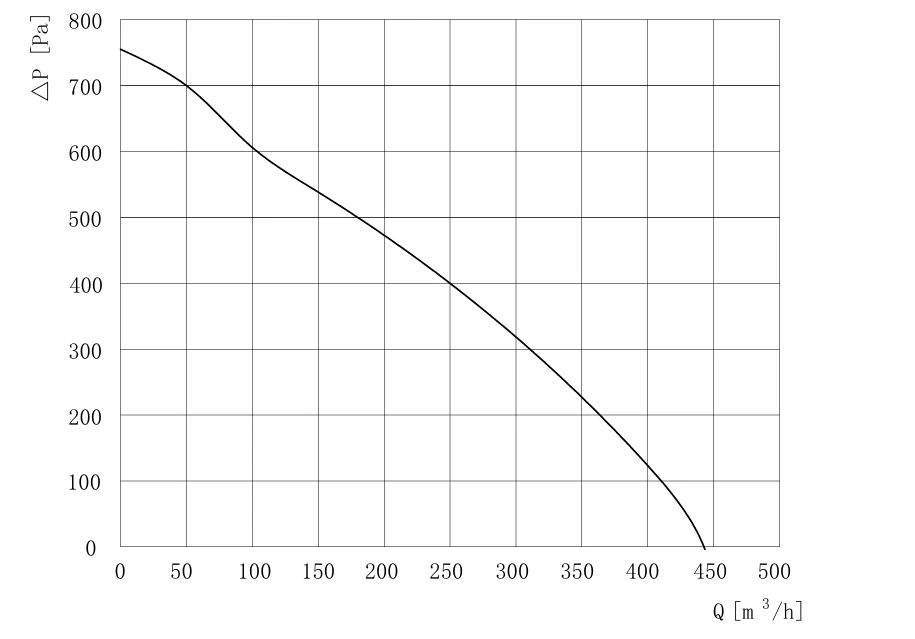

Air Performance

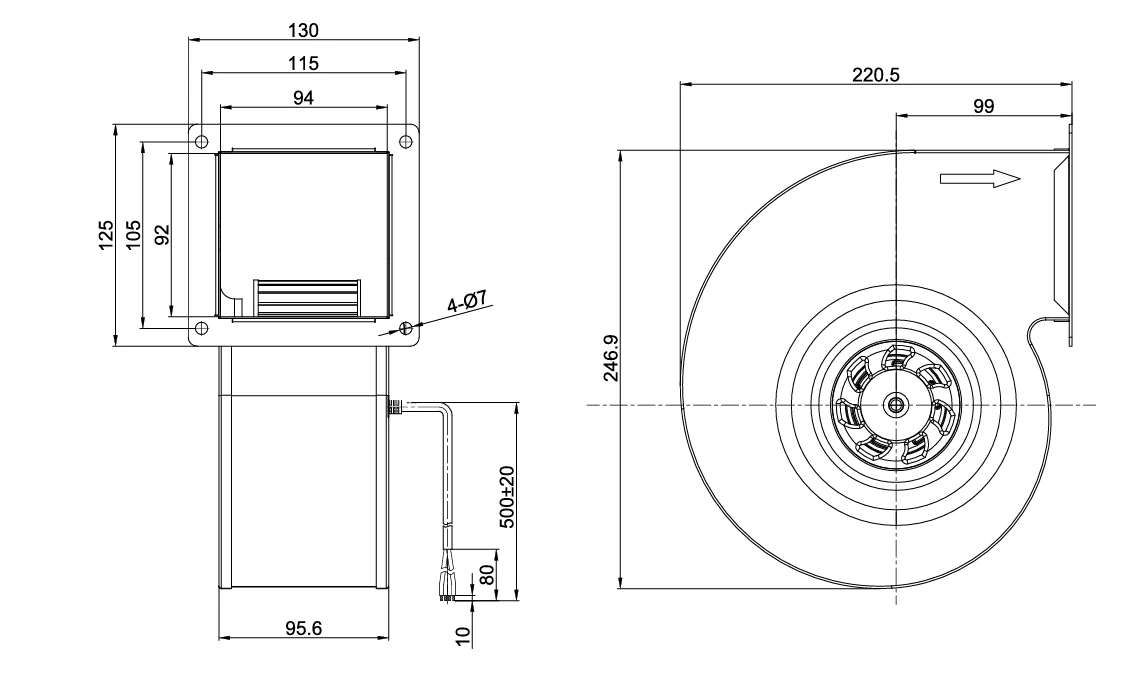

Overal Dimmensions

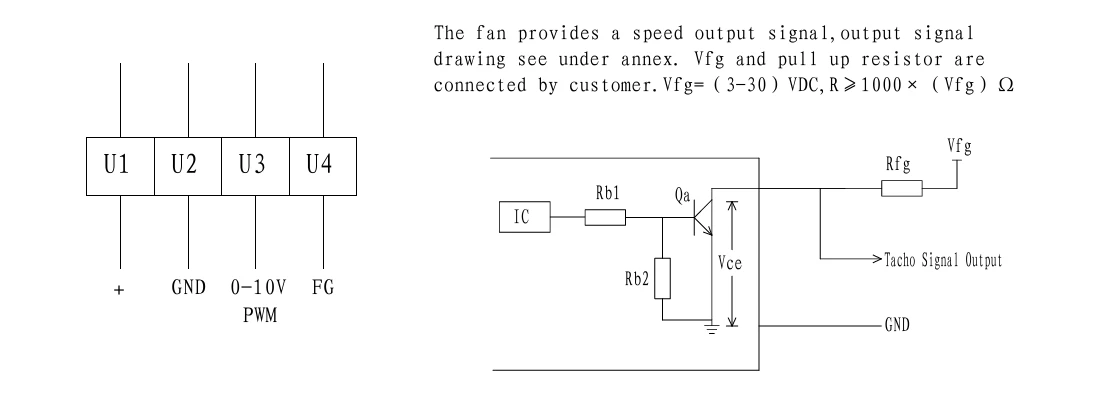

Electrical Connection
Download
SE-F140B-EC-00 Technical Specification PDF
