Suzhou Blauberg Motoren Technology Co., Ltd. is one of the leading manufacturers and suppliers of blauberg sl-f140c-ec-00 140mm ec single inlet centrifugal blower in China. Welcome to buy bulk high quality customized products made in China here and get quotation from our factory. For price consultation, contact us.
Basic Info
| Model | SL-F140C-EC-00 | Product Type | EC Single Inlet Centrifugal Blower |
| Brand | Blauberg | Place of Origin | Germany |
| Certification | CCC, CE | Compliance | RoHS |
Rated Data
| Phase | 1~ | Rated Voltage | 230 VAC (184-276 VAC) |
| Frequency | 50/60 Hz | Rated Speed | 1900 RPM |
| Maximum Input Power | 85 W | Maximum Input Current | 0.62 A |
| Sound Level | 61 dBA | Ambient Temperature | -25 to +60 deg C |
Technical Description
| Motor Type | External rotor EC motor | Motor Size | 72 |
| Weight | 2.15 kg | Packaging | 72 PCS/Pallet |
| Fan Dimensions | 246.9 x 220.5 x 130 mm | Impeller Material | Plastic |
| Number of Blades | 38 | Air Flow Direction | All around |
| Rotation | Clockwise, viewed toward rotor | Rotor Surface | Blue plastic spraying |
| Protection Class | IP55 | Insulation Class | Class B |
| Duty / Bearing | S1 / Ball bearing | Installation Position | Any |
| Storage Temperature | -40 to +80 deg C | Humidity | 5%-90% RH; storage 5%-95% RH |
| Technical Features | 10 VDC output; 0-10 VDC/PWM control; locked rotor, thermal, excessive/low voltage, overcurrent and soft start protection | ||
| Cable Length | 500+/-20 mm | Dielectric Strength | 1800 VAC / 50 Hz, 1 s |
Product Application
| 1 | Charging Column | 9 | Equipment Cooling Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Ventilation Unit Project |
| 3 | FFU Project | 11 | AHU Project |
| 4 | Computer Room Cooling | 12 | Air Purifier Project |
| 5 | Rail Transit Air-Conditioning | 13 | Heat Exchanger Project |
| 6 | Electrical Appliances | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Cooling Project |
| 8 | Ventilation Equipment Project | 16 | Industrial Cooling System |

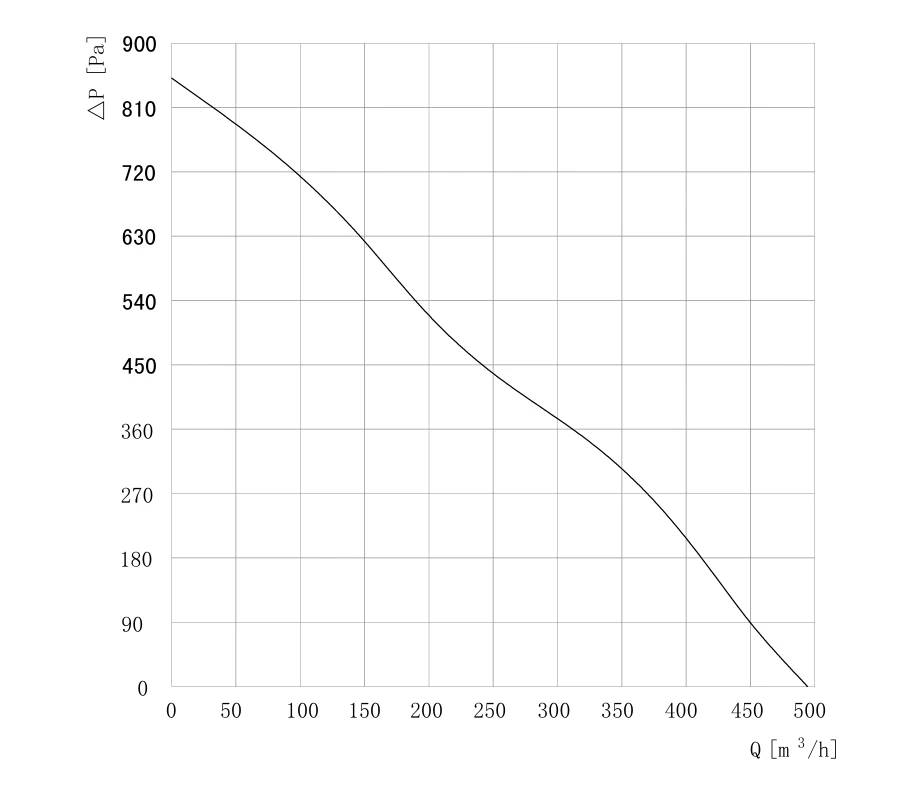

Air Performance

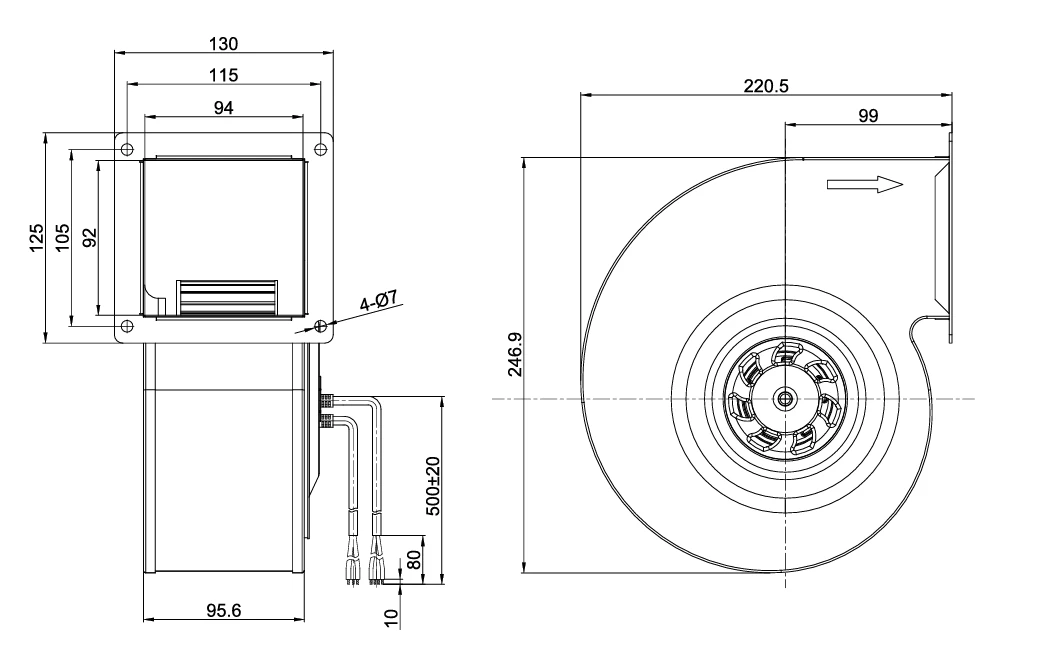

Overall Dimensions
Electrical Connection
| Terminal | Wire / Function | Description |
|---|---|---|
| PE | Green/Yellow | Protective Earth |
| U1 / L | Brown | Live |
| U2 / N | Blue | Neutral |
| U4 / +10V | Red | External output +10VDC |
| U5 / 0-10V PWM | Yellow | Speed control, maximum 10V |
| U6 / FG | White | Speed feedback, 2 pulses/revolution |
| U7 / GND | Blue | Signal ground |
Download
SL-F140C-EC-00 Product Specification N.pdf
