Basic Info
| Model | BC-B310D-EC-07 | Fan Type | Backward Curved Centrifugal Fan |
| Nominal Diameter | 310 mm | Motor Type | External Rotor EC Motor |
| Phase | Single Phase | Rated Voltage | 115 VAC |
| Frequency | 50/60 Hz | Rated Speed | 1500 RPM |
| Maximum Input Power | 175 W | Maximum Input Current | 2.6 A |
| Sound Level | 63 dB(A) | Ambient Temperature | -25 to +60 °C |
Technical Description
| Model | BC-B310D-EC-07 | Dimensions | 316 × 316 × 175 mm |
| Motor | External rotor EC motor | Impeller Material | Metal |
| Direction of Rotation | Clockwise viewed toward rotor | Rotor Surface | Plastic spraying |
| Degree of Protection | IP55 | Insulation Class | B |
| Operating Mode | S1 | Bearing | Ball bearing |
| Motor Protection | Locked rotor protection; thermal protection; under- and over-voltage protection; overcurrent protection; soft start | Cable Length | 500 ± 20 mm |
| Humidity Range | 5%–90% RH | Axial Impeller Deviation | ≤ 1 mm |
| Radial Impeller Deviation | ≤ 1 mm | Certification | CCC, RoHS |
| Release Date | 11 February 2022 | Weight | Not specified |
Product Application
| 1 | Charging Column | 9 | Equipment Cooling Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Ventilation Unit Project |
| 3 | FFU Project | 11 | AHU Project |
| 4 | Computer Room Cooling | 12 | Air Purifier Project |
| 5 | Rail Transit Air-Conditioning | 13 | Heat Exchanger Project |
| 6 | Electrical Appliances | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Cooling Project |
| 8 | Ventilation Equipment Project | 16 | Industrial Cooling System |

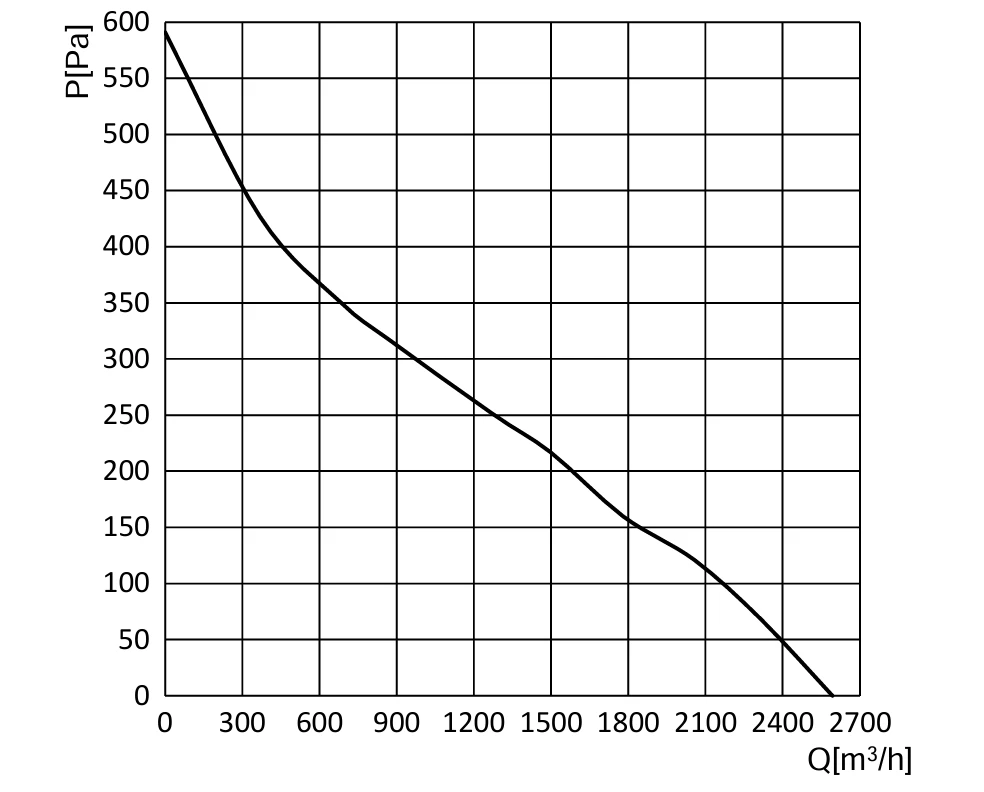

Air Performance

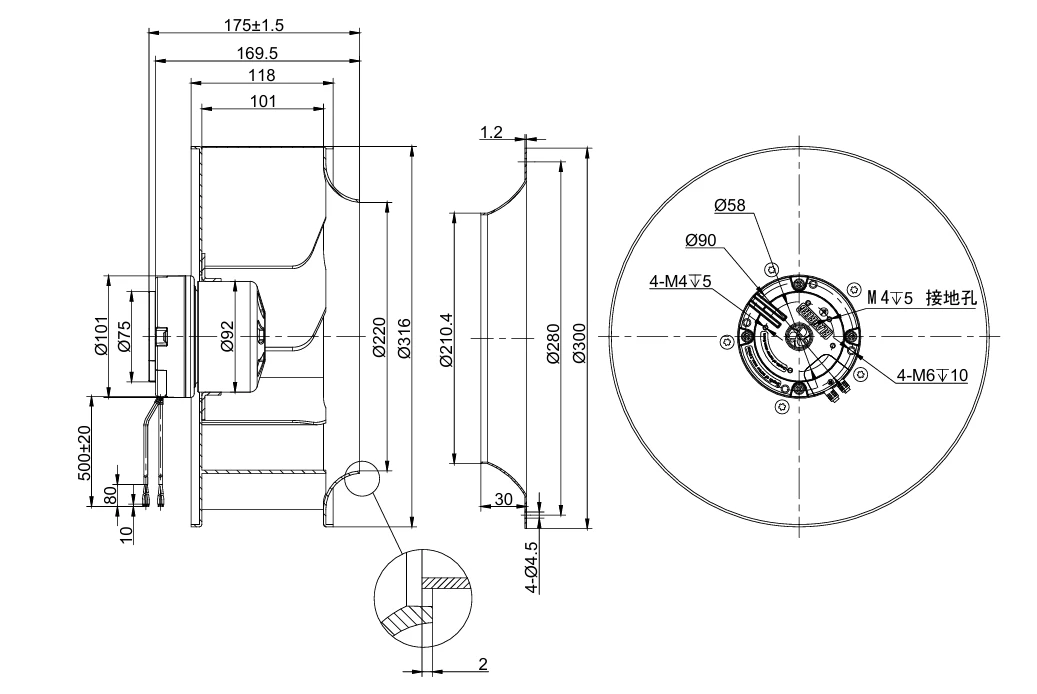

Overall Dimensions
Electrical Connection
| Line | Connection | Colour | Function | |
| Power Line | PE | Green Yellow | Protective Earth | |
| U1 | L | Brown | Live Wire | |
| U2 | N | Blue | Neutral Wire | |
| Control Line | U4 | +10V | Red | Voltage +10V |
| U5 | Speed Control | Yellow | 0~10V & PWM Compatible Line | |
| U6 | Signal Feedback | White | RPM Output Signal Line | |
| U7 | GND | Blue | Control Line Ground | |
Download
Download BC-B310D-EC-07 Product Specification
