The Blauberg GL-B310B-EC-05 is a 230 VAC EC backward-curved centrifugal plug fan with a support frame and a seven-blade PP+GF impeller. It operates at a nominal speed of 2760 RPM and supports 0-10 VDC or PWM speed control, tachometer feedback, a status relay and RS485 Modbus communication.
| Model | GL-B310B-EC-05 | Product Type | EC Backward-Curved Centrifugal Plug Fan |
| Motor | M3L102-EC-05 | Phase | 1~ |
| Nominal Voltage | 230 VAC | Voltage Range | 184-276 VAC |
| Frequency | 50/60 Hz | Data Method | FA (Free Air) |
| Nominal Speed | 2760 +/-5% RPM | Maximum Input Power | 650 W |
| Maximum Input Current | 3.1 A | Sound Level | 82 dB(A) |
| Ambient Temperature | -25 deg C to +60 deg C | Conformity | CCC, CE, RoHS |

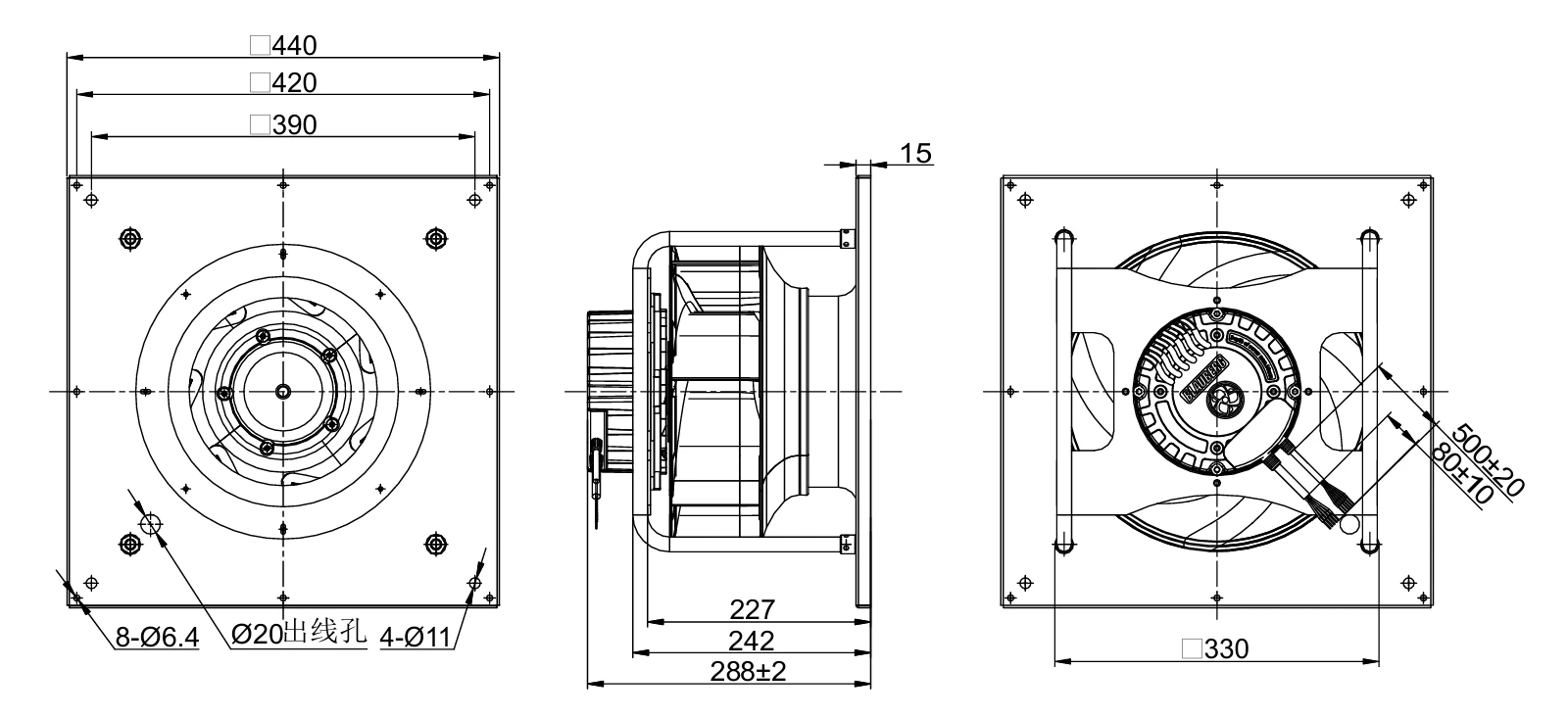

| Dimensions | 440 x 440 x 288 mm | Motor Size | 102 |
| Impeller | PP+GF, 7 blades | Air Flow Direction | All around |
| Rotation | Clockwise, viewed toward rotor | Rotor Surface / Housing | Plastic spraying / Stretch housing |
| Degree of Protection | IP55 | Insulation Class | Class F |
| Duty / Bearing | S1 / Ball bearing | Installation Position | Any |
| Speed Control | 0-10 VDC / PWM, 1-10 kHz PWM | Voltage Output | 10 VDC, maximum 10 mA |
| Communication | RS485 Modbus | Signal Feedback | Tachometer output, 5 pulses per revolution |
| Protection | Locked-rotor, thermal, overvoltage, undervoltage, overcurrent and soft-start protection | Screw Strength Class | 8.8 |
| Cable Length | 500 +/-20 mm | Humidity | 5%-90% RH; storage 5%-95% RH |
| Transport / Storage | -40 deg C to +80 deg C | Cooling | Rotor-side cooling openings |
| Dielectric Strength | 1800 VAC / 50 Hz for 1 s, leakage current not more than 10 mA | Touch Current | Not more than 3.5 mA according to IEC 60990 |
| 1 | Charging Column | 9 | Equipment Cooling Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Ventilation Unit Project |
| 3 | FFU Project | 11 | AHU Project |
| 4 | Computer Room Cooling | 12 | Air Purifier Project |
| 5 | Rail Transit Air-Conditioning | 13 | Heat Exchanger Project |
| 6 | Electrical Appliances | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Cooling Project |
| 8 | Ventilation Equipment Project | 16 | Industrial Cooling System |

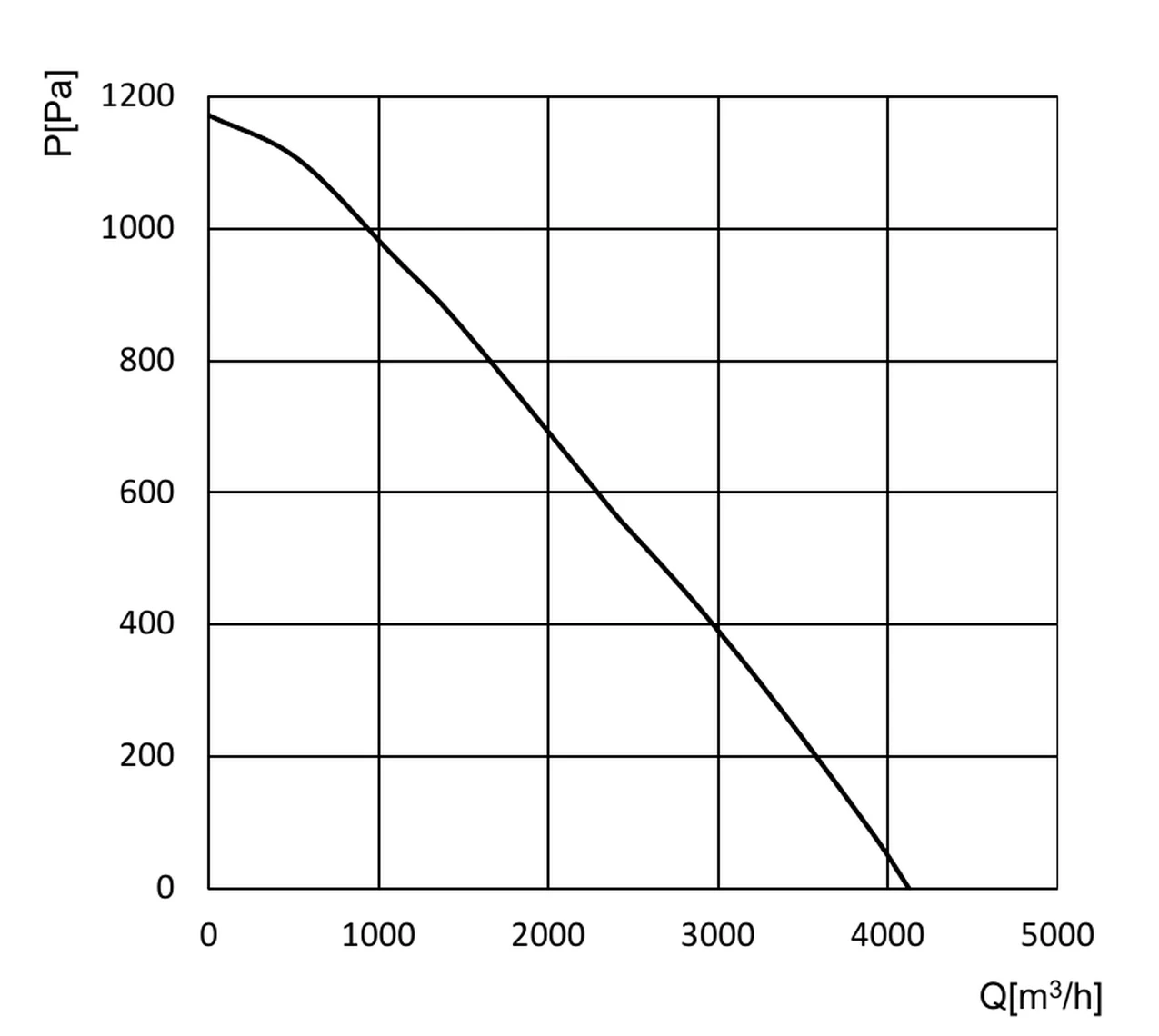

Air performance was measured according to AMCA 210 / GB 1236 installation category A. The curve covers approximately 0-4200 m3/h and 0-1200 Pa. Values apply under the specified measuring conditions and may vary with installation conditions.

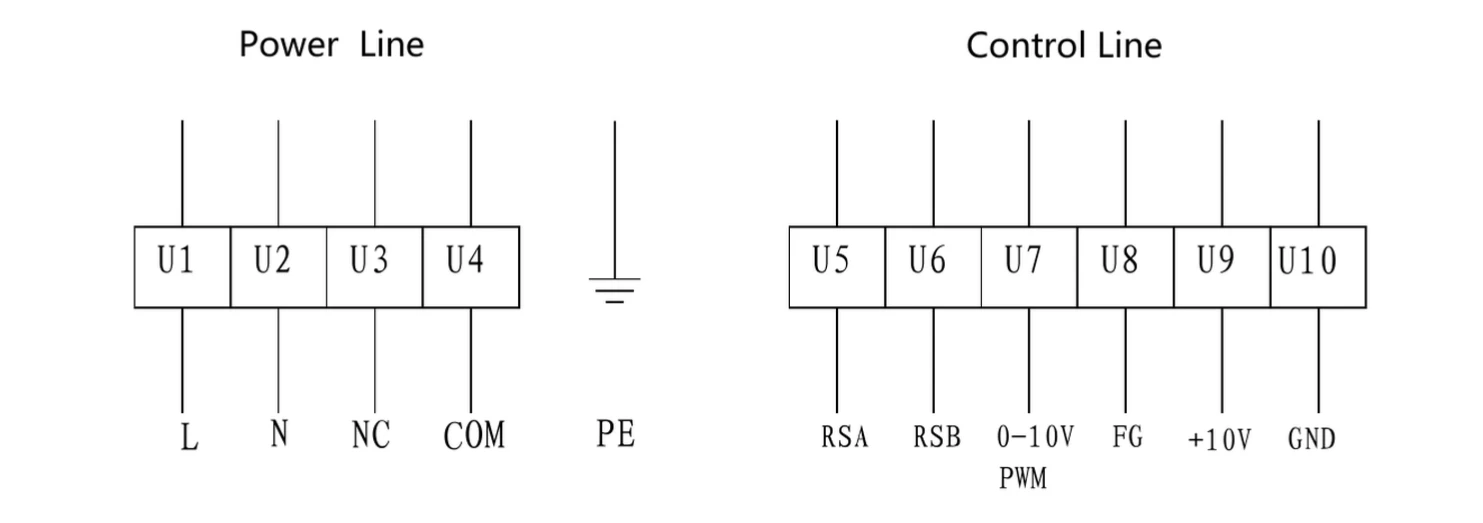

| Line | Connection | Designation | Colour | Function / Assignment |
|---|---|---|---|---|
| Power | PE | PE | Green / Yellow | Protective earth |
| Power | U1 | L | Brown | Live wire, use nameplate voltage range |
| Power | U2 | N | Black | Neutral wire, use nameplate voltage range |
| Power | U3 | NC | White | Status relay normally-closed contact, opens on failure, 250 VAC / 2 A |
| Power | U4 | COM | Gray | Status relay common, 250 VAC / 2 A, isolated |
| Control | U5 | RSA | Brown | RS485 Modbus interface, RSA; SELV |
| Control | U6 | RSB | Gray | RS485 Modbus interface, RSB; SELV |
| Control | U7 | Speed Control | Yellow | 0-10 VDC / PWM input, maximum PWM amplitude 10 V; SELV |
| Control | U8 | Signal Feedback | White | Tachometer output, 5 pulses per revolution; SELV |
| Control | U9 | +10 V | Red | Fixed 10 VDC +/-5% output, maximum 10 mA; SELV |
| Control | U10 | GND | Blue | Reference ground for control interface; SELV |
The speed output uses a customer-provided pull-up resistor. Vfg = 3.3-30 VDC and R must be at least 1000 x Vfg ohms. Speed calculation: n = 60f / a, where n is fan speed, a is pulses per revolution and f is the output waveform frequency.

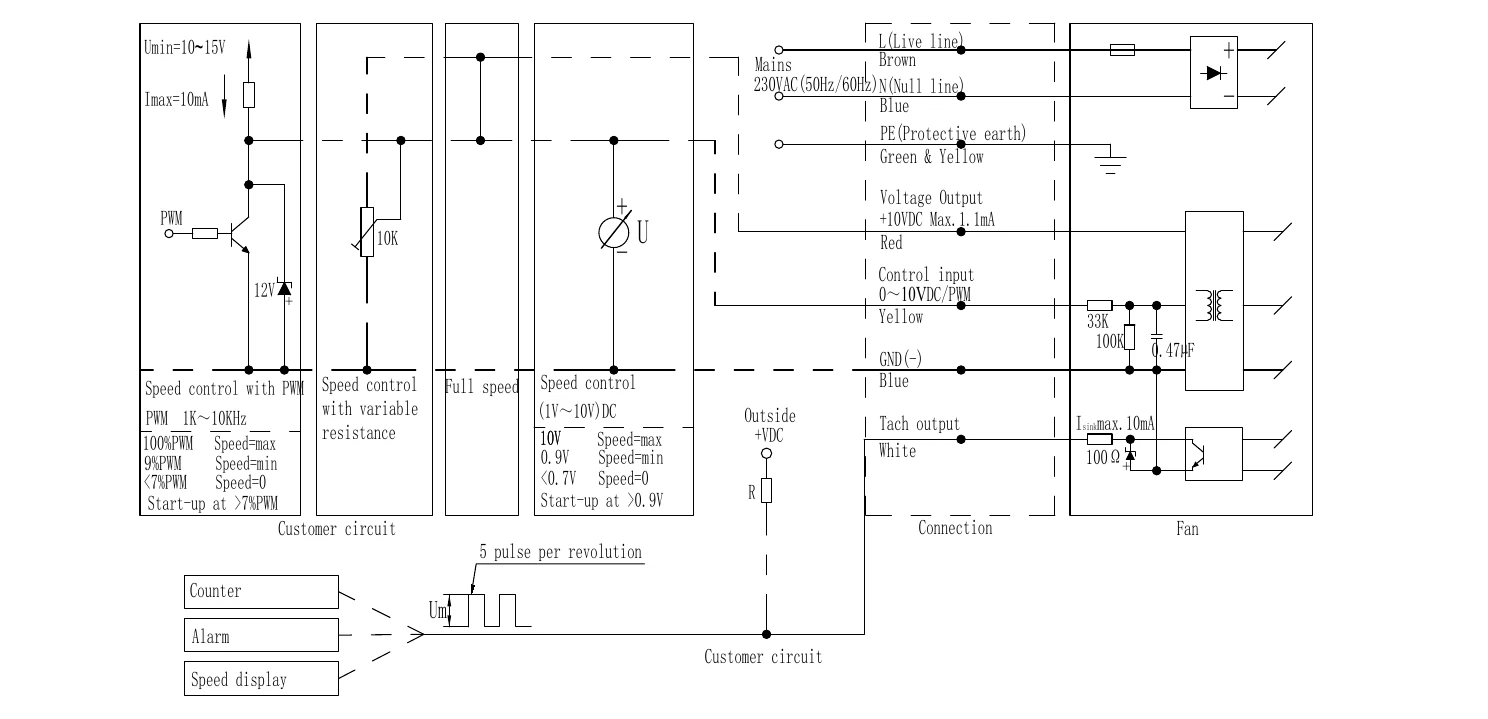

Wiring Label

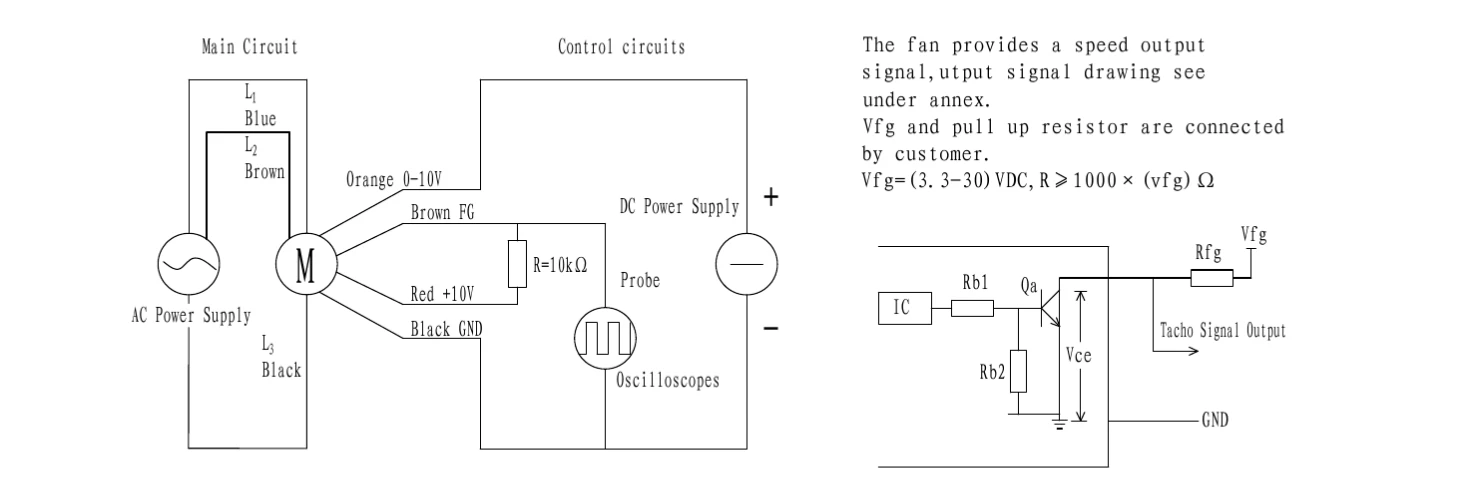

Wiring diagram for signal feedback
Speed Setting
- Full speed: short the red +10 VDC wire to the yellow VSP wire.
- Voltage control: apply 0-10 VDC to yellow VSP and blue GND. The fan starts above 1.0 VDC and stops below 0.5 VDC.
- PWM control: use 1-10 kHz PWM with a recommended amplitude of 10 VDC +/-5%. The fan starts above 10% duty and stops below 5% duty.
- Potentiometer control: connect a recommended 10 kOhm potentiometer between red +10 VDC, yellow VSP and blue GND.
Additional Notes
- Connect the fan power and control lines strictly according to the wiring diagram.
- Do not connect the white signal wire directly to the red signal wire or to an external DC power supply.
- If the fan does not start, check the speed-control input voltage and wiring. Do not touch the impeller or rotor after power is applied.
- The fan takes several seconds to start. Do not touch the impeller or rotor while energized or operating at low speed.
- Before switching on, verify that the motor is installed securely.
- Do not pull the power cable. If it is damaged, it must be replaced by the manufacturer.
- Do not drop or strike the motor.
- Do not flush the motor; reduced insulation can cause leakage and personal injury.
- For applications outside the agreed operating conditions, consult Blauberg and obtain confirmation before use.
- The motor housing can remain hot shortly after operation. Avoid direct contact and use burn protection if necessary.
- During installation, keep the housing clear of debris and clean the interior if necessary.
- Before installation and operation, turn the rotor by hand and confirm that there is no collision, interference or jamming.
- The motor is part of the fan and must not operate without an impeller or load.
- After unpacking, repackage the product for storage. Store it in a clean, ventilated warehouse at -40 deg C to +80 deg C, relative humidity not more than 95%, without corrosive gases, and at least 15 cm above the floor.
- Install the fan out of children's reach and do not allow children to use it.
- The final interpretation of this specification belongs to Blauberg.
Life, Maintenance and Warranty
- The fan design life is 50,000 hours, limited by the ball bearing life at 40 deg C. Actual service life varies with temperature, humidity, installation, load and other environmental conditions.
- Clean and maintain the fan every 3-6 months according to the operating environment.
- The complete fan has a two-year warranty from the purchase date, subject to the delivery date. Product-quality failures are eligible for repair or replacement; damage caused by improper disassembly, handling, human action, natural disaster or force majeure is not covered.
