The Blauberg GL-B310C-EC-07 is a 230 VAC EC backward-curved centrifugal plug fan with a support frame and six-blade aluminum-alloy impeller. It operates at 1900 RPM and supports 0-10 VDC or PWM speed control with tachometer feedback.
Basic Info
| Model | GL-B310C-EC-07 | Product Type | EC Backward-Curved Centrifugal Plug Fan |
| Motor | EC092AC230V230W | Phase | 1~ |
| Nominal Voltage | 230 VAC | Voltage Range | 184-276 VAC |
| Frequency | 50/60 Hz | Data Method | FA (Free Air) |
| Nominal Speed | 1900 +/-5% RPM | Maximum Input Power | 230 W |
| Maximum Input Current | 1.7 A | Sound Level | 79 dB(A) |
| Ambient Temperature | -25 deg C to +60 deg C | Conformity | CCC, CE, RoHS |
Technical Description
| Dimensions | 440 x 440 x 188.3 mm | Motor Size | 92 |
| Impeller | Aluminum alloy, 6 blades | Air Flow Direction | All around |
| Rotation | Clockwise, viewed toward rotor | Rotor Surface / Housing | Blue plastic spraying / Stretch housing |
| Degree of Protection | IP55 | Insulation Class | Class B |
| Duty / Bearing | S1 / Ball bearing | Installation Position | Any |
| Speed Control | 0-10 VDC / PWM, maximum PWM amplitude 10 VDC | Voltage Output | 10 VDC, maximum 10 mA |
| Protection | Locked-rotor, thermal, overvoltage, undervoltage, overcurrent and soft-start protection | Cable Length | 500 +/-20 mm; stackable in 500 mm increments |
| Dielectric Strength | 1800 VAC / 50 Hz for 1 s; leakage current not over 10 mA; no breakdown or flashover | Touch Current | Not over 3.5 mA according to IEC 60990 |
Product Application
| 1 | Charging Column | 9 | Equipment Cooling Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Ventilation Unit Project |
| 3 | FFU Project | 11 | AHU Project |
| 4 | Computer Room Cooling | 12 | Air Purifier Project |
| 5 | Rail Transit Air-Conditioning | 13 | Heat Exchanger Project |
| 6 | Electrical Appliances | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Cooling Project |
| 8 | Ventilation Equipment Project | 16 | Industrial Cooling System |

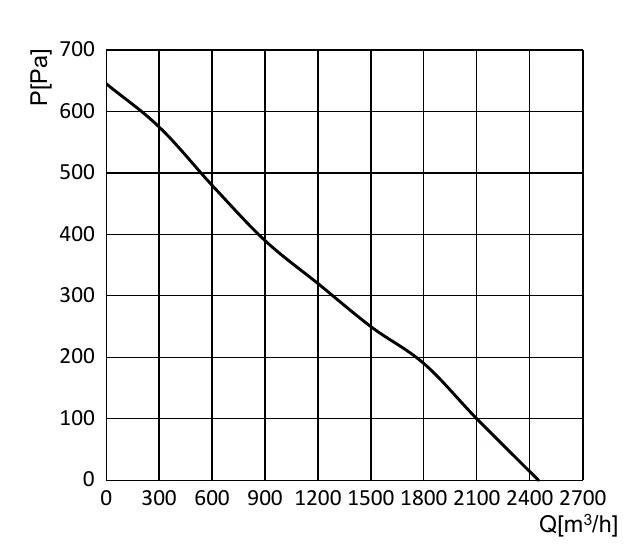

Air Performance

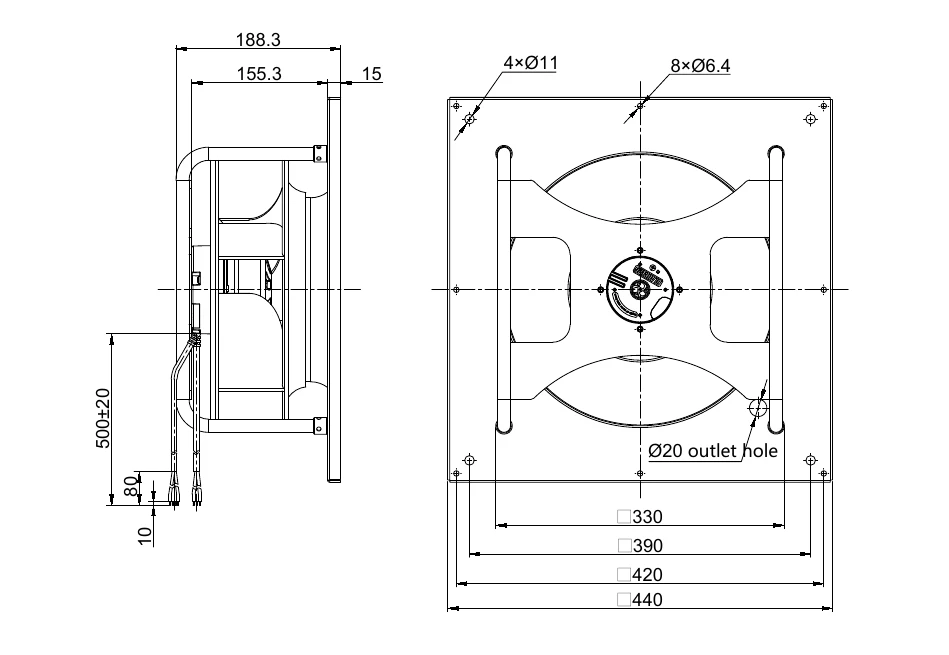

Overall Dimensions
Electrical Connection
Power and control wiring
| Line | Terminal | Color | Function |
| Power | PE | Green/Yellow | Protective earth |
| Power | U1 / L | Brown | Live conductor; supply voltage as specified |
| Power | U2 / N | Blue | Neutral conductor; supply voltage as specified |
| Control | U4 / +10V | Red | 10 VDC fixed output, +/-5%, maximum 10 mA; SELV |
| Control | U5 / 0-10V/PWM | Yellow | 0-10 VDC or PWM input; maximum PWM amplitude 10 V; SELV |
| Feedback | U6 / FG | White | Tachometer output, 5 pulses per revolution; SELV |
| Control | U7 / GND | Blue | Reference ground for control interface; SELV |
Speed setting
- Full speed: short the red +10 VDC wire to the yellow VSP wire.
- 0-10 VDC: the fan starts above 1.0 VDC and stops below 0.5 VDC.
- PWM: 10 VDC +/-5% amplitude and 1-10 kHz. The fan starts above 10% duty and stops below 5%.
- Potentiometer: use a recommended 10 kOhm potentiometer between red +10 VDC, yellow VSP and blue GND.
Tachometer feedback: 5 pulses per revolution. Fan speed n = 60f/a, where f is output frequency and a is pulses per revolution. The customer supplies Vfg and the pull-up resistor; Vfg = 3.3-30 VDC and R must be at least 1000 x Vfg ohms.
Notes
- Connect the power and control lines strictly according to the wiring diagram to prevent fan damage.
- Do not connect the white signal wire directly to the red signal wire or an external DC power supply.
- If the fan does not run after starting, check the speed-control input voltage and wiring. Do not touch the impeller or rotor after power is applied.
- The fan takes several seconds to start. Do not touch the impeller or rotor while energized or operating at low speed.
- Before switching on, confirm that the motor is installed securely.
- Do not pull the power cable. A damaged cable must be replaced by the manufacturer.
- Do not drop or strike the motor.
- Do not flush the motor; reduced insulation performance can cause electrical leakage.
- For applications outside the agreed operating conditions, consult Blauberg and obtain confirmation before use.
- The motor housing may remain hot shortly after the fan stops. Prevent direct contact and burns.
- During installation, keep the housing free of debris and clean the interior if necessary.
- Before installation and operation, rotate the rotor by hand and confirm there is no collision, interference or jamming.
- The motor is part of the fan and must not operate without an impeller or load.
- After unpacking, repackage the product for storage. Store it in a clean, ventilated warehouse at -40 deg C to +80 deg C, below 95% RH, without corrosive gases, and at least 15 cm above the floor.
- Install the fan out of reach of children and do not allow children to use it.
- The final interpretation of this specification belongs to Blauberg.
Life, maintenance and warranty
- Design life is 50,000 hours, limited by the ball-bearing life at 40 deg C. Actual service life depends on temperature, humidity, installation, fan load and other operating conditions.
- Clean and maintain the fan every 3-6 months according to the operating environment.
- The complete fan has a two-year warranty from the purchase date, subject to the delivery date. Product-quality failures are eligible for repair or replacement; damage caused by improper disassembly, handling, human action, natural disaster or force majeure is not covered.
Download
