Basic Info
| Model | DN-F120B-EC-00 | Product Type | EC Dual Inlet Centrifugal Blower |
| Phase | DC | Rated Voltage | 310 VDC |
| Voltage Range | Not specified | Frequency | Not applicable |
| Nominal Speed | 3020 RPM | Max. Input Power | 85 W |
| Max. Input Current | 0.3 A | Sound Level | 66 dB(A) |
| Ambient Temperature | -25 to +60 °C | Certification | CCC, RoHS |
| Protection | IP55 | Insulation Class | Class B |
Technical Description
| Dimensions | 161.5 × 160 × 178 mm | Weight | Not specified |
| Motor Type | External rotor EC motor | Motor Size | Not specified |
| Impeller | Metal | Airflow Direction | Not specified |
| Rotation | Counterclockwise, viewed toward rotor | Housing / Rotor | Housing not specified / powder-coated rotor |
| Mounting Position | Not specified | Operating Mode | S1 continuous duty |
| Bearing | Ball bearing | Cable Length | 500 ±20 mm |
| Humidity | Operation 5%–90% RH; storage ≤95% RH | Storage Temperature | -40 to +80 °C |
| Electrical Safety | Not specified | Control | 0–10 VDC / PWM |
| Motor Protection | Locked rotor, thermal and over/undervoltage protection | Screw Strength | Not specified |
Product Application
| 1 | Charging Column | 9 | Equipment Cooling Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Ventilation Unit Project |
| 3 | FFU Project | 11 | AHU Project |
| 4 | Computer Room Cooling | 12 | Air Purifier Project |
| 5 | Rail Transit Air-Conditioning | 13 | Heat Exchanger Project |
| 6 | Electrical Appliances | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Cooling Project |
| 8 | Ventilation Equipment Project | 16 | Industrial Cooling System |
Air Performance

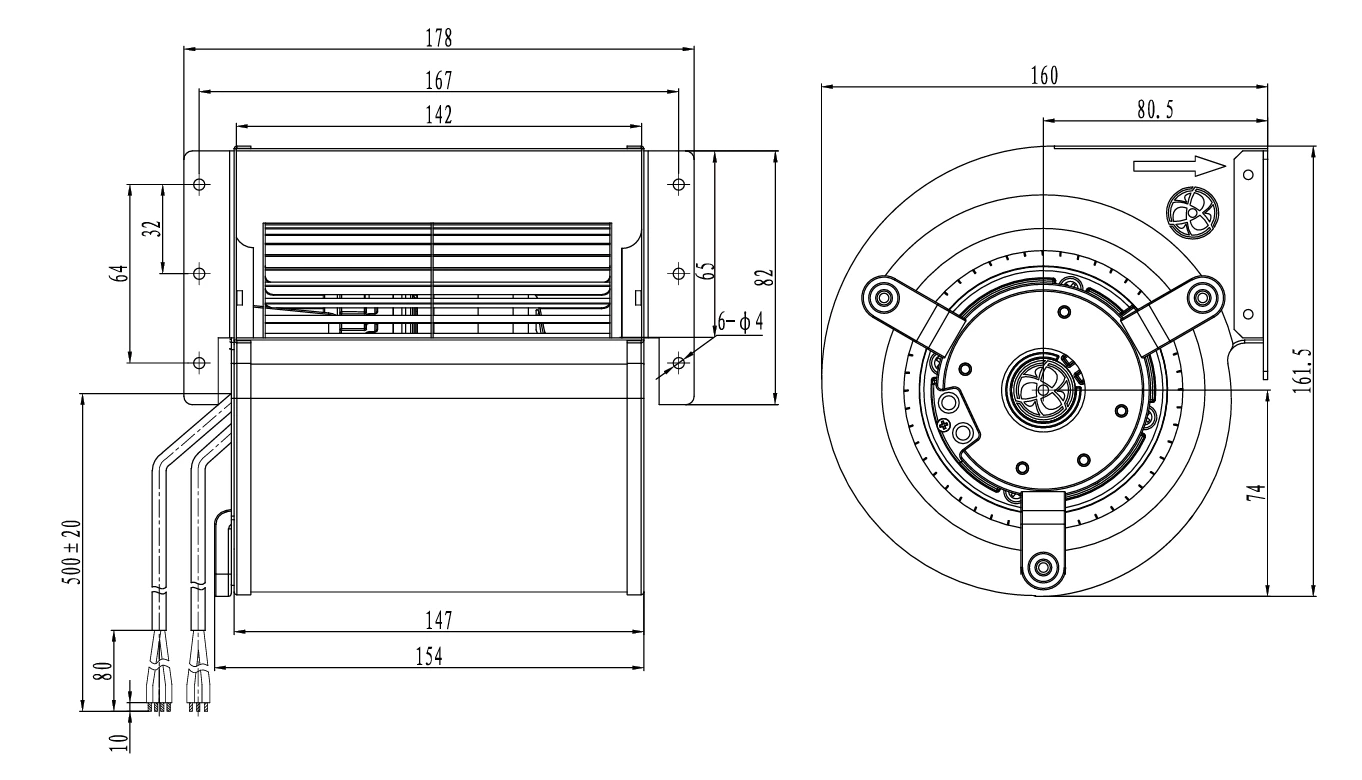

Overall Dimensions
Electrical Connection
Download
DN-F120B-EC-00 Technical Specification PDF
