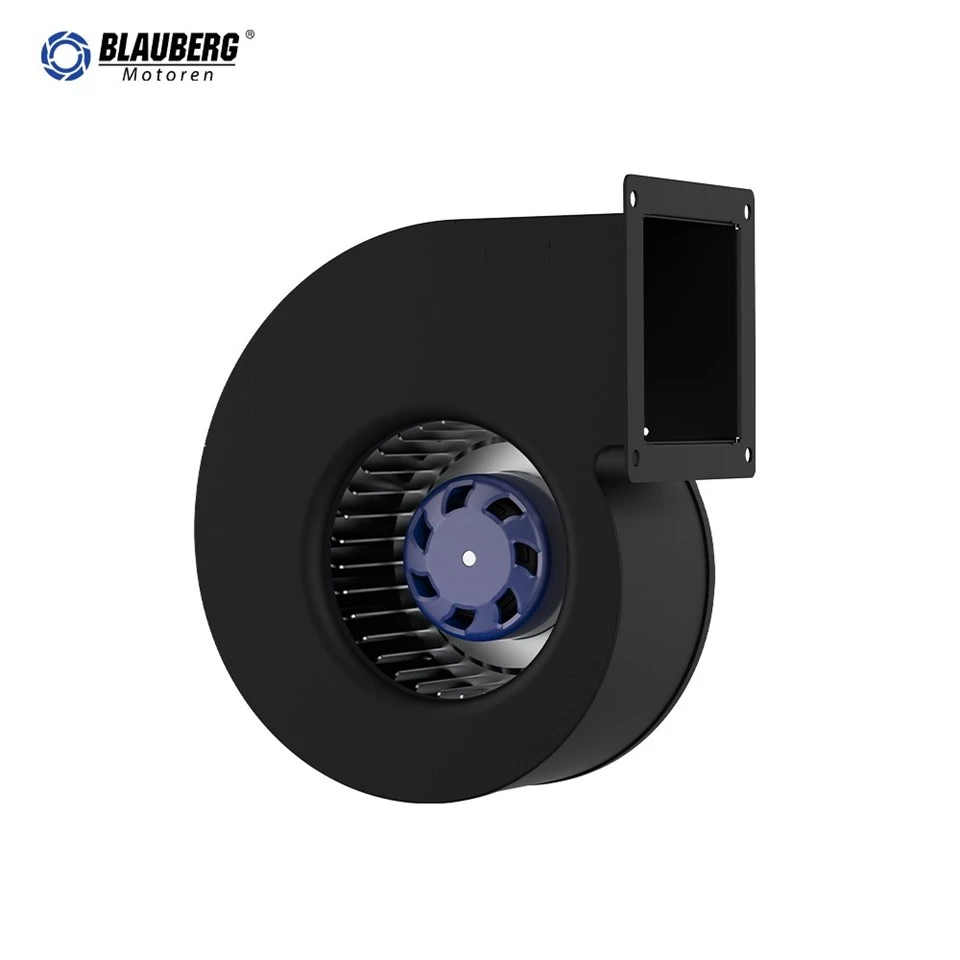

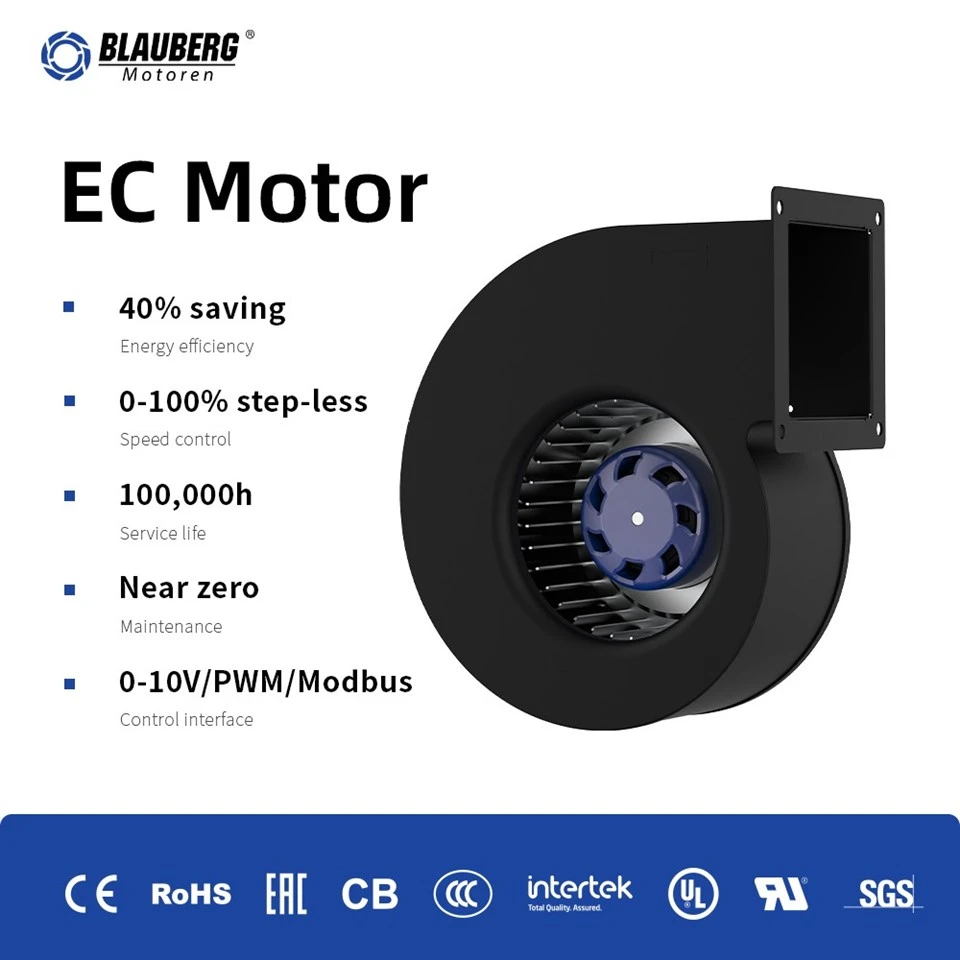

SL-F120B-EC-02 is a compact forward-curved EC single inlet centrifugal blower for ventilation, air-handling and equipment-cooling applications. Its EC motor supports efficient variable-speed operation through 0-10 VDC or PWM control and provides a tachometer feedback output.
Basic Info
| Model | SL-F120B-EC-02 | Type | EC single inlet centrifugal blower |
| Motor | EC072AC230V115W | Housing | Galvanized sheet |
| Impeller | 34 blades | Bearing | Ball bearing |
| Protection / Insulation | IP55 / Class B | Mode of operation | S1 |
Rated Data
| Rated voltage | 230 VAC | Voltage range | 184-276 VAC |
| Frequency | 50/60 Hz | Rated speed | 3800 +/-5% RPM |
| Maximum input power | 115 W | Maximum input current | 0.9 A |
| Sound level | 63 dB(A) | Maximum airflow | 440 m³/h |
| Maximum static pressure | 570 Pa | Weight | 1.75 kg |
| Operating temperature | -25°C to +60°C | Storage temperature | -40°C to +80°C |

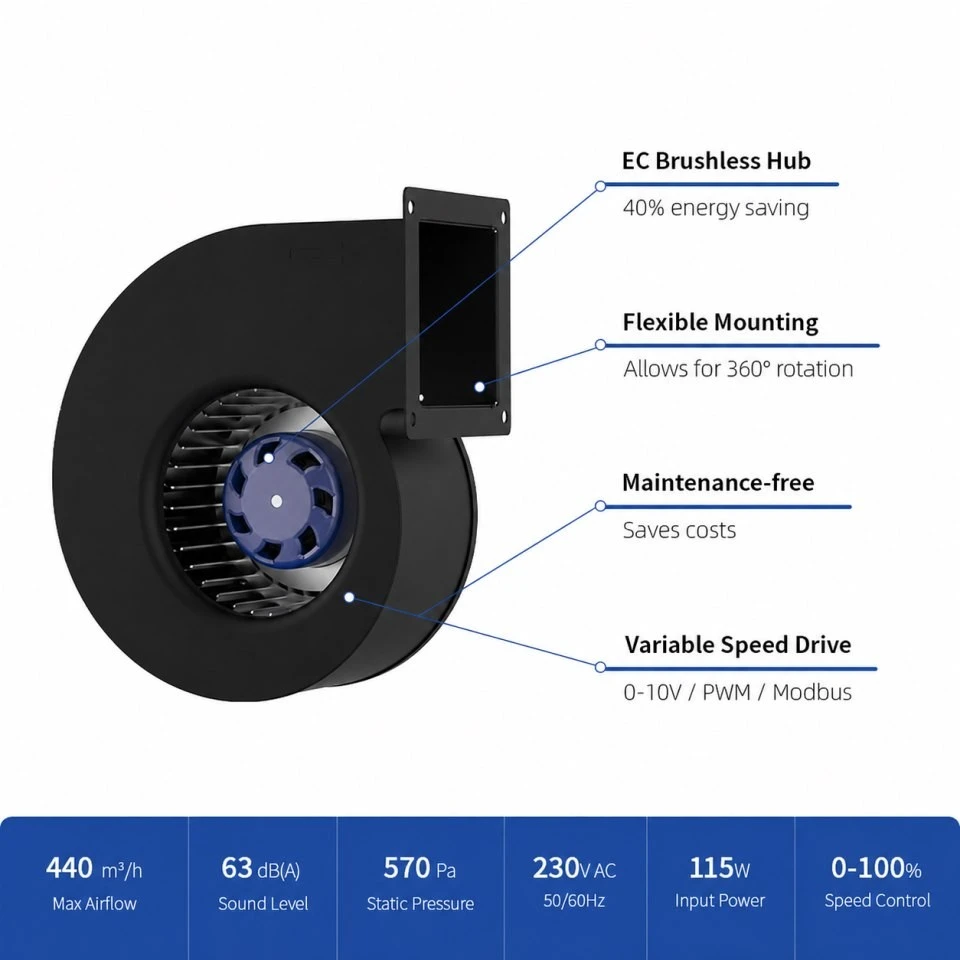

Technical Description
| Motor / Impeller | Integrated electronically commutated motor with forward-curved impeller |
| Direction of Rotation | Clockwise, viewed toward the rotor |
| Motor Protection | Locked-rotor, thermal, over-voltage, under-voltage and over-current protection; soft start |
| Voltage Output | 10 VDC, maximum 10 mA |
| Speed-Control Input | 0-10 VDC or PWM; maximum PWM amplitude 10 V |
| Operating Humidity | 5%-90% RH |
| Storage Humidity | 5%-95% RH |
| Cable Length | 500 +/-20 mm |
| Compliance | CCC, CE and RoHS |
Product Application
| 1. Charging Column | 9. Equipment Cooling Project |
| 2. Kitchen Smoke Exhaust System | 10. Ventilation Unit Project |
| 3. FFU Project | 11. AHU (Air Handling Unit) Project |
| 4. Computer Room Cooling | 12. Air Purifier Project |
| 5. Air-Conditioned Fan for Rail Transit Carriers | 13. Heat Exchanger Project |
| 6. Electrical Appliances | 14. Telecom Container Project |
| 7. FanGrid Project | 15. Data Center Cooling Project |
| 8. Ventilation Equipment Project | 16. Control Cabinet Cooling Project |

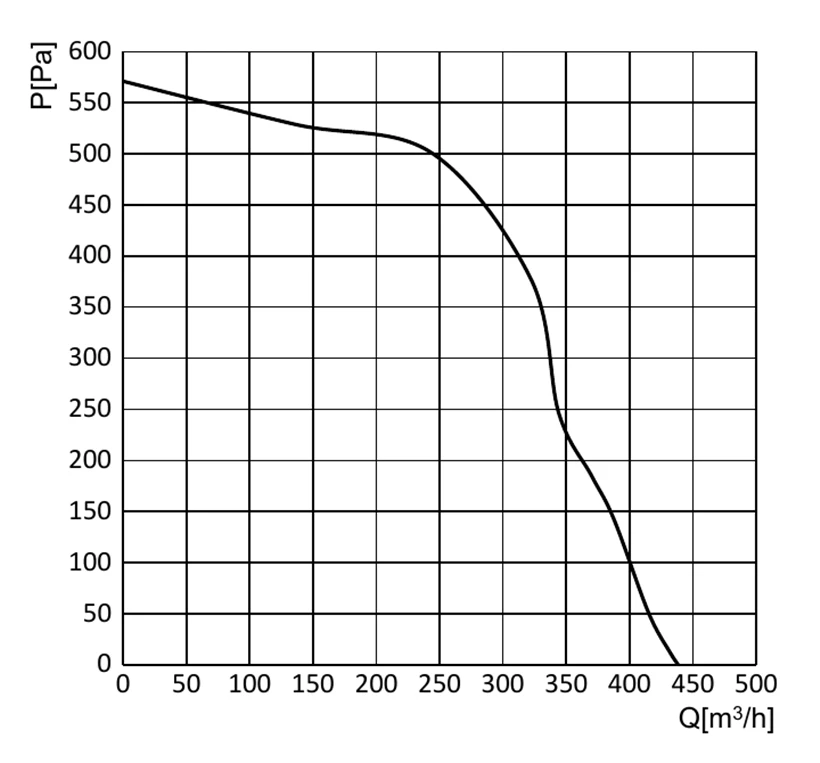

Air Performance
Overall Dimensions

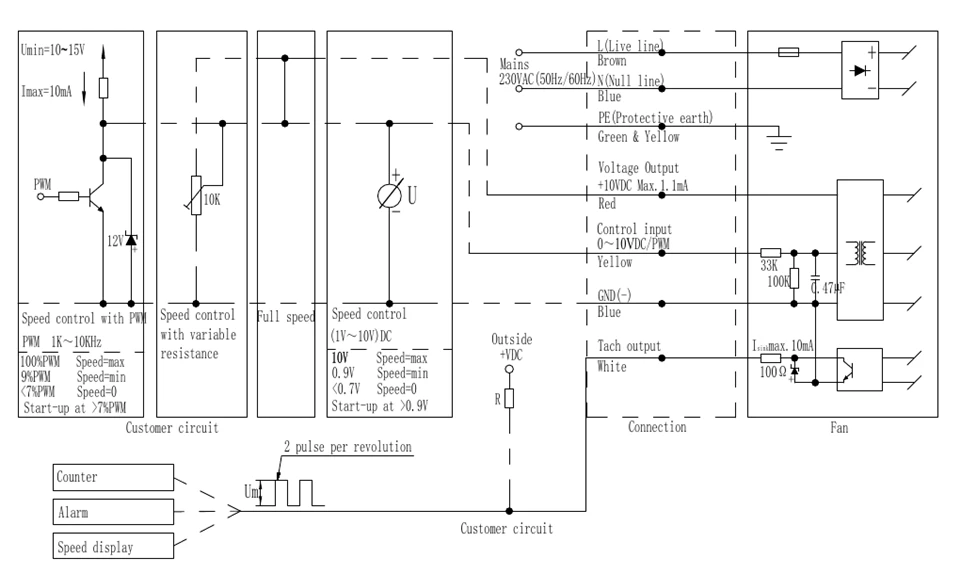

Electrical Connection
| PE | Green/Yellow - Protective earth |
| U1 / U2 | Brown L / Blue N - Power supply |
| U4 | Red +10 VDC fixed voltage output |
| U5 | Yellow 0-10 VDC / PWM speed control input |
| U6 | White tach output, 2 pulses per revolution |
| U7 | Blue GND reference ground |
Speed Control Settings
Speed can be controlled by PWM, a variable resistor or a 1-10 VDC signal. Follow the wiring diagram. Start-up occurs above approximately 0.9 V or 9% PWM.
Note
- Connect the power and control lines strictly according to the wiring diagram.
- Do not connect the white signal wire directly to the red signal wire or an external DC power supply.
- Do not touch the impeller or rotor after the fan is energized.
- Check that the motor is installed securely before applying power.
- Do not pull, drop, crush or flush the motor or cable.
- Before first operation, rotate the rotor by hand and confirm there is no collision, interference or jamming.
- Keep the product away from children.
Life and Maintenance, Warranty
- The fan design life is 50,000 hours under specified conditions and actual life depends on temperature, humidity, installation and load.
- Clean and maintain the fan every 3-6 months according to the environment.
- The complete fan is covered by a two-year warranty for product-quality failures; damage caused by improper handling, unauthorized disassembly, man-made damage or force majeure is excluded.
