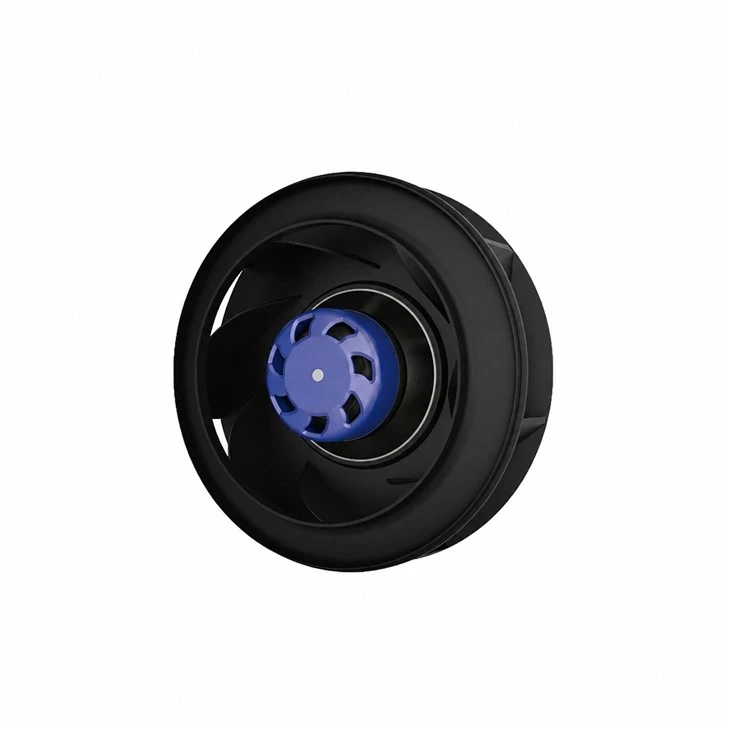

Suzhou Blauberg Motoren Technology Co., Ltd. is one of the leading manufacturers and suppliers of Blauberg 225mm EC Backward Curved Centrifugal Fan in China. Welcome to buy bulk high quality customized products made in China here and get quotation from our factory. For price consultation, contact us.
Basic Info
| Model | 225mm | Product Type | EC Backward Curved Centrifugal Fan |
| Phase | 1~ | Rated Voltage | 115/230 VAC |
| Frequency | 50/60 Hz | Nominal Speed | 3500 +/-5% RPM |
| Max. Input Power | 230 W | Max. Input Current | 3.4/1.7 A |
| Sound Level | 83 dB(A) | Ambient Temperature | -25 deg C to +60 deg C |
| Certification | CCC, CE, RoHS | Release Date | 17 August 2024 |
Technical Description
| Fan Model | Voltage(VAC) | Frequency(Hz) | Speed(RPM) | Power(W) | Current(A) | Sound pres. Level(dB) | Perm.amb Temp.(℃) | Electrical Connection | UL Certificate |
| BC-B225B-EC-00 | 115 | 50/60 | 2400 | 85 | 1.3 | 71 | -25...+60 | E0 | Approved |
| BL-B225B-EC-00 | 230 | 50/60 | 2400 | 85 | 0.65 | 71 | -25...+60 | E0 | Approved |
| BW-B225B-EC-00 | 115/230 | 50/60 | 2400 | 85 | 1.3/0.65 | 71 | -25...+60 | E0 | Processing |
| BC-B225B-EC-02 | 115 | 50/60 | 2700 | 115 | 1.7 | 76 | -25...+60 | E0 | Approved |
| BL-B225B-EC-02 | 230 | 50/60 | 2700 | 115 | 0.85 | 76 | -25...+60 | E0 | Processing |
| BW-B225B-EC-02 | 115/230 | 50/60 | 2700 | 115 | 1.7/0.85 | 76 | -25...+60 | E0 | Processing |
| BC-B225B-EC-01 | 115 | 50/60 | 3250 | 170 | 2.6 | 81 | -25...+60 | E0 | Approved |
| BL-B225B-EC-01 | 230 | 50/60 | 3250 | 170 | 1.3 | 81 | -25...+60 | E0 | Processing |
| BW-B225B-EC-01 | 115/230 | 50/60 | 3250 | 170 | 2.6/1.3 | 81 | -25...+60 | E0 | Processing |
| BC-B225B-EC-07 | 115 | 50/60 | 3500 | 230 | 3.4 | 83 | -25...+60 | E0 | Approved |
| BL-B225B-EC-07 | 230 | 50/60 | 3500 | 230 | 1.7 | 83 | -25...+60 | E0 | Processing |
| BW-B225B-EC-07 | 115/230 | 50/60 | 3500 | 230 | 3.4/1.7 | 83 | -25...+60 | E0 | Processing |
Product Application
| 1 | Charging Column | 9 | Equipment Cooling Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Ventilation Unit Project |
| 3 | FFU Project | 11 | AHU Project |
| 4 | Computer Room Cooling | 12 | Air Purifier Project |
| 5 | Rail Transit Air-Conditioning | 13 | Heat Exchanger Project |
| 6 | Electrical Appliances | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Cooling Project |
| 8 | Ventilation Equipment Project | 16 | Industrial Cooling System |
Air Performance
Air performance measured according to AMCA 210 / GB 1236, installation category A. Maximum airflow is approximately 970 m³/h and maximum static pressure is approximately 600 Pa under the specified test conditions.
Overall Dimensions
Electrical Connection
U1: power supply positive; U2: GND; U3: 0-10 VDC/PWM speed-control input; U4: FG tachometer output.
Download
225mm Backward Curved Centrifugal Fan
